General Specification

COIL SPRING < ECLIPSE >

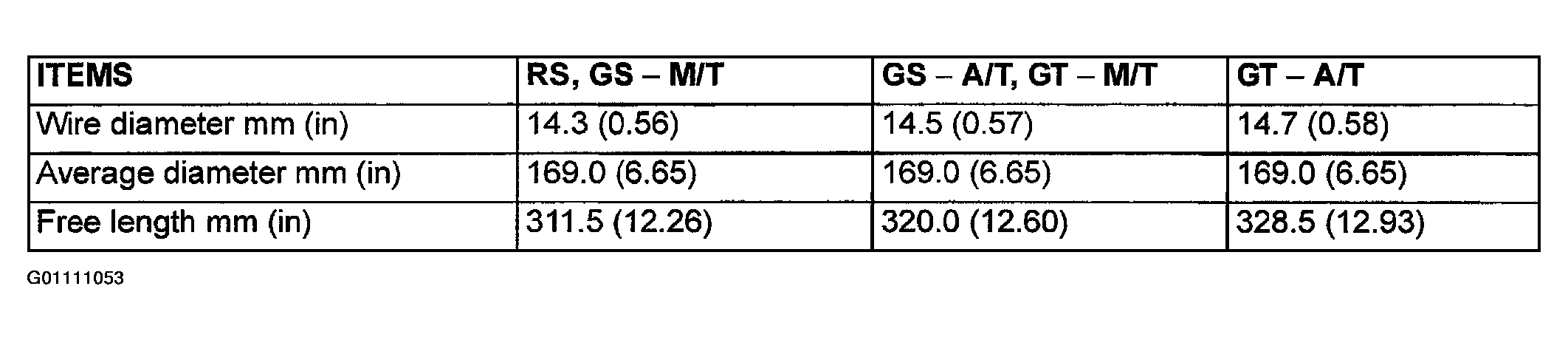

Fig 1: Coil Spring Specifications (Eclipse)
G01111053Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

COIL SPRING < ECLIPSE SPYDER >

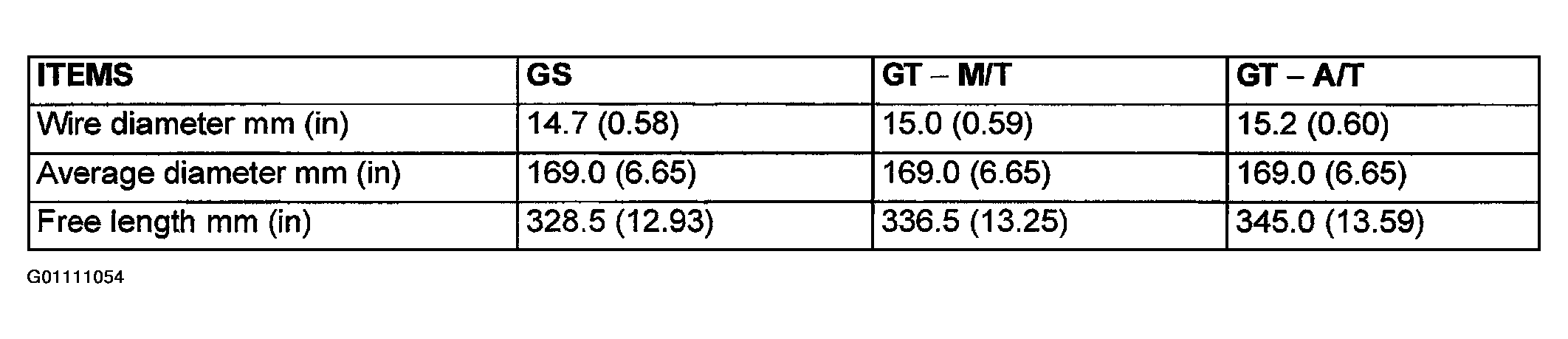

Fig 2: Coil Spring Specifications (Eclipse Spyder)
G01111054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
