Front Wheel Alignment Check And Adjustment

Required Special Tool:

MB991004: Wheel Alignment Gauge Attachment. Measure wheel alignment with alignment equipment on a level surface. The front suspension, steering system, and wheels should be serviced to normal condition before measuring wheel alignment.

TOE-IN

Standard value: 0 +/- 3 mm (0+/- 0.12 inch)

NOTE: If the toe-in is not within the standard value, adjust the toe-in by undoing the clips and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).

NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.
For each one turn of the left and right tie rods, the toe-in will be adjusted by approximately 1°05' (per wheel).

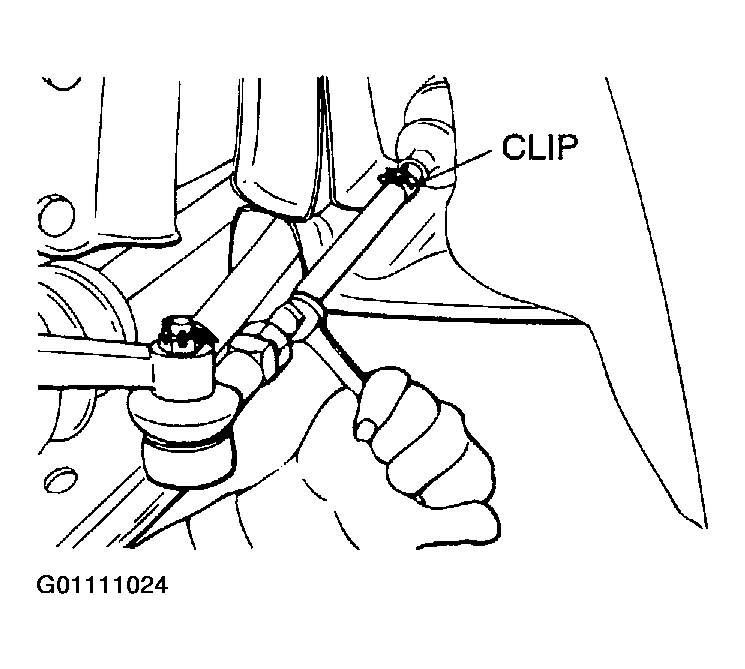

Fig 1: Adjusting Toe-In

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

STEERING ANGLE

Use a turning radius gauge to check that the steering angle is at the standard value.

Standard value:

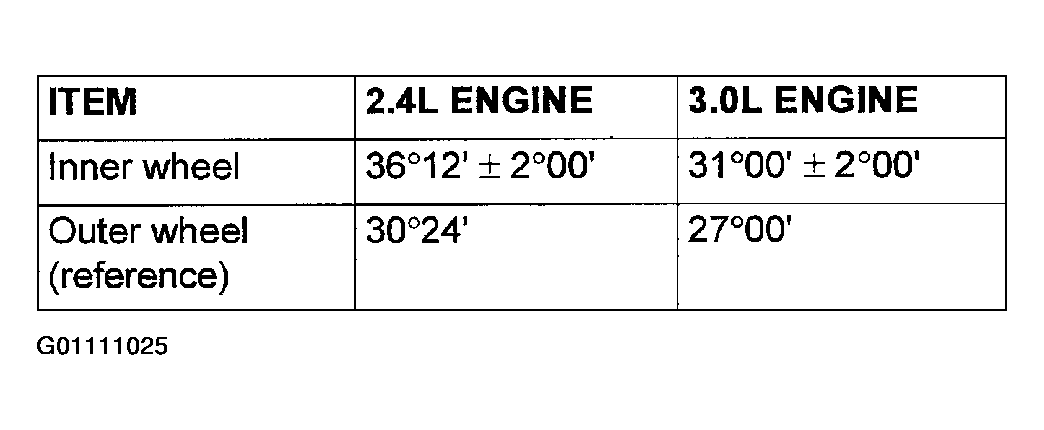

Fig 2: Steering Angle Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAMBER AND CASTER

Standard value:

Camber 0° 00' +/- 30' (Left/right deviation within 30')

Caster 3° 00' +/- 30' (Left/right deviation within 30')

NOTE: Caster is preset at the factory and cannot be adjusted.

CAUTION: Never subject the wheel bearings to the vehicle load when the drive shaft nuts are loosened.

NOTE: For vehicles with aluminum type wheels, attach the camber/caster/kingpin gauge to the driveshaft by using special tool MB991004. Tighten special tool MB991004 to the same torque 226 +/- 29 N.m (167 +/- 21 ft-lb) as the driveshaft nut.

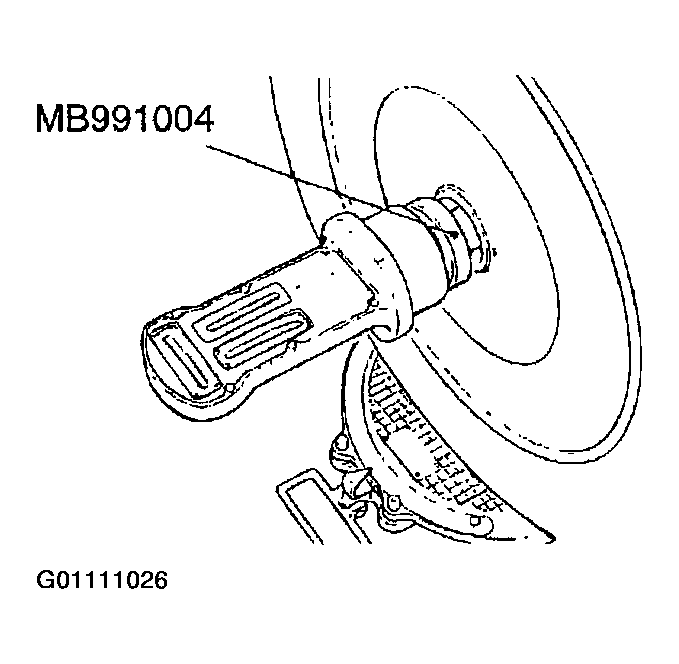

Fig 3: Installing Special Tool MB991004

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If the camber is outside of the standard value, perform the following adjustment procedures.

Estimate how much additional camber adjustment is required. Using the table in the illustration below, select the camber adjusting bolt, and then replace the knuckle and strut assembly connection bolts (upper bolt, lower bolt) with the selected bolts.

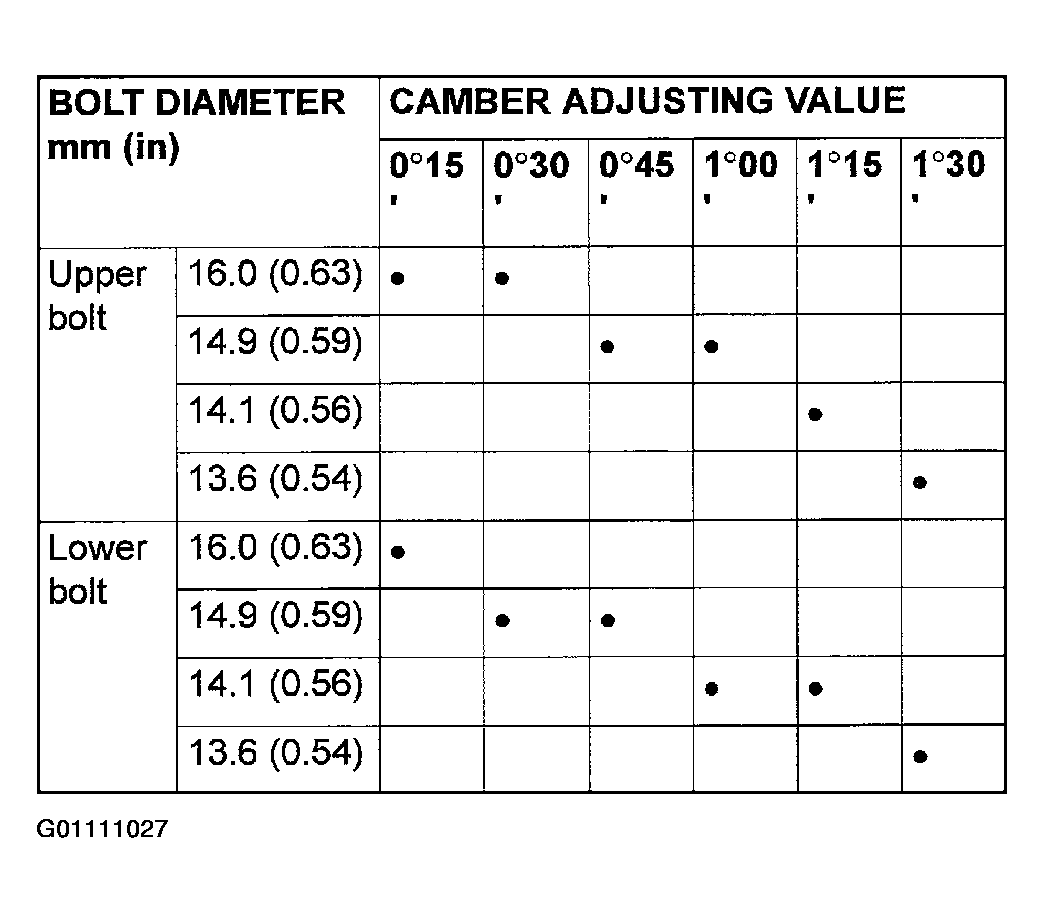

Fig 4: Selecting Camber Adjusting Bolt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

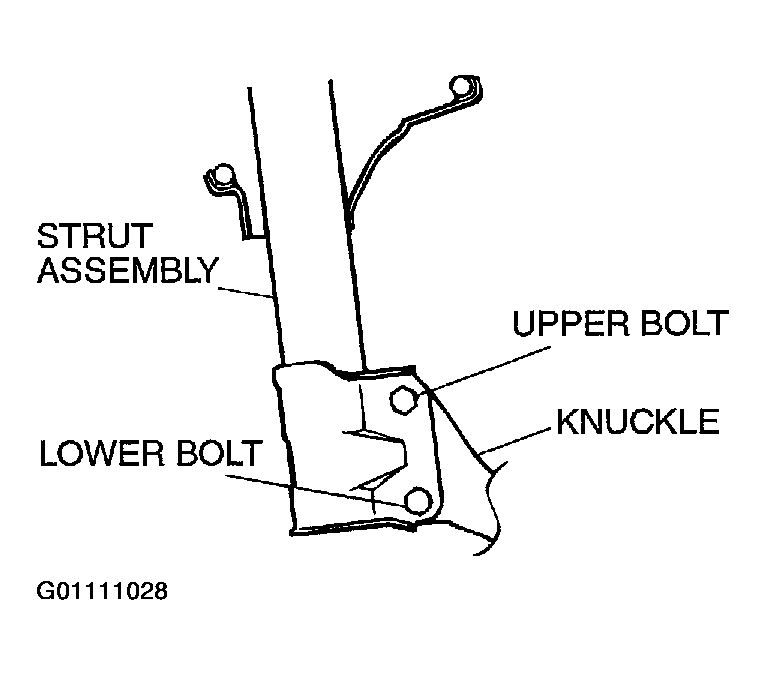

Fig 5: Identifying Upper & Lower Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: If the camber adjusting value that is required is greater than 1° 30', check for bent or damaged parts and replace as necessary.

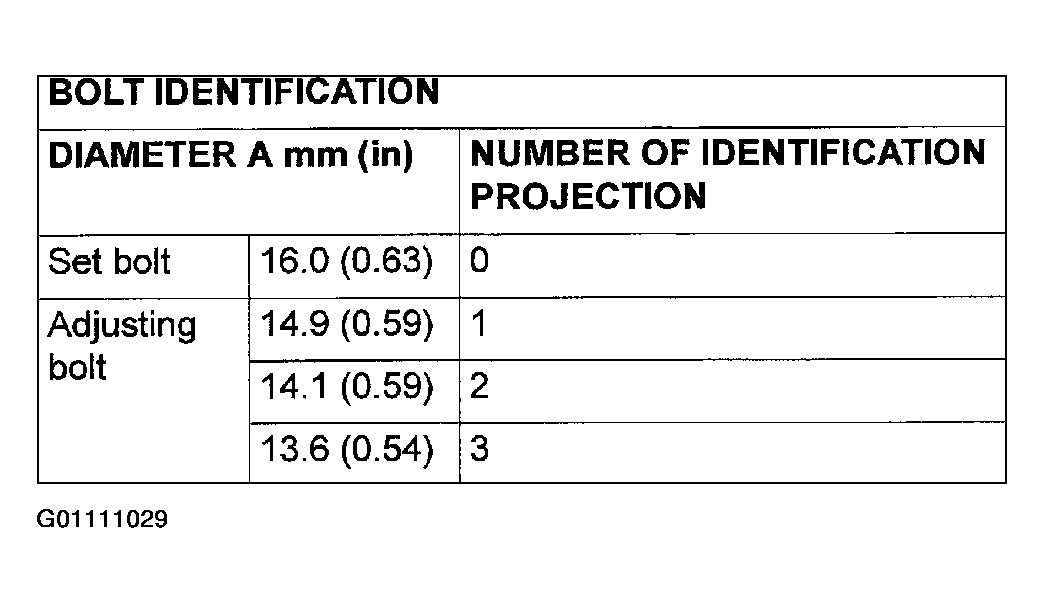

Fig 6: Identifying Bolt Diameter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

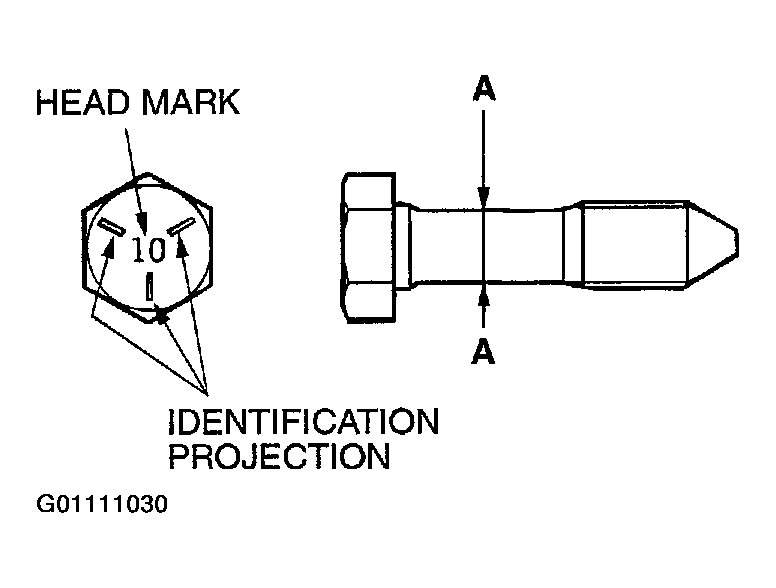

Fig 7: Locating Identification Projections
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Set bolt is the bolt installed at factory. "10" embossed on bolt head is head mark.

Tighten the nuts temporarily, and then pull or push the front axle to adjust the camber.
NOTE: Pulling the upper side of the front axle to the outside of the vehicle will increase the camber. Pushing it to the inside of the vehicle will decrease the camber.
Tighten the nuts to 300 +/- 24 N.m (221 +/- 18 ft-lb).
Recheck the camber.

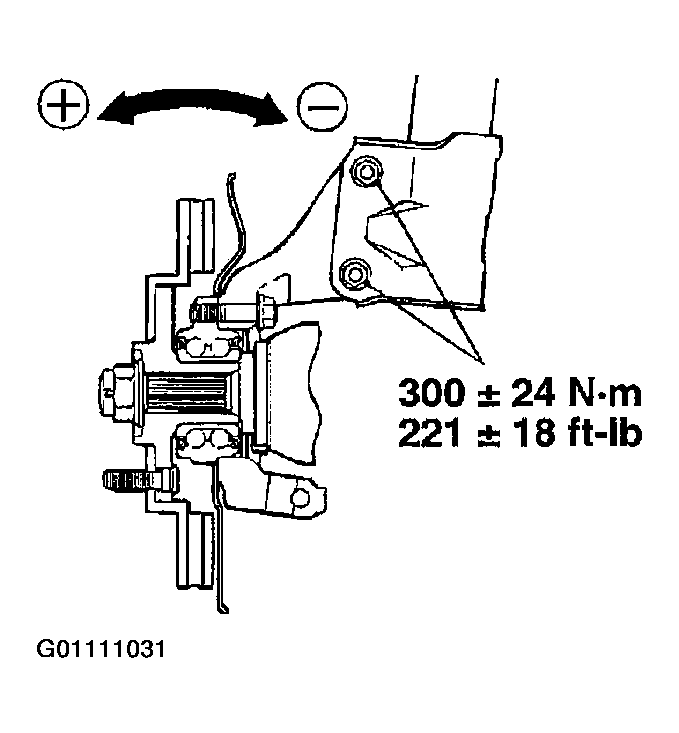

Fig 8: Adjusting Camber
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
