Section 2 (3.0L 6-Cylinder)
>>
Overhaul
>>
Specifications
>>
Service Specifications
Service Specifications
WARNING:
This page is about a different variant/trim than selected.

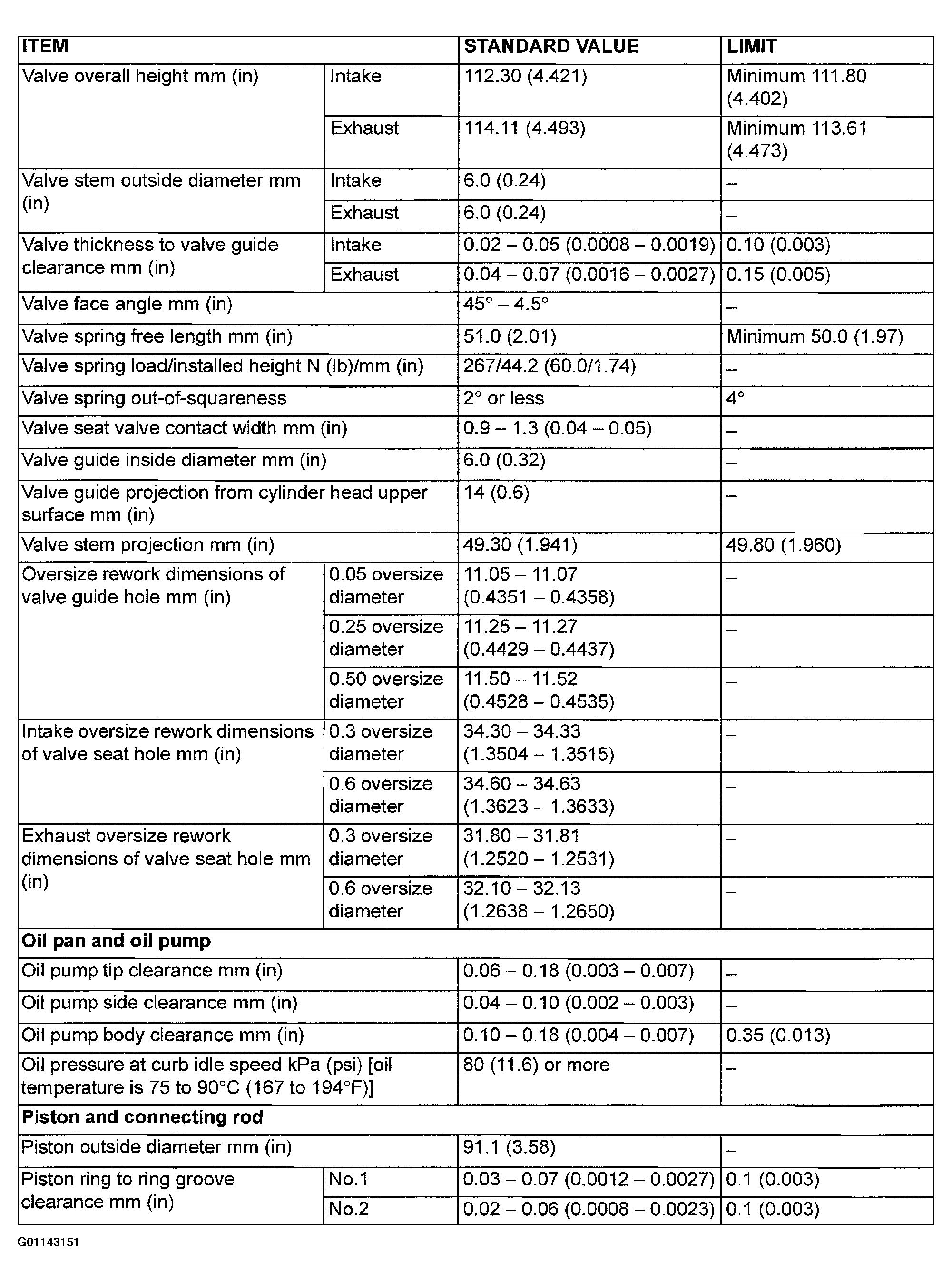

Fig 1: Service Specifications (1 of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

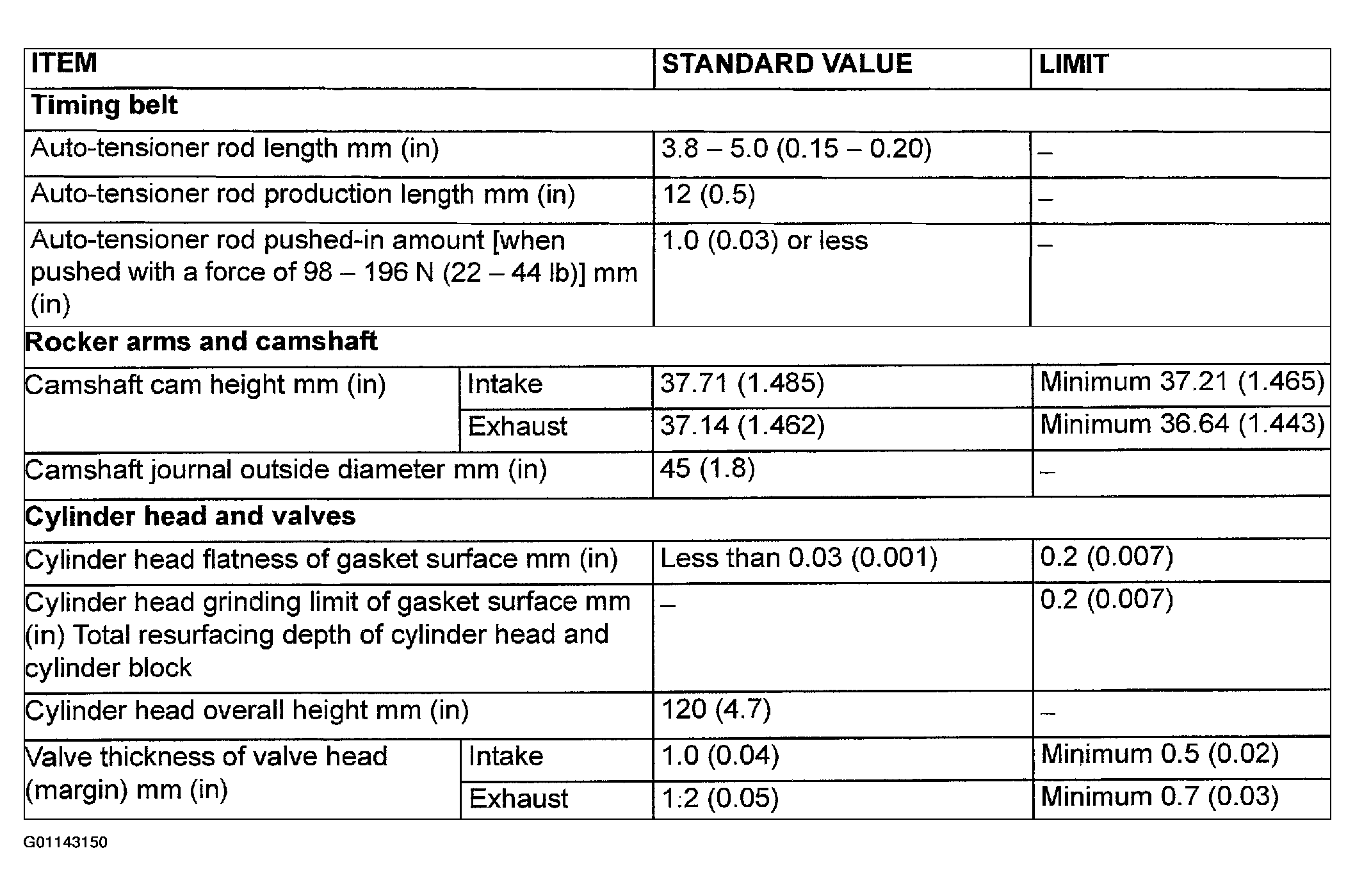

Fig 2: Service Specifications (2 of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

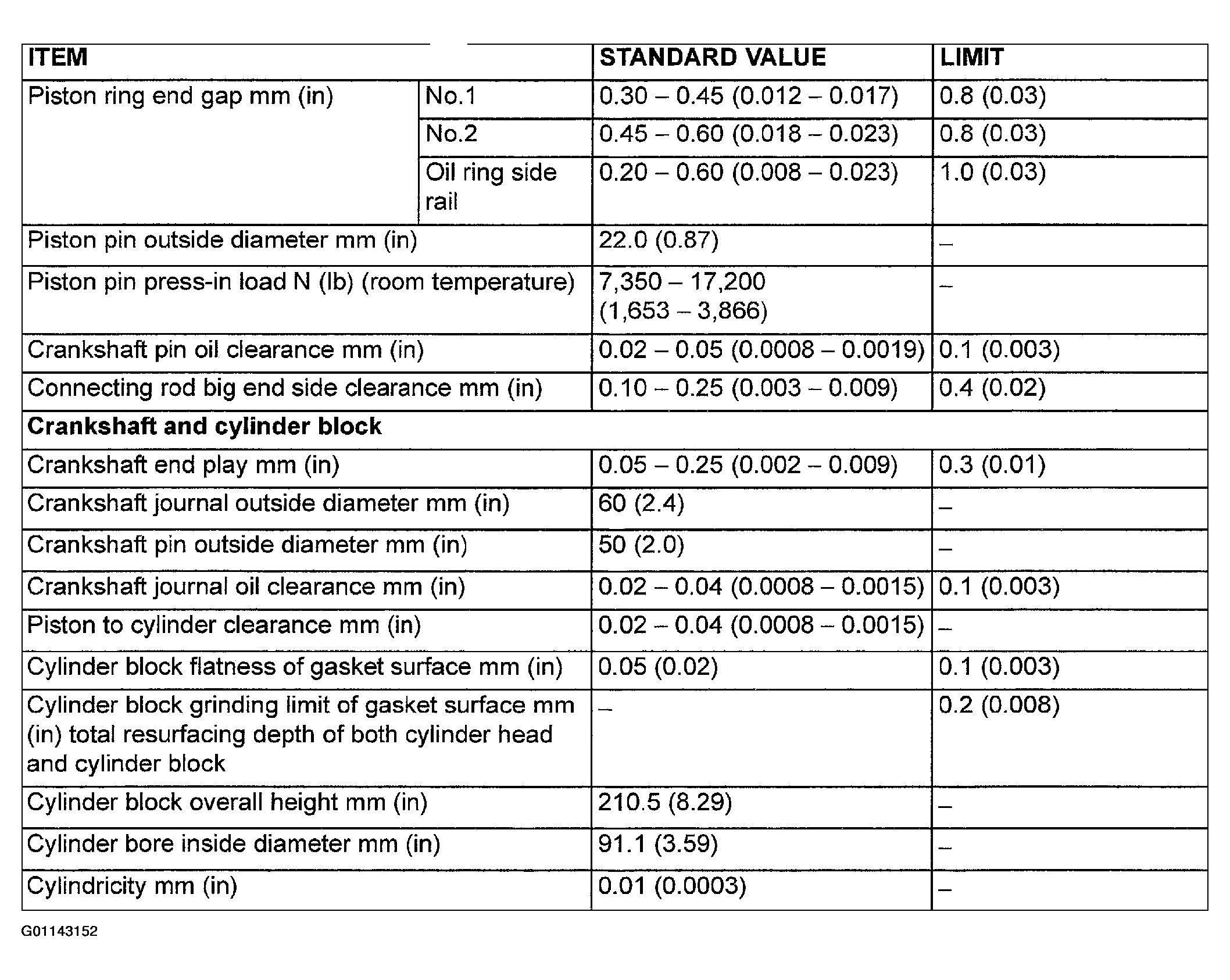

Fig 3: Service Specifications (3 of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
