Disassembly And Assembly
WARNING: This page is about a different car, the 2002 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

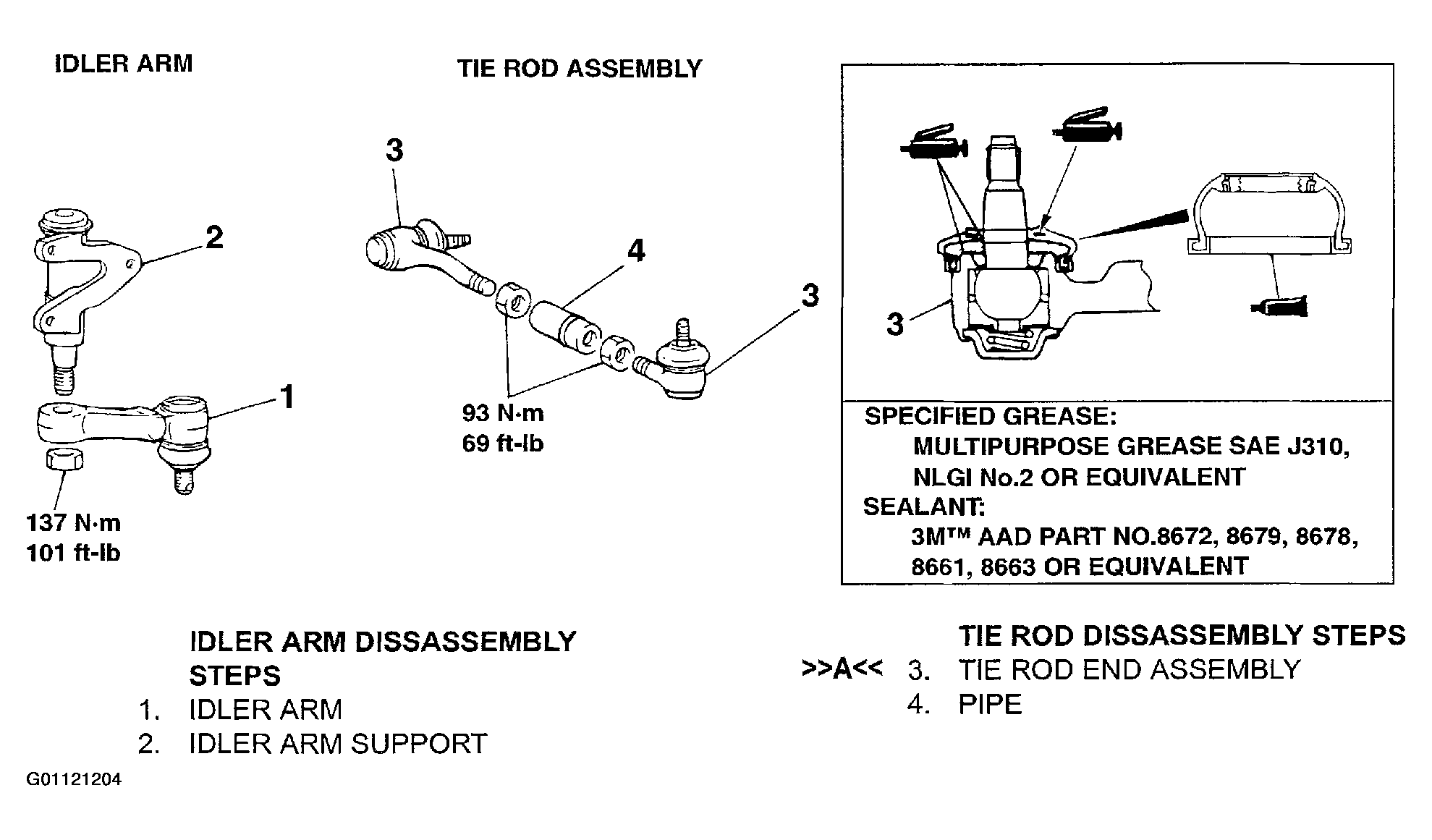

The bold directional arrows around letter designations in illustration are covered in SERVICE POINTS for each component.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
- MB990776: Front Axle Base
