Passenger Compartment: Fuses
PASSENGER COMPARTMENT FUSES
| Power Supply Circuit | No. | Capacity (A) | Housing Color | Load Circuit |
|---|---|---|---|---|
| Ignition switch (IG1) | 1 | 10 | Red | Capacitor (2.4L Engine), ignition coil 1 (2.4L Engine), ignition coil 2 (2.4L Engine) and distributor assembly (3.0L Engine) |
| 2 | 7.5 | Brown | Combination meter, column switch, ETACS-ECU, motor antenna assembly, multi center display unit, SRS-ECU and vehicles speed sensor | |
| 3 | 7.5 | Brown | Backup light switch, input shaft speed sensor, output shaft speed sensor, park/neutral position switch, shift switch assembly and SRS-ECU | |
| 4 | 7.5 | Brown | Auto-cruise control-ECU and auto-cruise control switch | |
| Ignition switch (IG2) | 5 | 7.5 | Brown | |
| Multi-purpose fuse No. 20 | 6 | - | - | - |
| Ignition switch (ACC) | 7 | 20 | Yellow | Front-ECU and windshield wiper motor |
| Ignition switch (IG1) | 8 | 7.5 | Brown | Engine control module, fuel pump module, fuel pump relay 1, fuel pump relay 2 and powertrain control module |
| Ignition switch (ACC) | 9 | 15 | Blue | Accessory socket, cigarette lighter and multi center display unit |
| 10 | - | - | - | |
| 11 | 7.5 | Brown | Remote controlled mirror (LH) and remote controlled mirror (RH) | |
| Ignition switch (IG2) | 12 | 7.5 | Brown | ABS-ECU, convertible top switch and Sunroof-ECU |
| Ignition switch (ACC) | 13 | - | - | - |
| 14 | 15 | Blue | ETACS-ECU | |
| Fusible link No. 1 | 15 | 15 | Blue | Combination meter, data link connector and ETACS-ECU |
| 16 | - | - | - | |
| 17 | - | - | - | |
| 18 | - | - | - | |
| 19 | 30 | Green | Blower relay | |
| 20 | 30 | Green | Defogger relay |

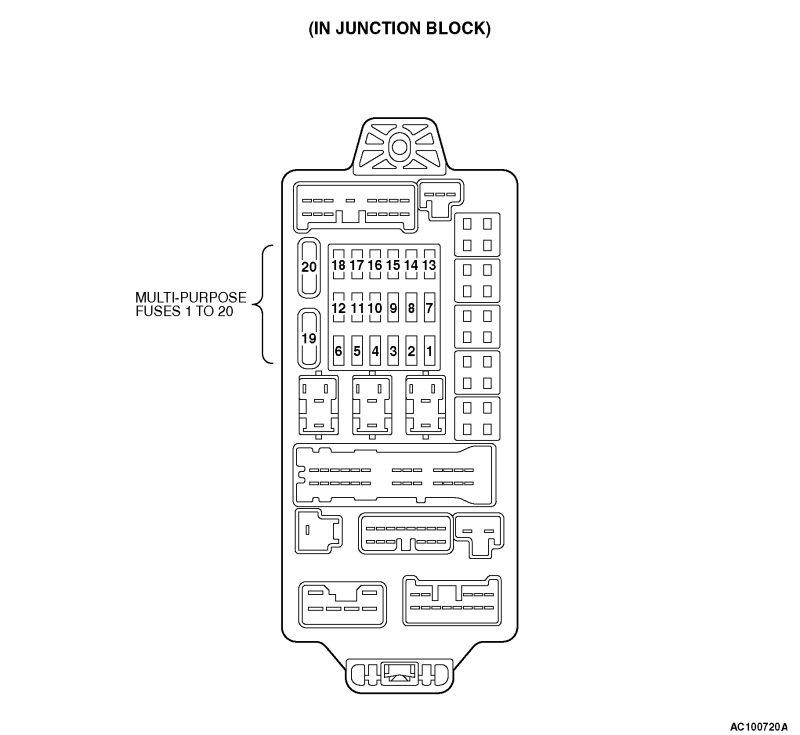

For fuse locations, see Fig 1.
