Engine Compartment: Relays

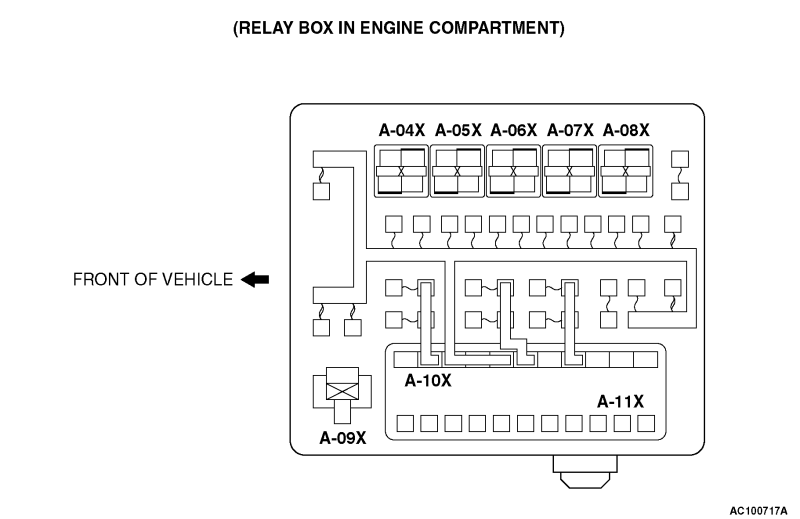

ENGINE COMPARTMENT RELAYS
| Connector No. | Name |
|---|---|
| A-04X | Fog light relay |
| A-05X | Horn relay |
| A-06X | Theft-alarm horn relay |
| A-07X | - |
| A-08X | - |
| A-09X | Fan control relay |
| A-10X | Front-ECU |
| A-11X | Front-ECU |

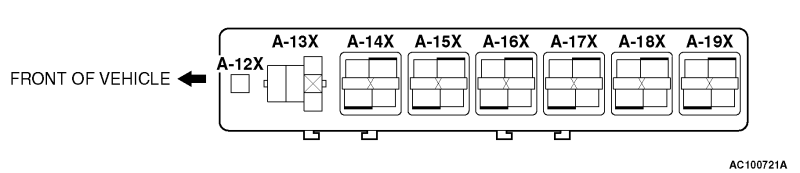

| A-12X | Engine speed detection connector |
| A-13X | Starter relay |
| A-14X | - |
| A-15X | - |
| A-16X | - |
| A-17X | A/T control relay |
| A-18X | MFI relay |
| A-19X | A/C compressor relay |
