Engine Compartment: Fuses

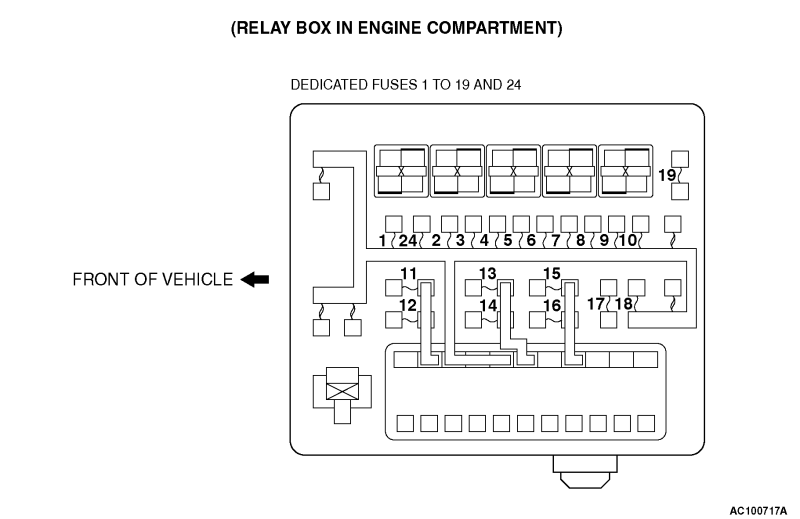

ENGINE COMPARTMENT FUSES
| Power Supply Circuit | No. | Capacity (A) | Housing Color | Circuit |
| Battery | 1 | 15 | Blue | Fog light |
| 2 | 15 | Blue | Central door locking system (vehicles with keyless entry system), horn and theft-alarm system | |
| 3 | 20 | Yellow | Air conditioning system, cooling system, immobilizer system, INVECS-II 4A/T and MFI system | |
| 4 | 10 | Red | Air conditioning system | |
| 5 | 15 | Blue | Anti-lock braking system, auto-cruise control system, immobilizer system, INVECS-II 4A/T and stoplight | |
| 6 | - | - | - | |
| 7 | 7.5 | Brown | Charging system | |
| 8 | 10 | Red | Central door locking system (vehicles with keyless entry system), turn-signal light and hazard warning light | |
| 9 | 20 | Yellow | INVECS-II 4A/T | |
| 10 | 15 | Blue | MFI system | |
| Front-ECU (Headlight relay: High) | 11 | 10 | Red | Headlight and theft-alarm system |
| 12 | 10 | Red | Headlight and theft-alarm system | |
| Front-ECU (Headlight relay: Low) | 13 | 10 | Red | Headlight |
| 14 | 10 | Red | Headlight | |
| Front-ECU (Taillight relay | 15 | 7.5 | Brown | Air conditioning system, audio system, cigarette lighter, defogger, fog light, glove box light, heater, INVECS-II 4A/T (vehicles without sport mode type), meter, gauge, multi center display, rheostat, taillight, position light, rear side marker light, license plate light, turn-signal light and hazard warning light |
| 16 | 7.5 | Brown | Taillight, position light, rear side marker light and license plate light | |
| Ignition switch (ACC) | 17 | 10 | Red | Audio system, central door locking system (vehicles with keyless entry system), dome light, luggage compartment light (ECLIPSE), trunk light (ECLIPSE SPYDER), trunk light |
| Battery | 18 | 10 | Red | Audio system, central door locking system, convertible top, dome light, luggage compartment light (ECLIPSE), trunk light , trunk light (ECLIPSE SPYDER), fog light, headlight, immobilizer system, INVECS-II 4A/T, key reminder tone alarm, lighting monitor tone alarm, MFI system, multi center display, power windows, rear wiper, washer, seat belt tone alarm, sunroof, taillight, position light, rear side marker light, license plate light, theft-alarm system, turn-signal light, hazard warning light, vanity mirror light, windshield wiper and washer |
| 19 | - | - | - | |

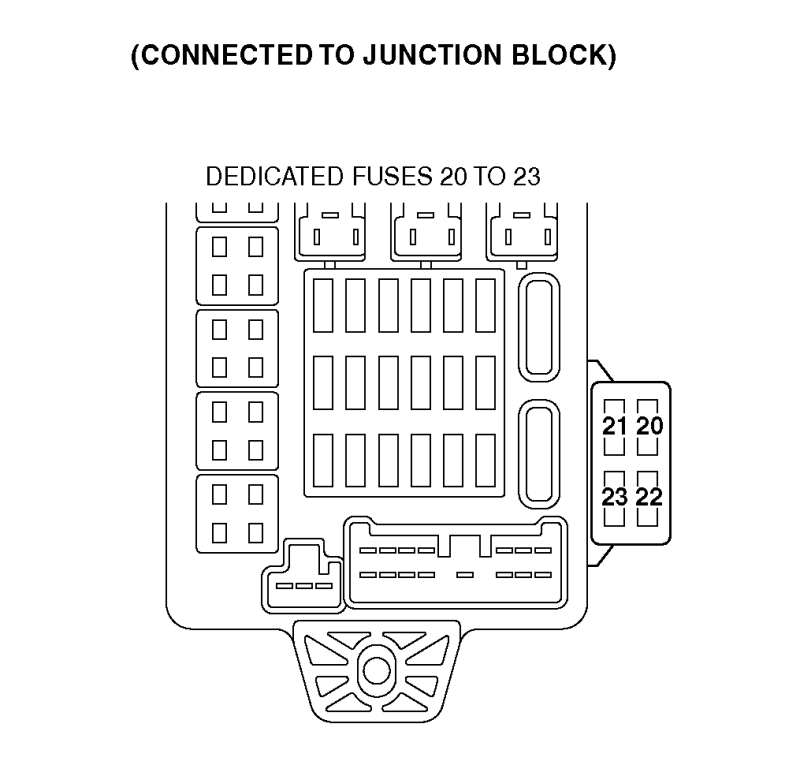

| Fusible link No. 5 | 20 | 20 | Yellow | Audio system (vehicles with amplifier) |
| - | 21 | - | - | - |
| Fusible link No. 5 | 22 | 20 | Yellow | Sunroof |
| - | 23 | - | - | - |
| Battery | 24 | - | - | - |
