Fan Control Relay Connector End View

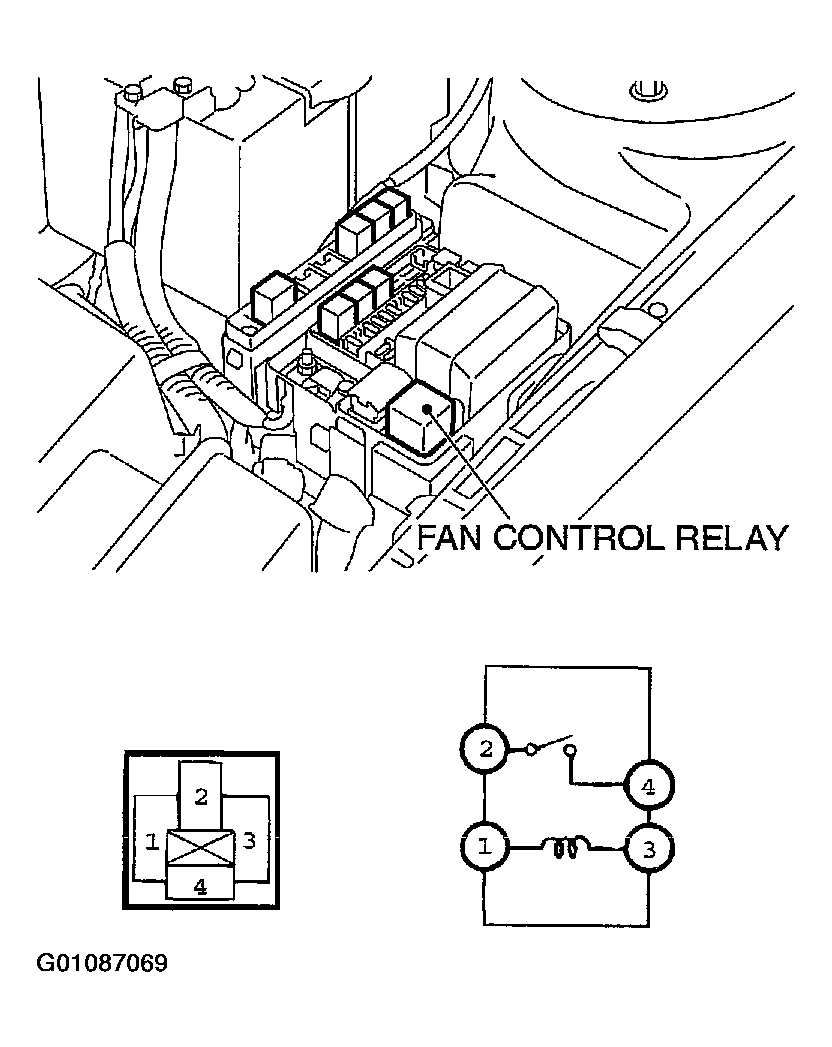

Fig 1: Fan Control Relay Connector End View

G01087069

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
