Axle Shafts: Description

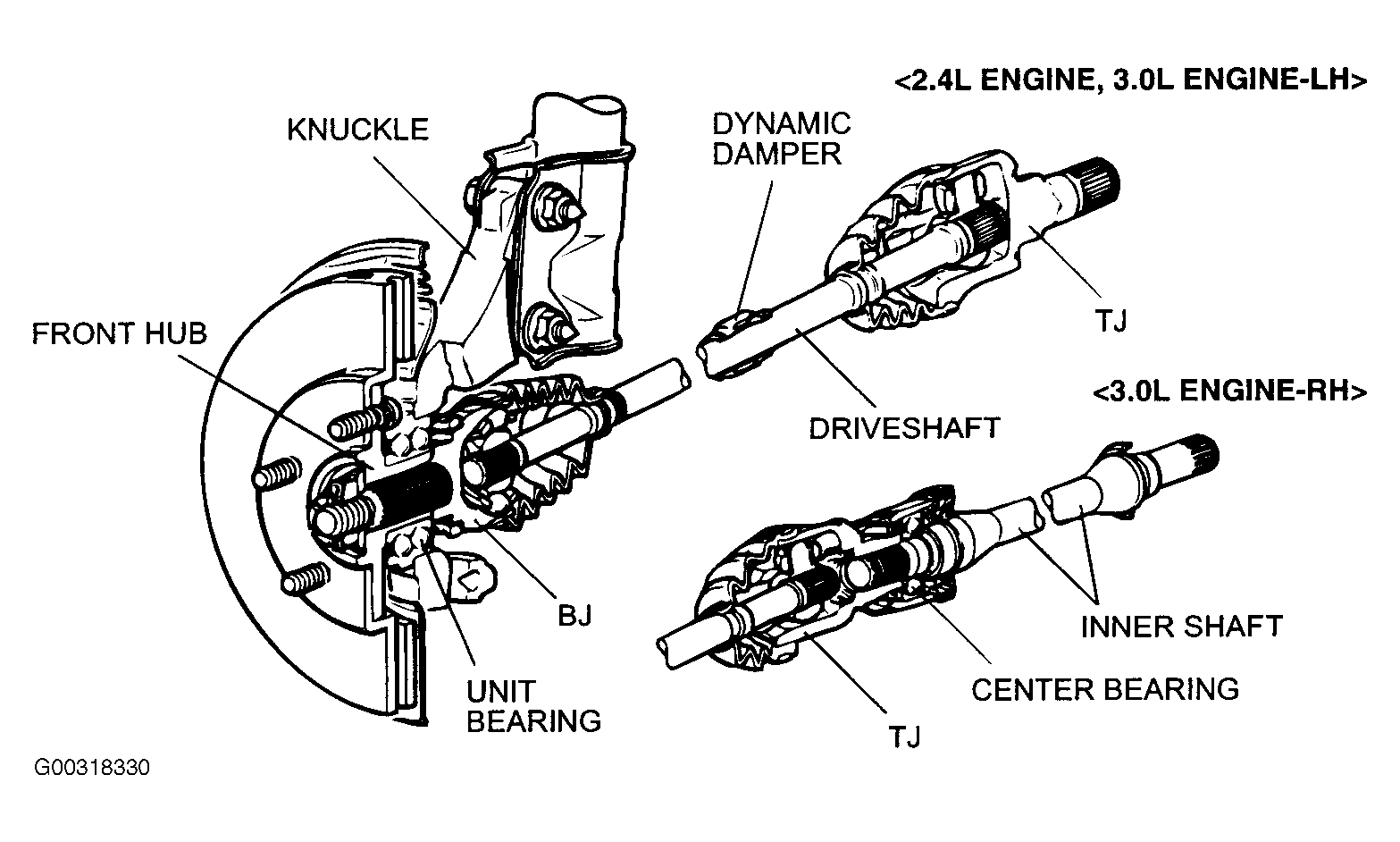

The front axle consists of a knuckle, front hub, unit bearing and drive shaft. The unit bearing is press-fitted to the front hub and bolted to the knuckle. Also, the unit bearing utilizes a double row angular contact ball bearing. The drive shaft has a Tripod Joint (TJ) on the transaxle side and a Birfield Joint (BJ) on the wheel side. A center bearing and a inner shaft have been adopted in 3.0L engine. See Fig 1 .
