Removal And Installation: Notes

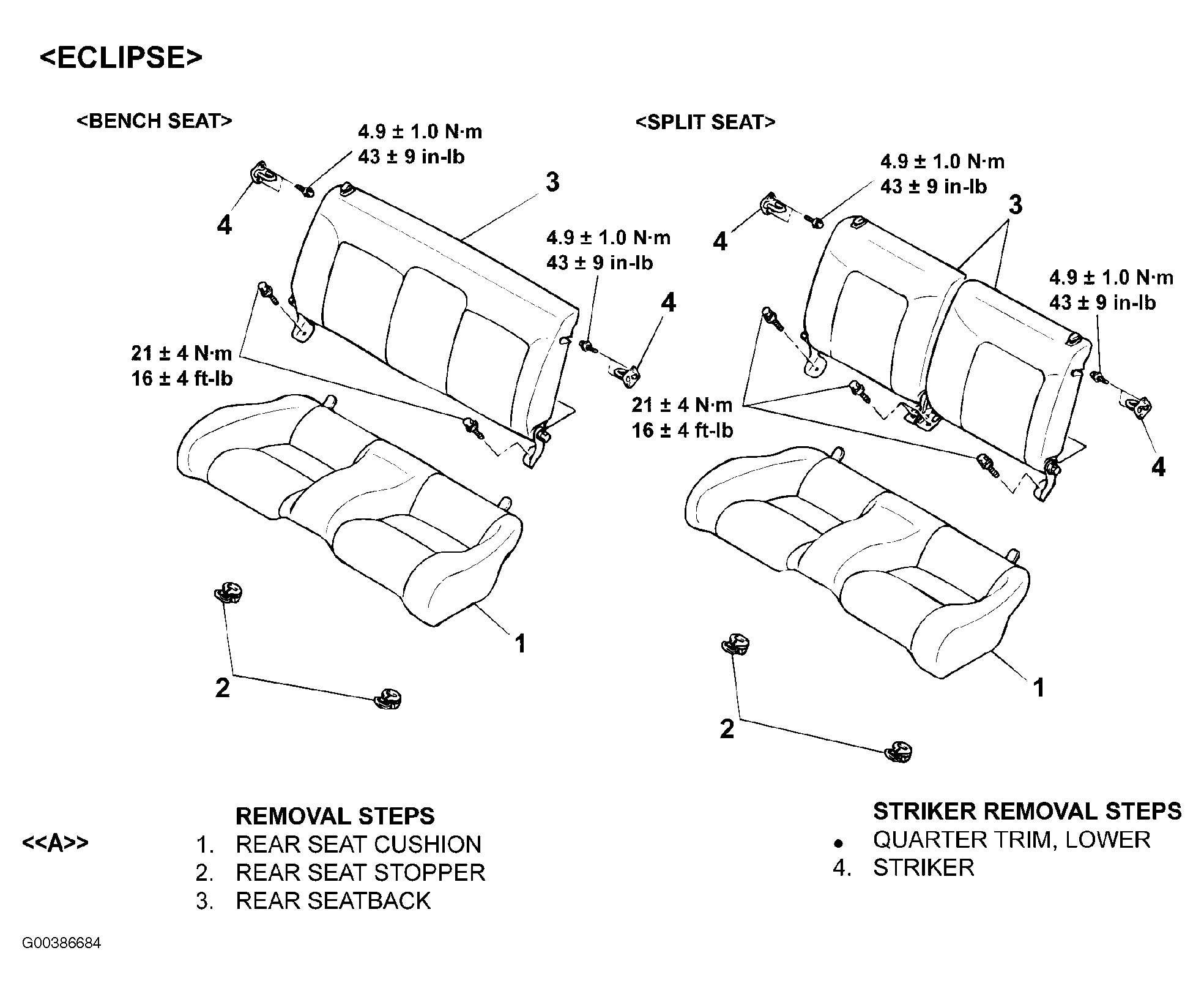

Fig 1: Removing & Installing Rear Seat Assembly (Eclipse)
G00386684Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

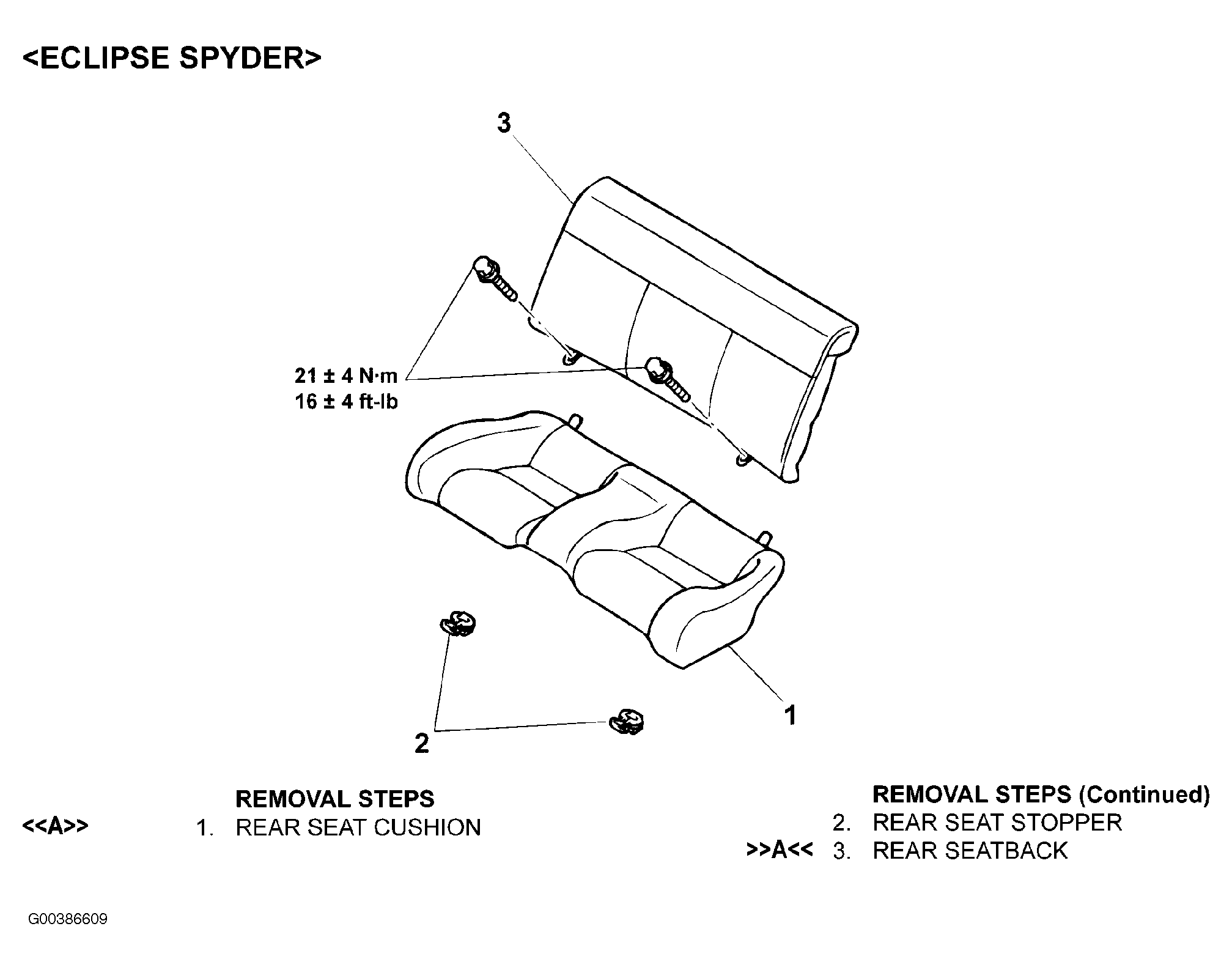

Fig 2: Removing & Installing Rear Seat Assembly (Eclipse Spyder)
G00386609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
