Removal And Installation

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG SAFETY PRECAUTIONS .

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols in the illustration.

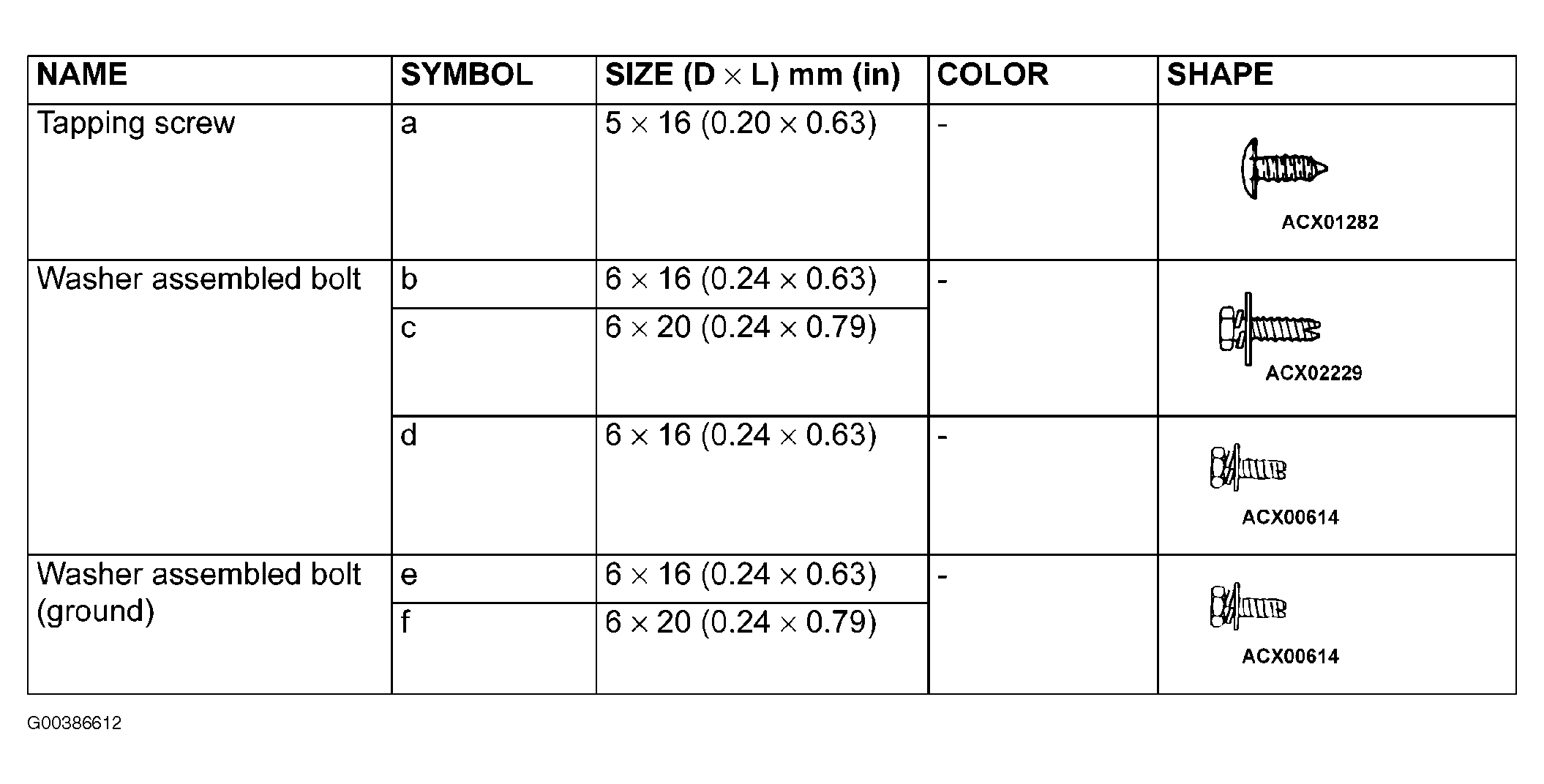

Fig 1: Identifying Instrument Panel Bolts

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

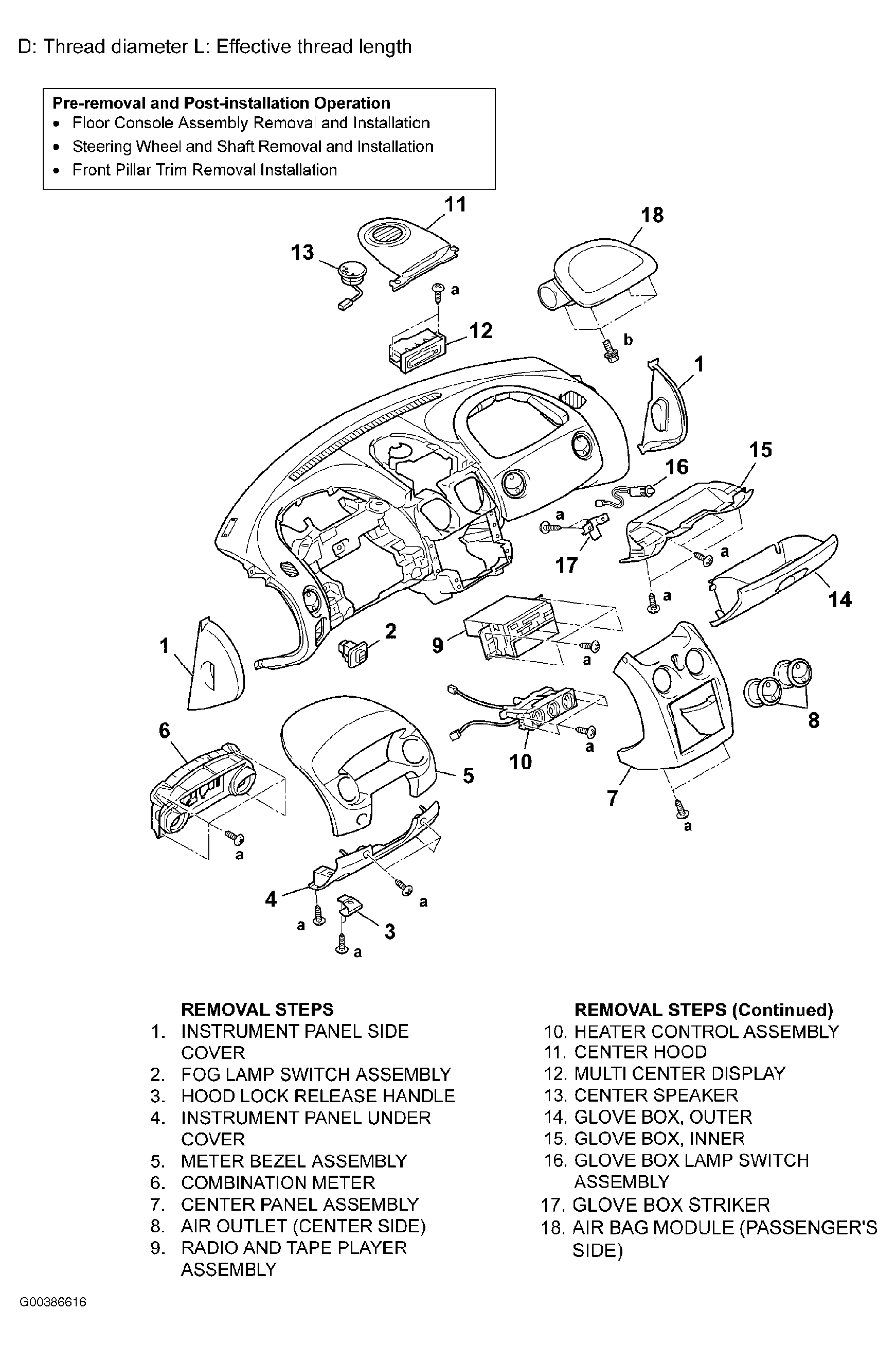

Fig 2: Removing & Installing Instrument Panel (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

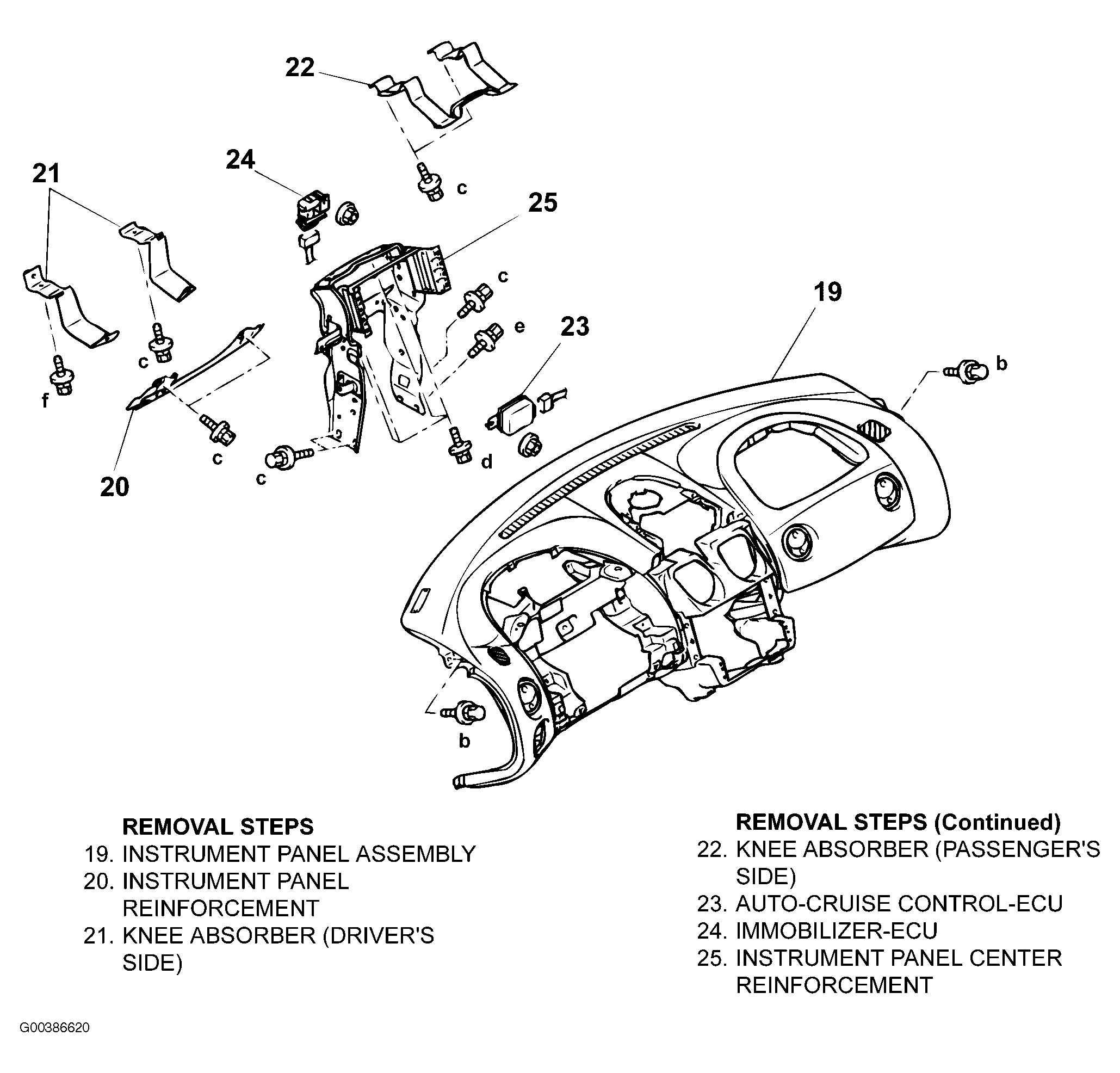

Fig 3: Removing & Installing Instrument Panel (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

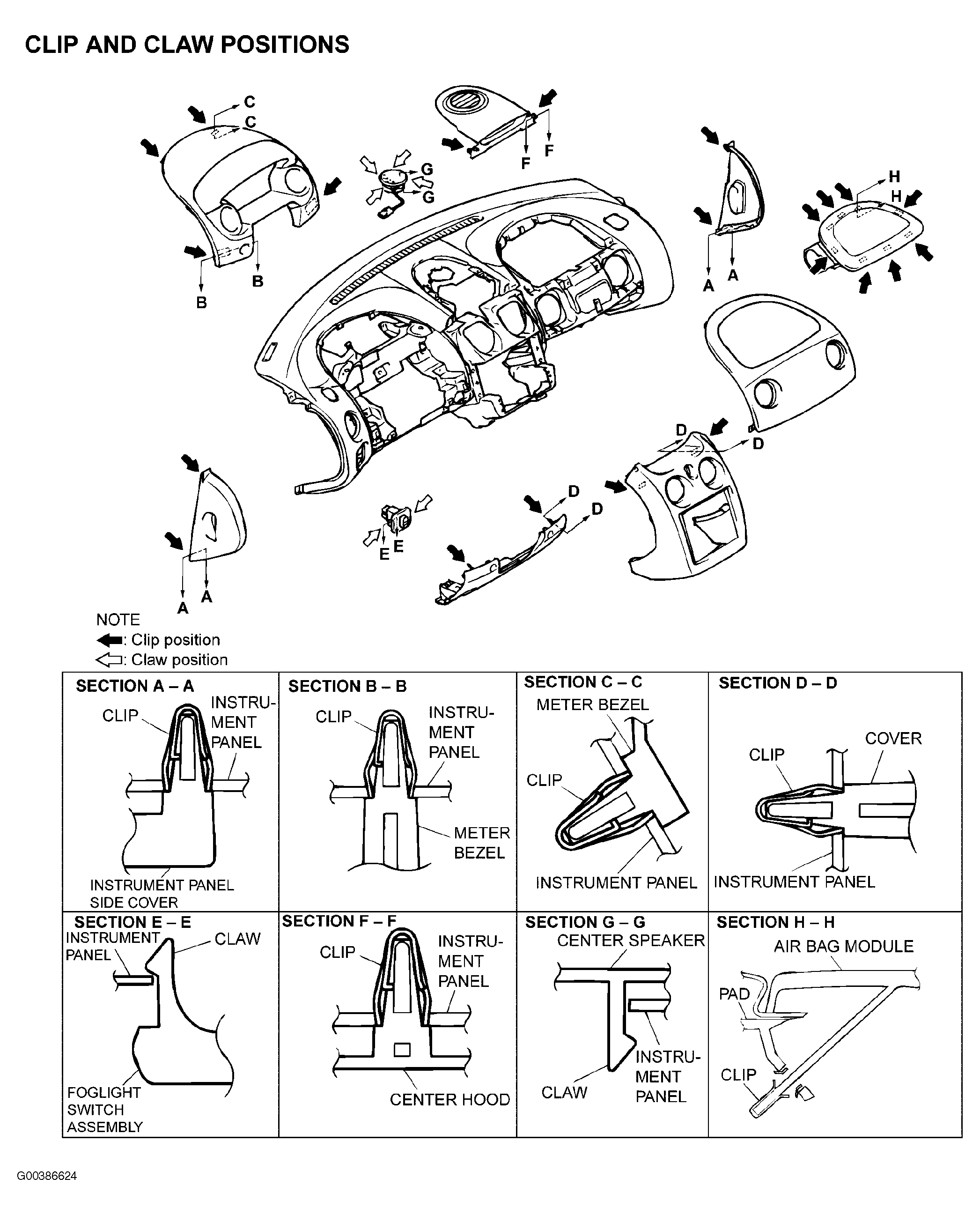

Fig 4: Identifying Clip & Claw Positions

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
