One Turn Magnetic Compensation

The compass is self-calibrating under normal driving conditions. It is not necessary to manually calibrate the compass. If manual calibration is desired, follow these instructions.

1. Engine started.
2. Display the compass on the multi-center display.
3. Press and hold the "H" switch until "- -" appears in the display.

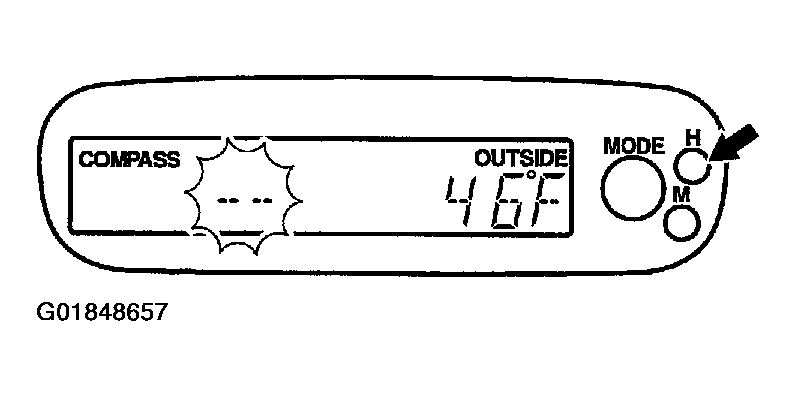

   Fig 1: One Turn Magnetic Compensation

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Release the switch to enter the calibration mode.
5. Drive very slowly in a circle until "- -" disappears.
