Disassembly & Reassembly: Notes

For valve body disassembly procedures, follow numbered steps in illustration. See Fig 1 to Fig 3 . For valve body reassembly procedures, follow numbered steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling valve body. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the disassembly procedure. See DISASSEMBLY SERVICE POINT . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See REASSEMBLY SERVICE POINTS .

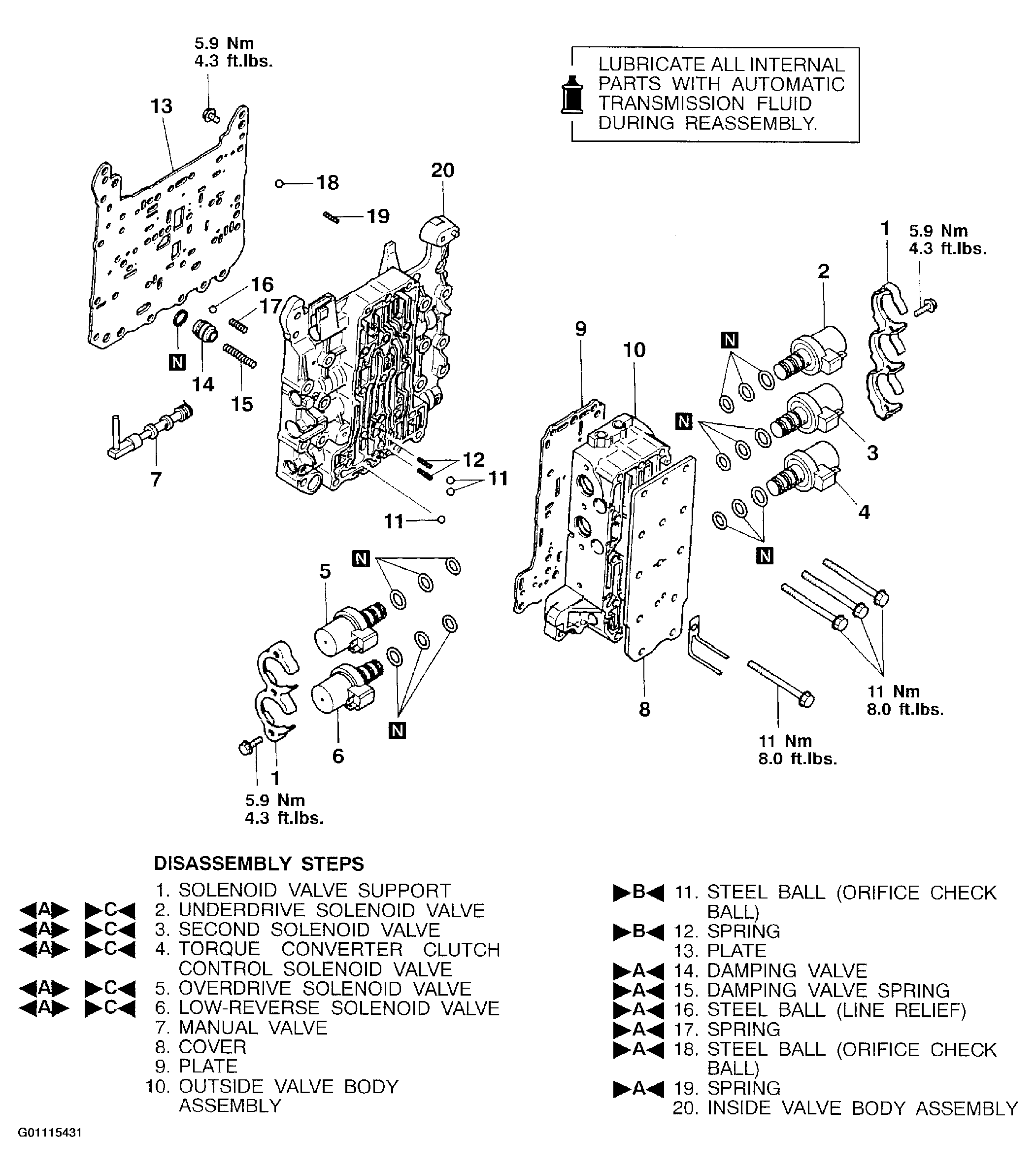

Fig 1: Exploded View Of Valve Body (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

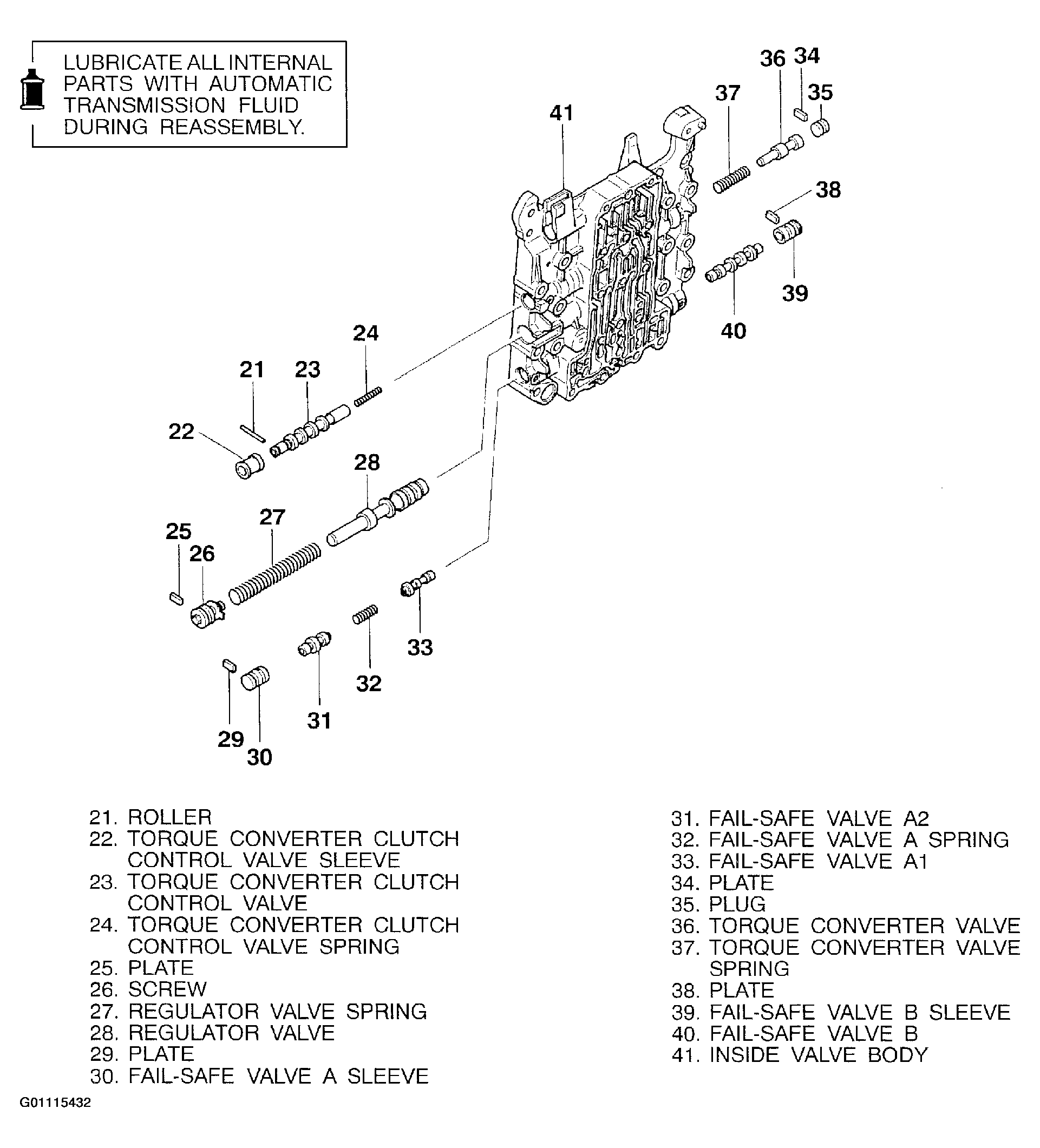

Fig 2: Exploded View Of Valve Body (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

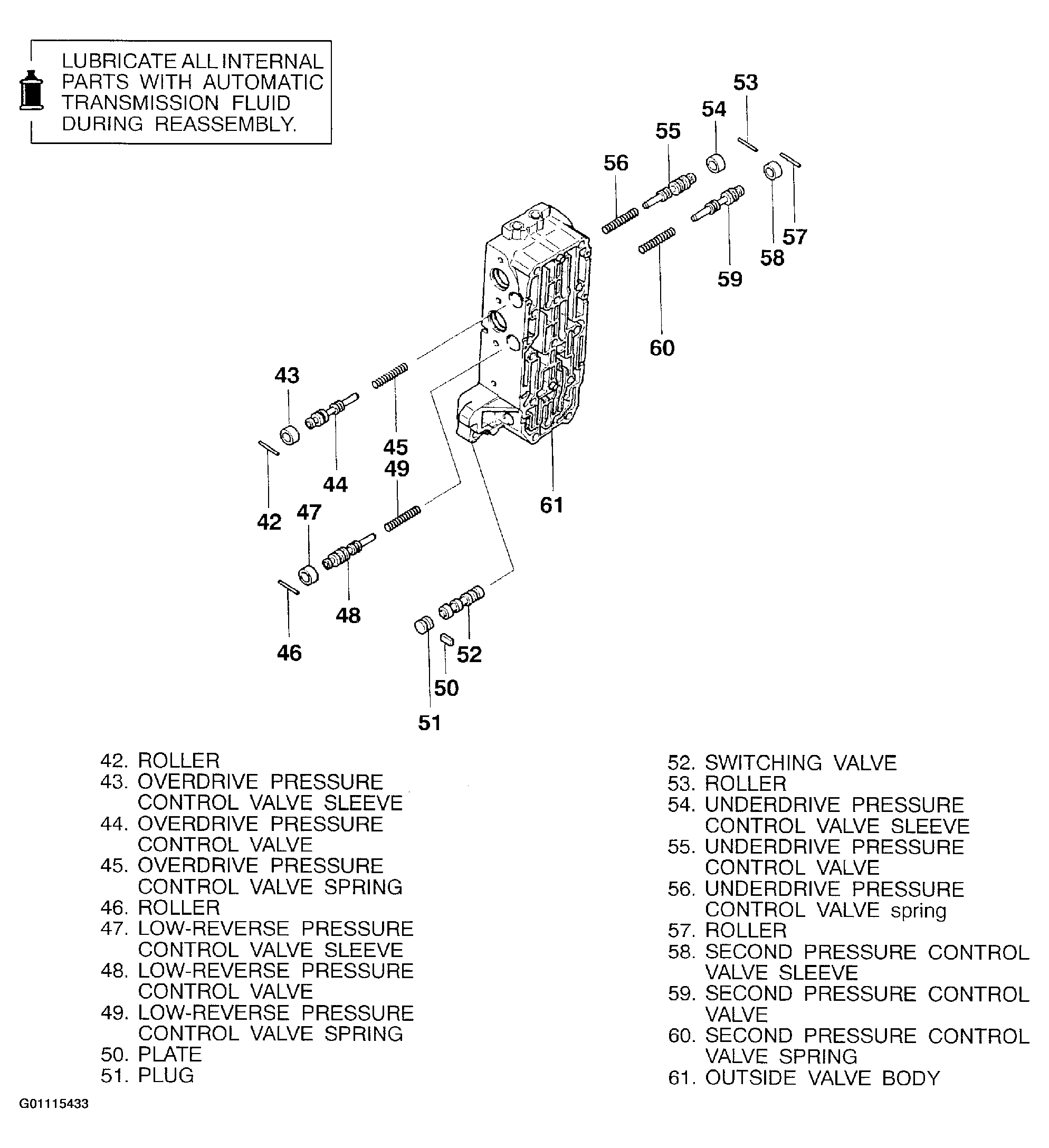

Fig 3: Exploded View Of Valve Body (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
