Valve Body Spring Identification

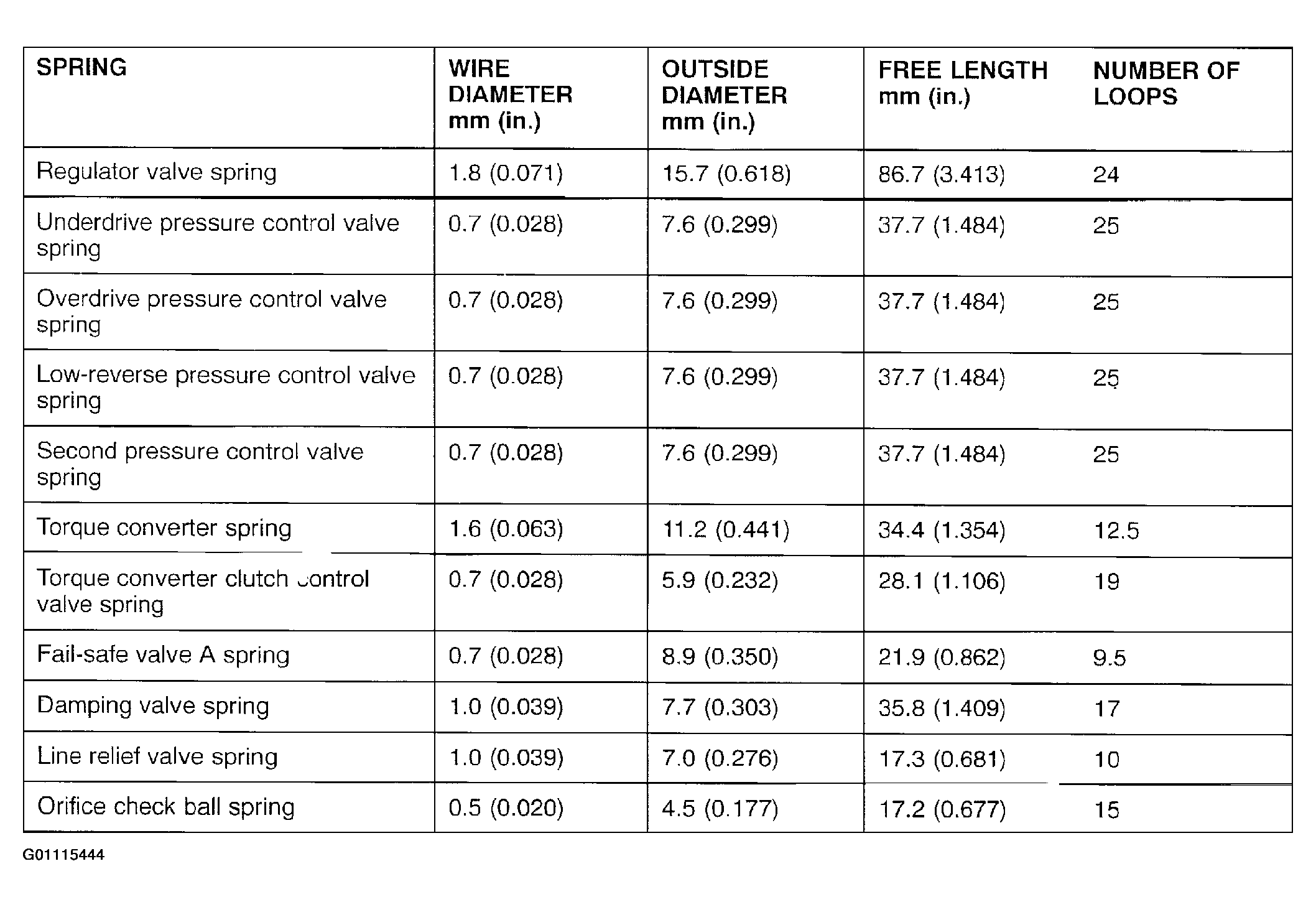

Fig 1: Identifying Valve Body Springs

G01115444

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
