Disassembly & Reassembly: Notes

For planetary carrier assembly disassembly procedures, follow numbered steps in illustration. See Fig 1. For planetary carrier reassembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling planetary carrier assembly. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See REASSEMBLY SERVICE POINTS .

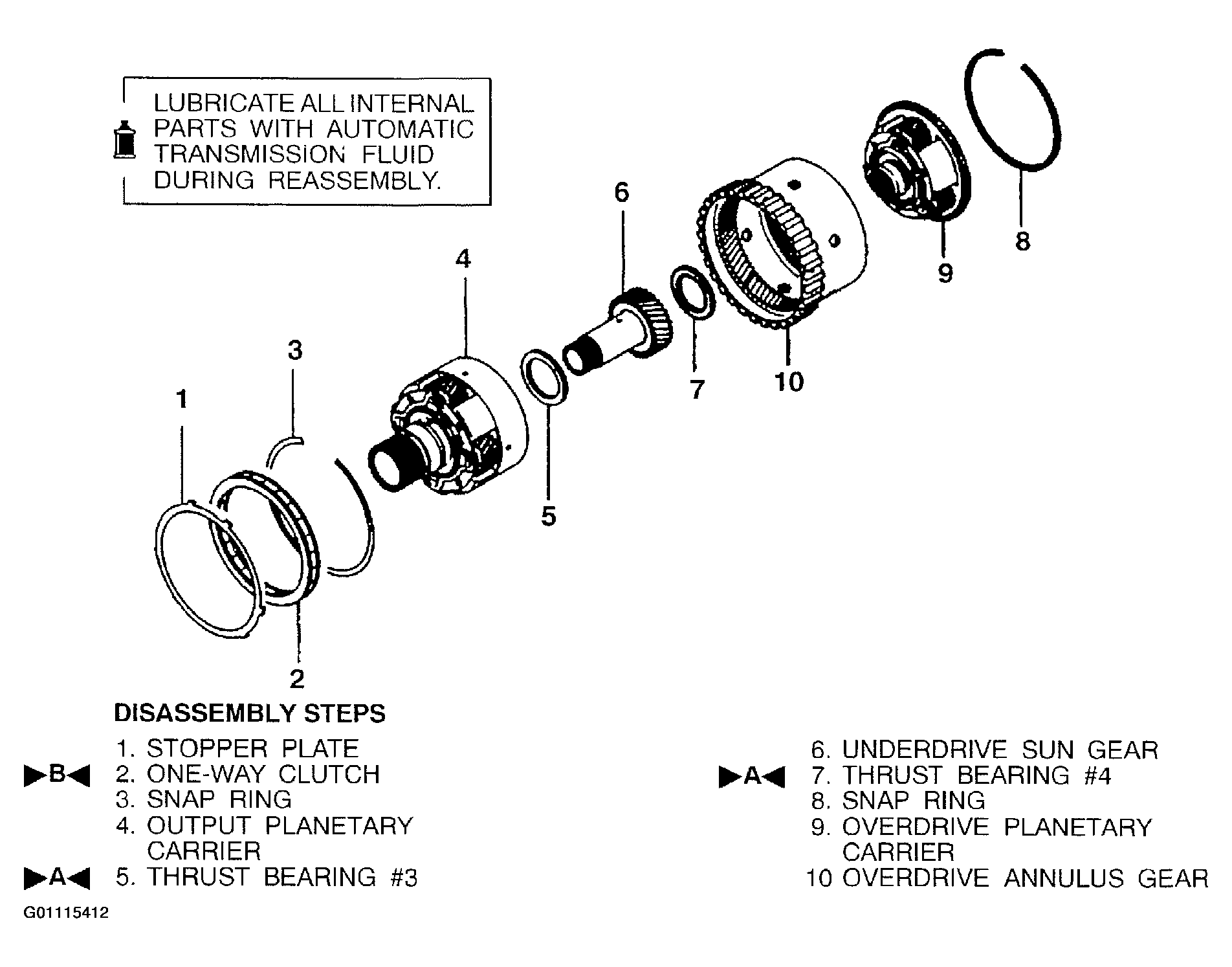

Fig 1: Exploded View Of Planetary Carrier Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
