Disassembly & Reassembly: Notes

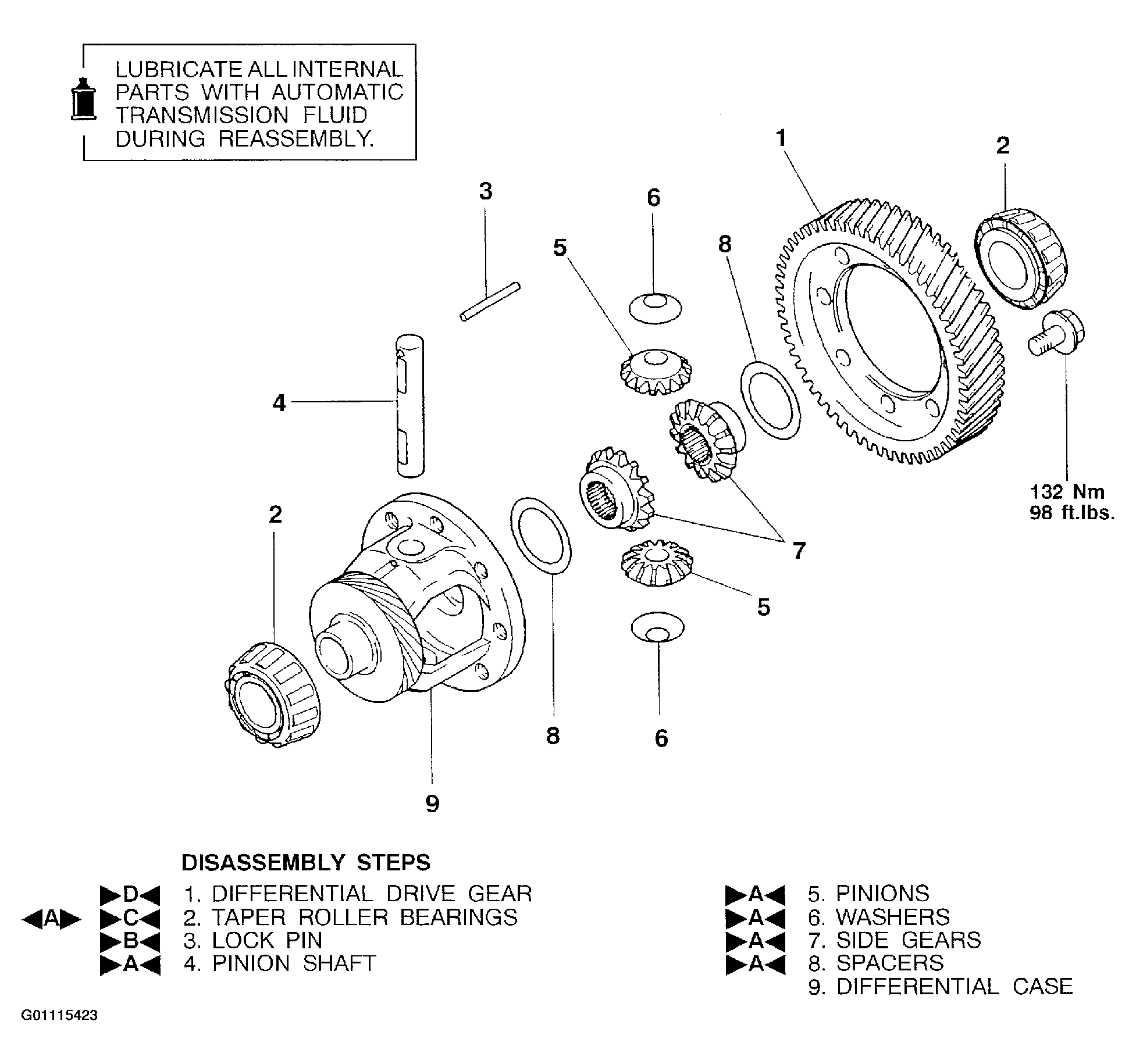

For differential disassembly procedures, follow numbered steps in illustration. See Fig 1. For differential reassembly procedures, follow numbered steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling differential. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the disassembly procedure. See DISASSEMBLY SERVICE POINT . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See REASSEMBLY SERVICE POINTS .
