Limit Switch Continuity Check

  1. Disconnect the limit switch connector and connect a circuit tester to the terminals.

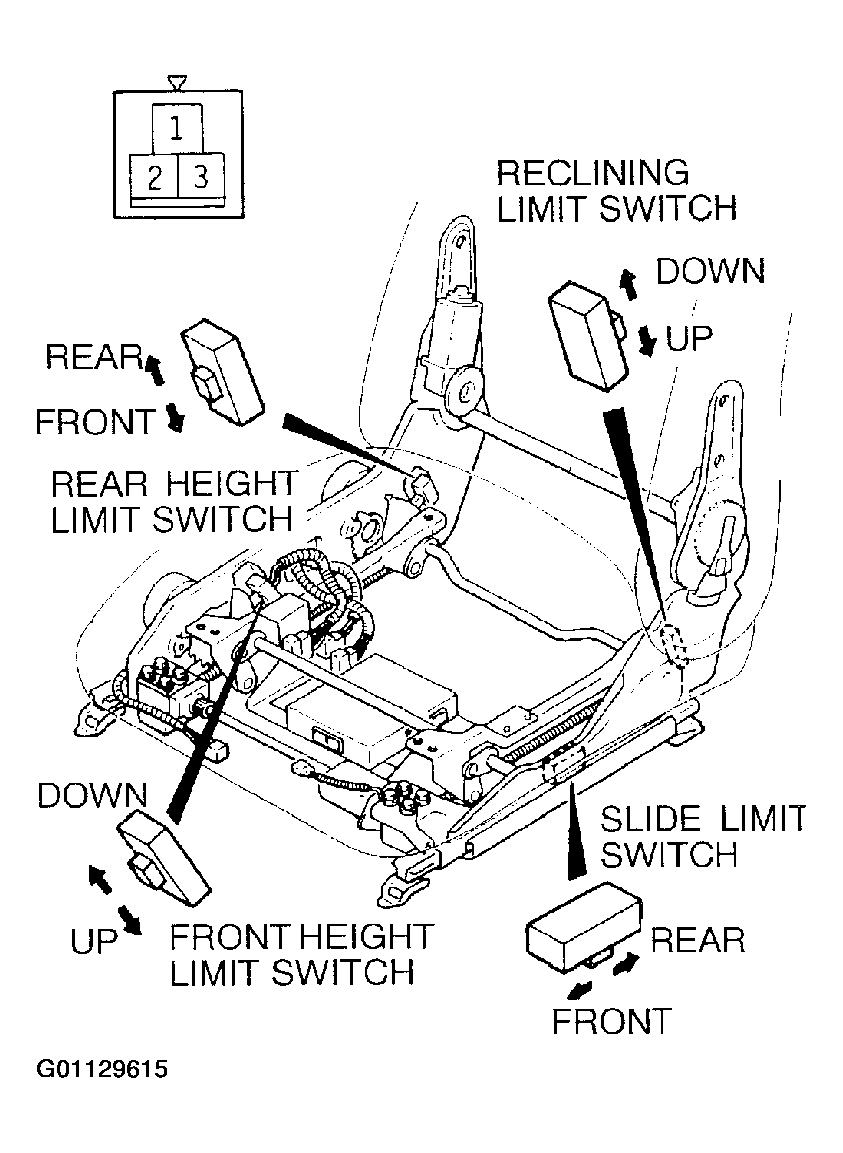

    Fig 1: Locating Limit Switches & Identifying Connector Terminals
    G01129615Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Operate the switch and check that there is continuity between the terminals.

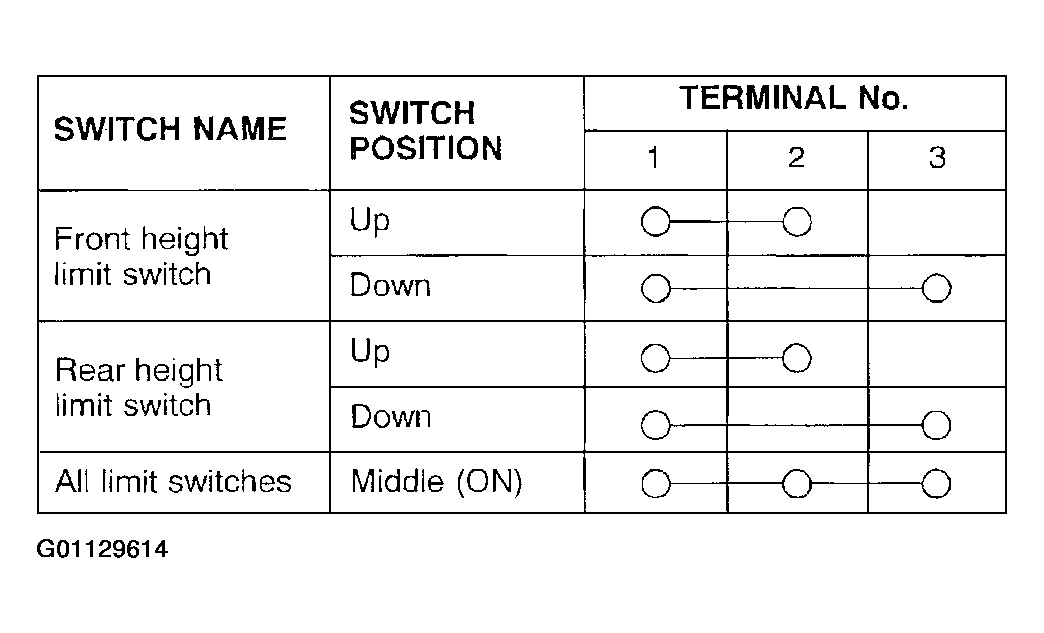

    Fig 2: Limit Switch Continuity
    G01129614Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. If there is a problem, replace the power seat adjuster assembly.
