Remote Control Mirror Assembly Check

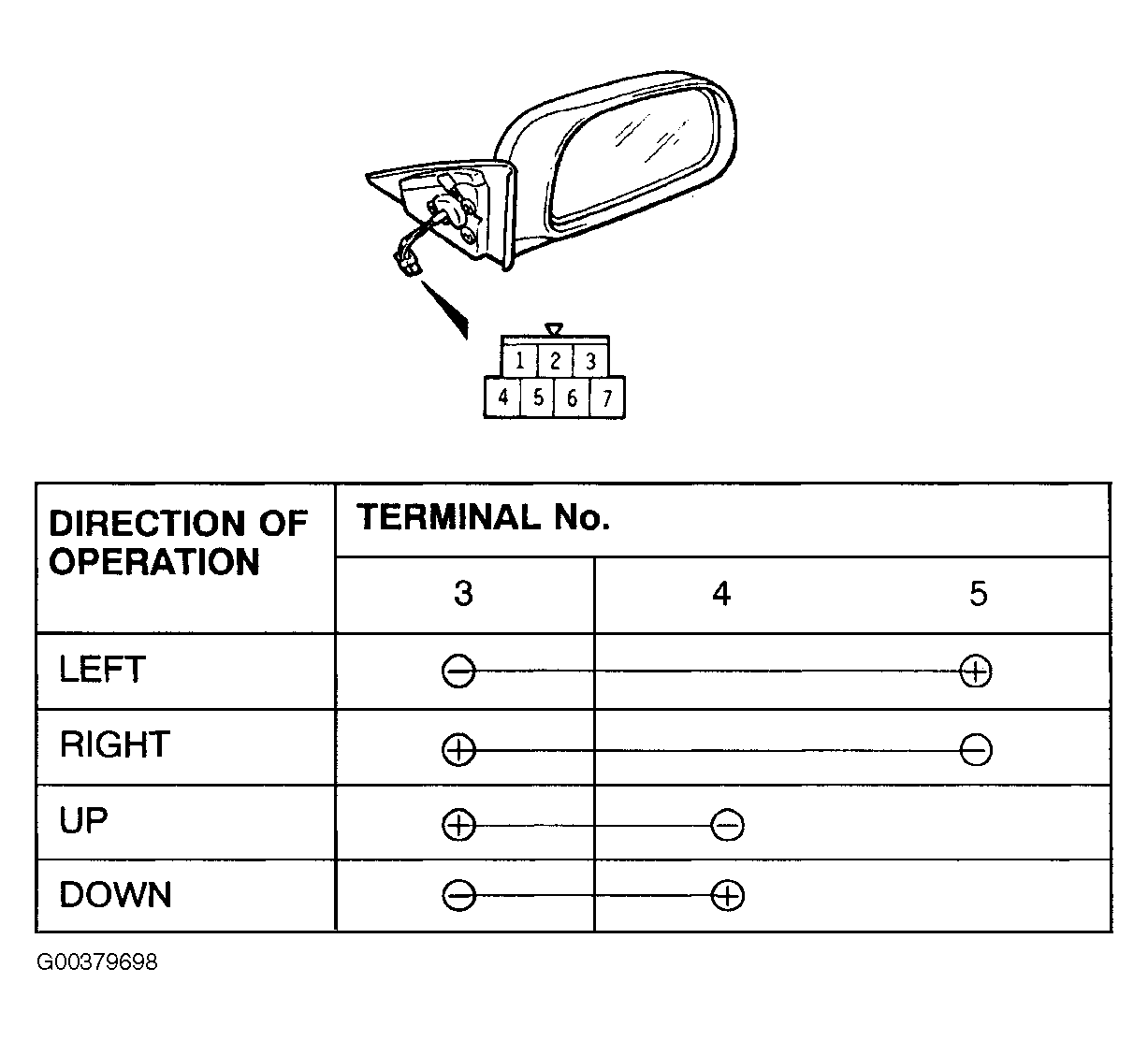

- Ensure that the mirror moves as described in the table when each terminal is connected to the battery.
- On mirrors with heater print lines, check for continuity between terminals 2 and 6.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
