Special Tools: Transfer

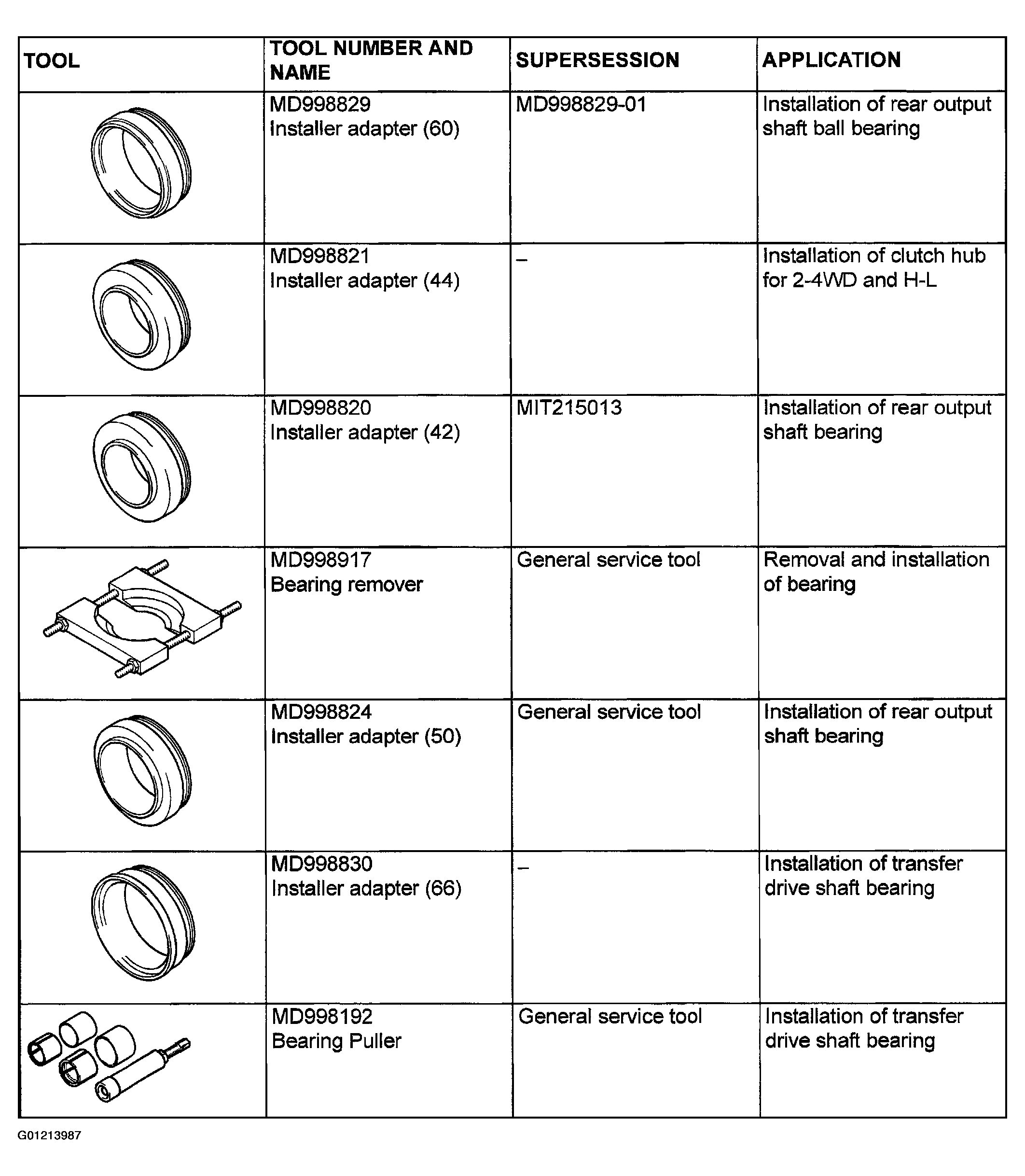

Fig 1: Identifying Transfer Special Tools (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

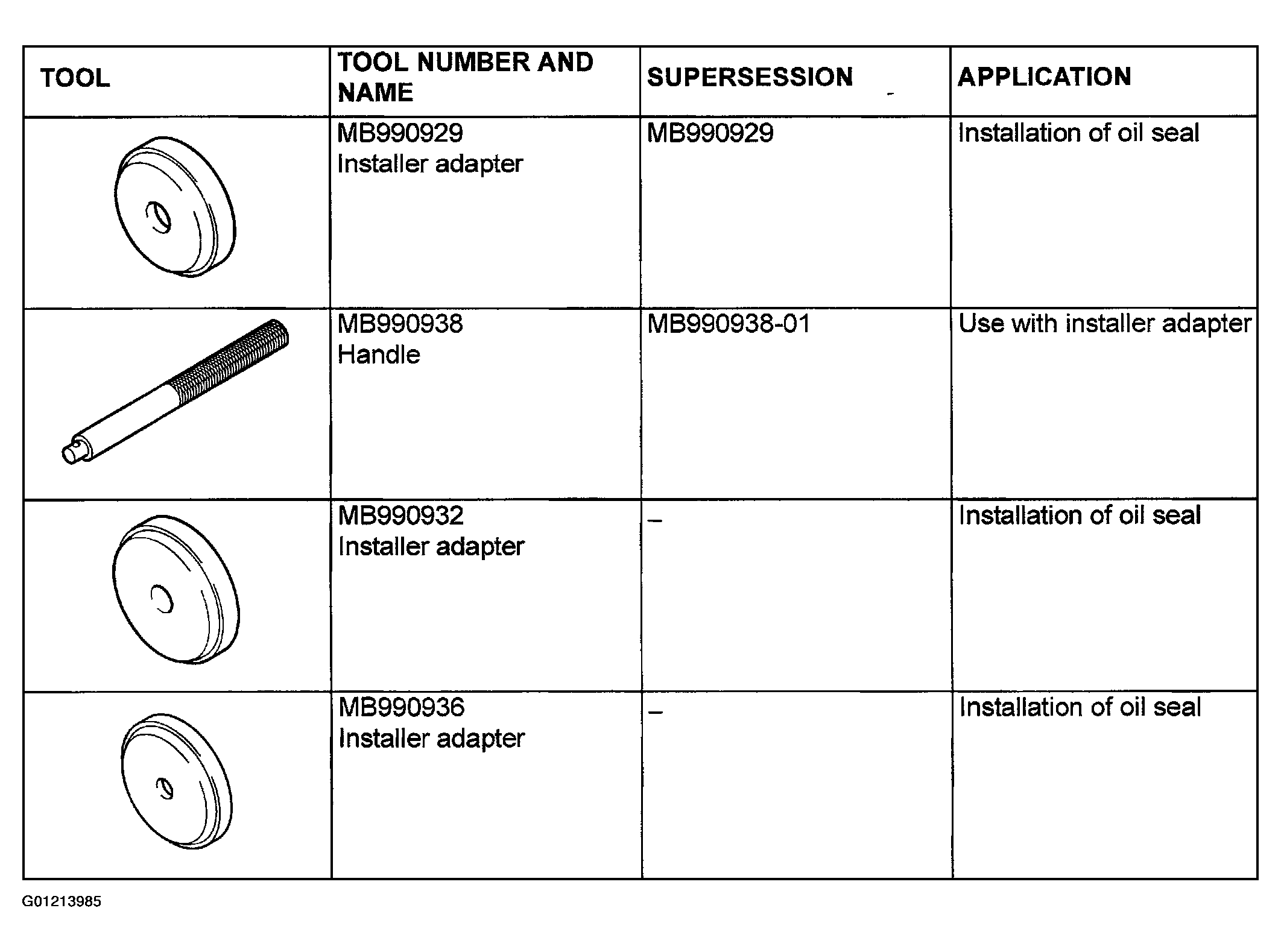

Fig 2: Identifying Transfer Special Tools (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

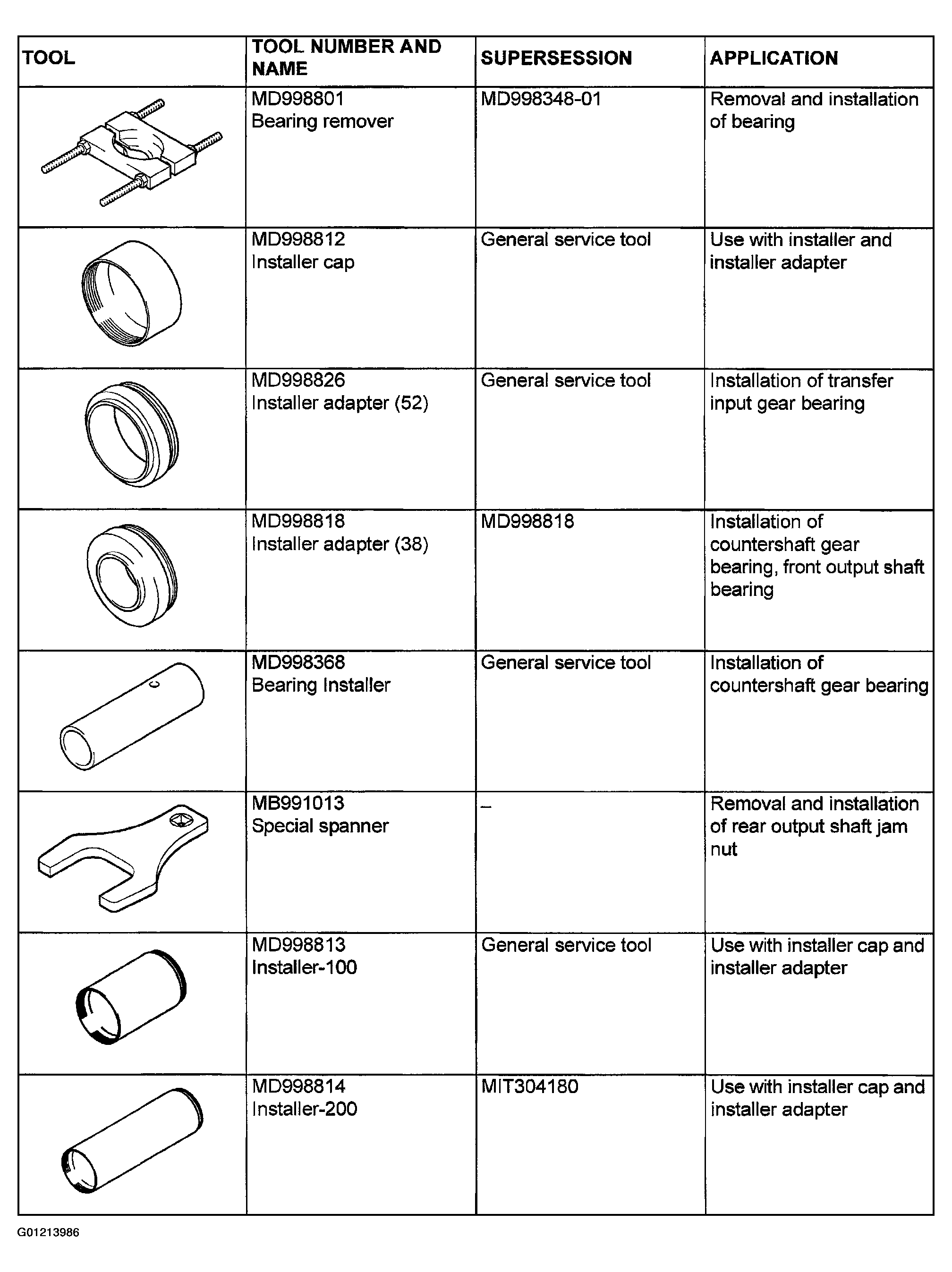

Fig 3: Identifying Transfer Special Tools (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
