Axle Hub Assembly: Installation

To install, reverse removal procedure. Adjust wheel bearing preload, and check drive shaft end play. See WHEEL BEARING  under ADJUSTMENTS.

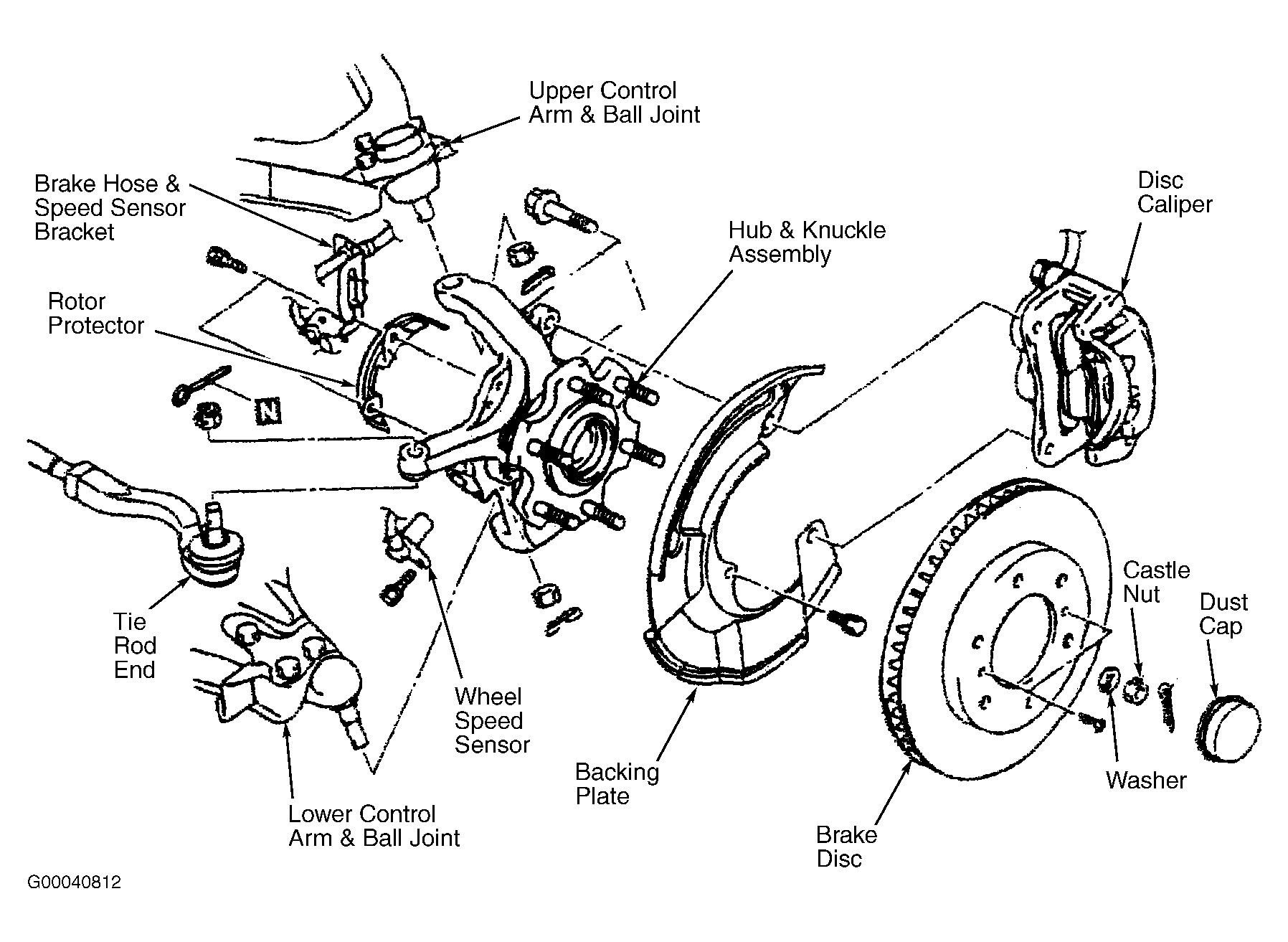

Fig 1: Exploded View Of Hub Assembly (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

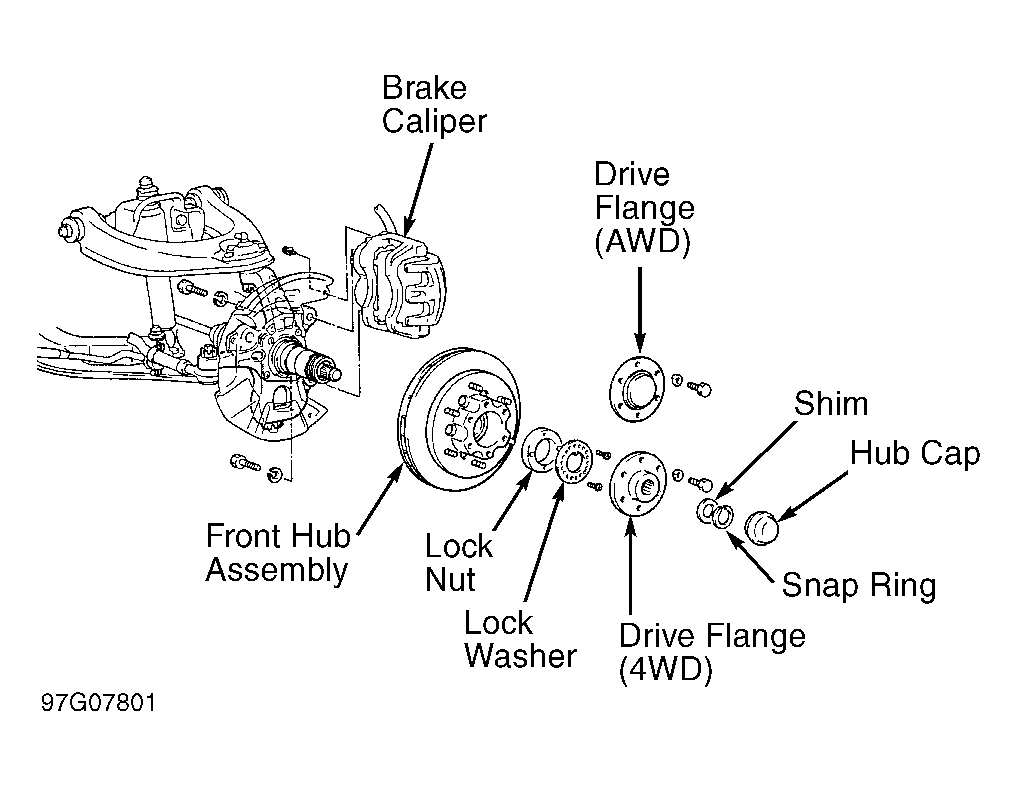

Fig 2: Exploded View Of Hub Assembly (Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
