Front Suspension: Description

Montero uses coil spring-type double wishbone front suspension. Components used with this system include upper control arm, lower control arm, shock absorber, stabilizer bar and steering knuckle. Montero Sport uses independent front suspension with double wishbone construction and torsion bar spring. Components used with this system include upper control arm, lower control arm, shock absorber, stabilizer bar, torsion bar and steering knuckle. See Fig 1 or Fig 2 .

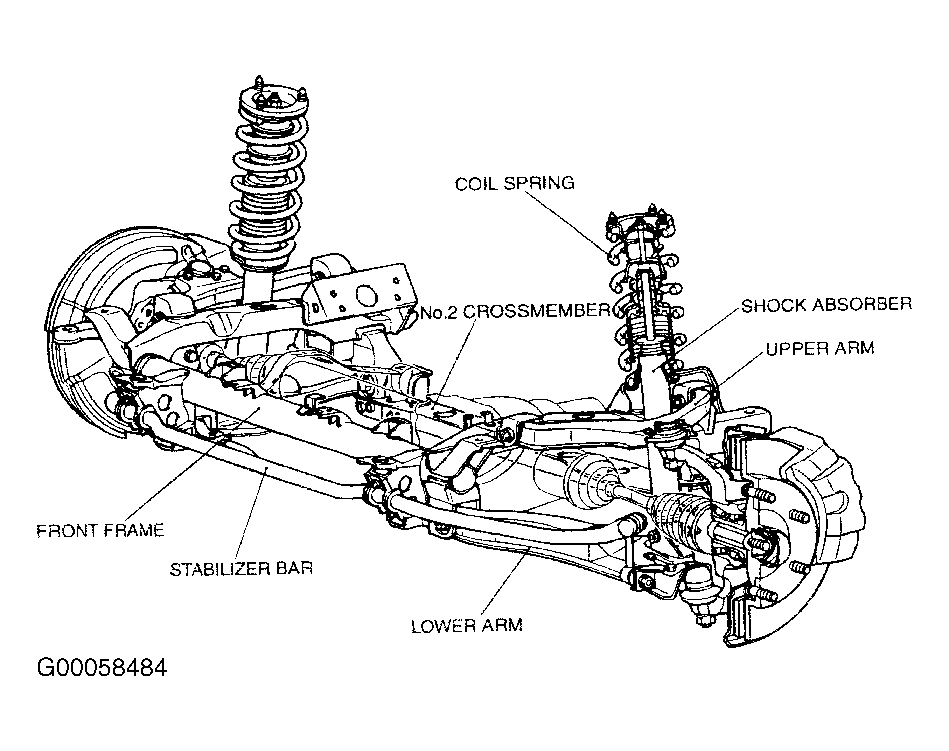

Fig 1: Identifying Front Suspension Components (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

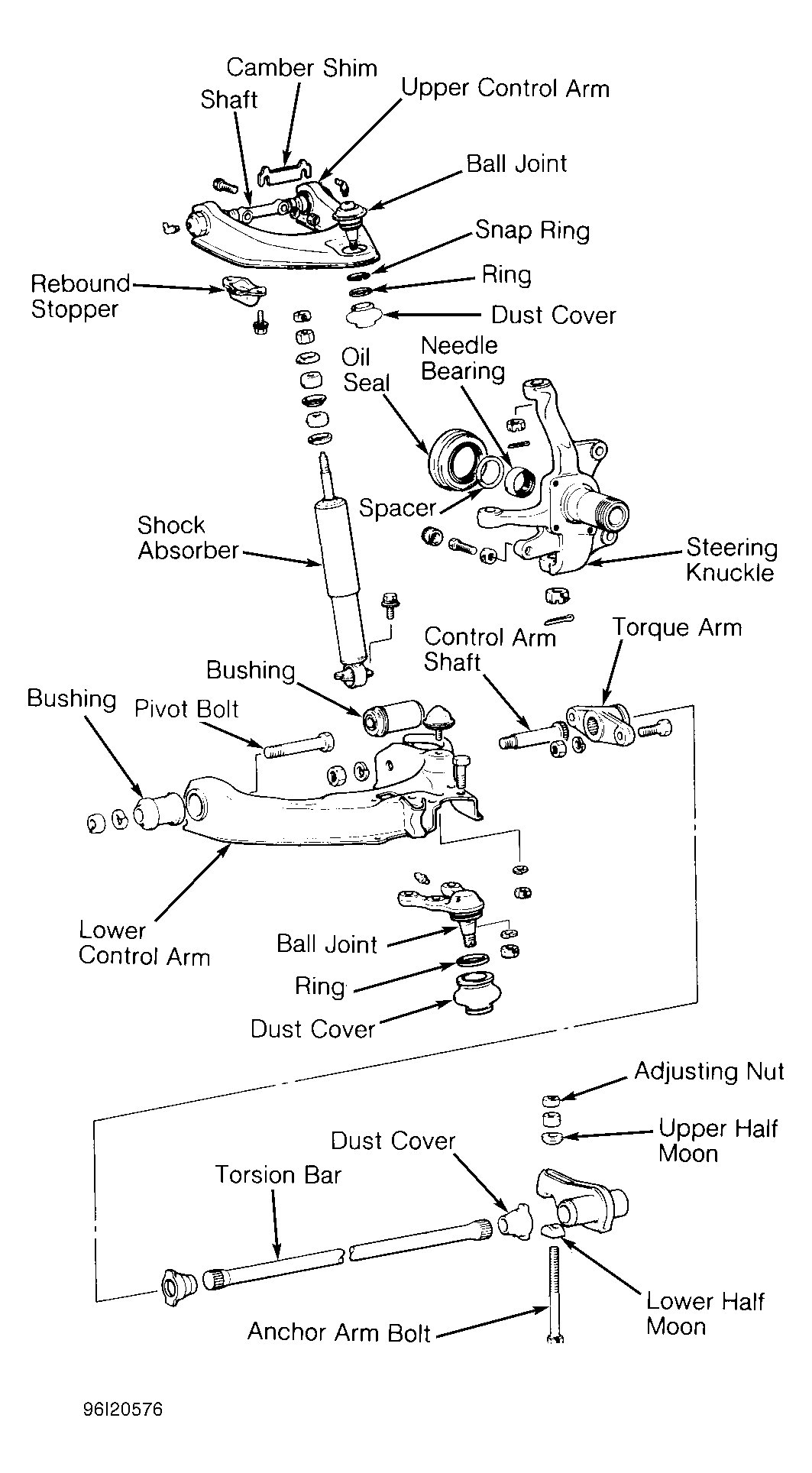

Fig 2: Exploded View Of Front Suspension (Montero Sport - 4WD Shown; RWD Is Similar)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
