Steering Column: Disassembly

Remove clamp bolt from joint assembly. See Fig 1 and Fig 2 or Fig 3 and Fig 4 . Remove assembly. Remove lower boot, upper boot and dust cover from joint assembly. If removing steering lock, back out bolt, using chisel and screwdriver. Remove steering lock and bracket.

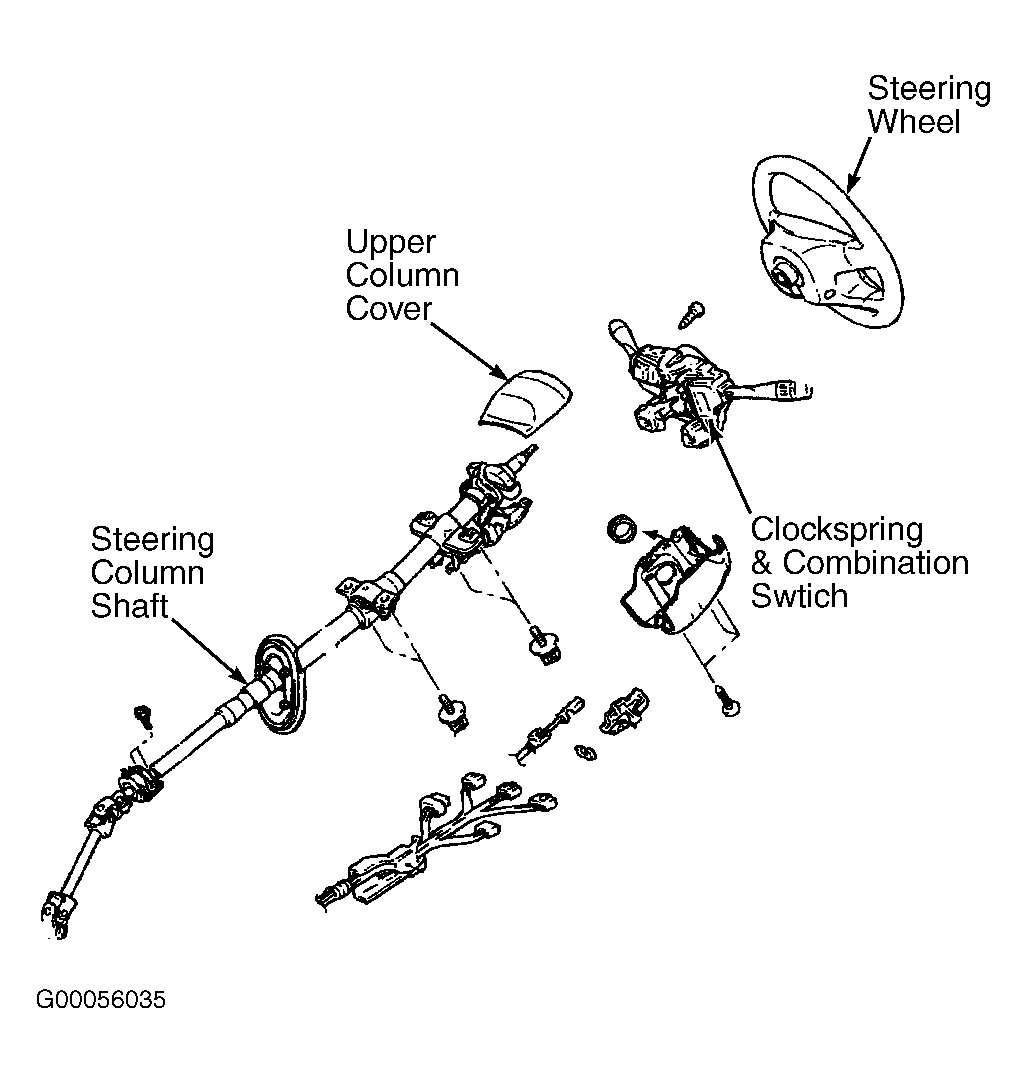

Fig 1: Exploded View Of Steering Column (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

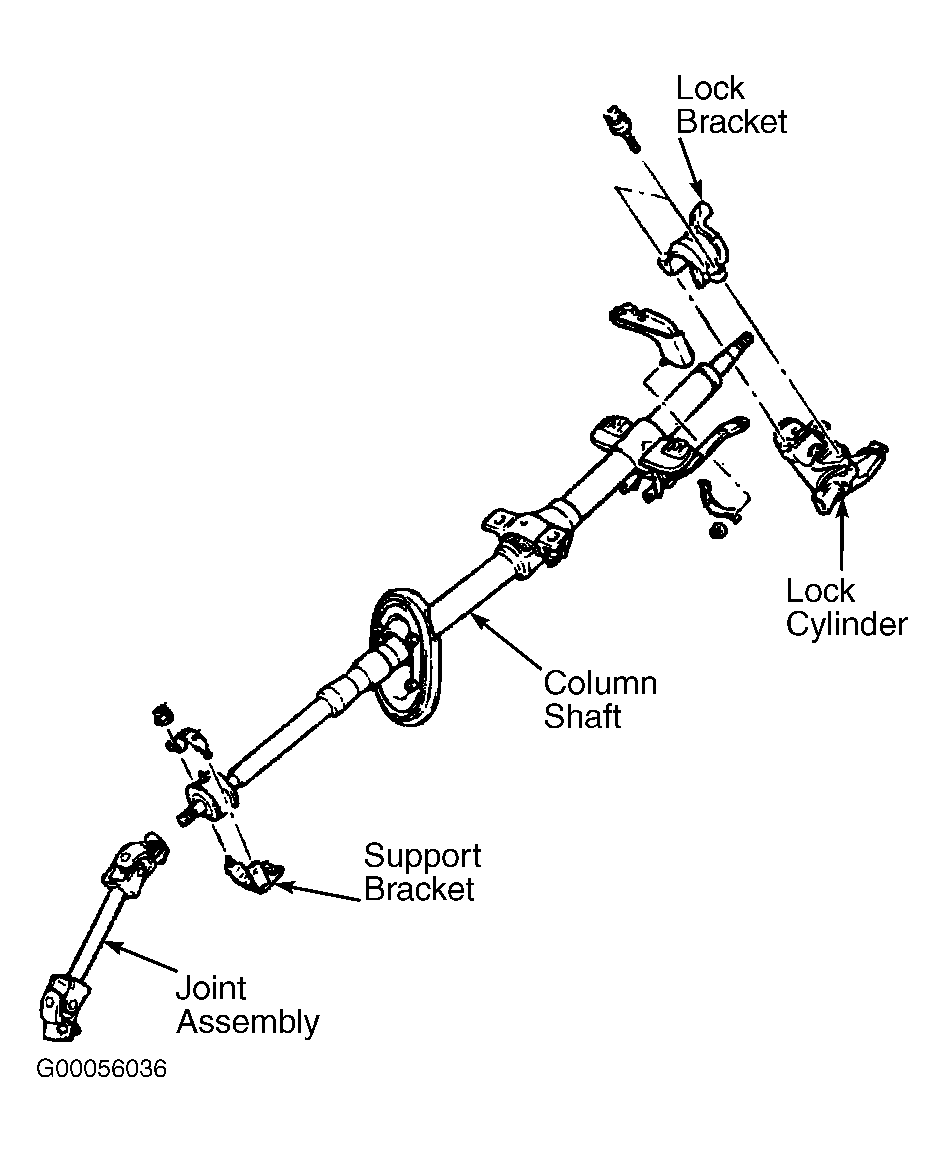

Fig 2: Exploded View Of Lower Steering Column (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

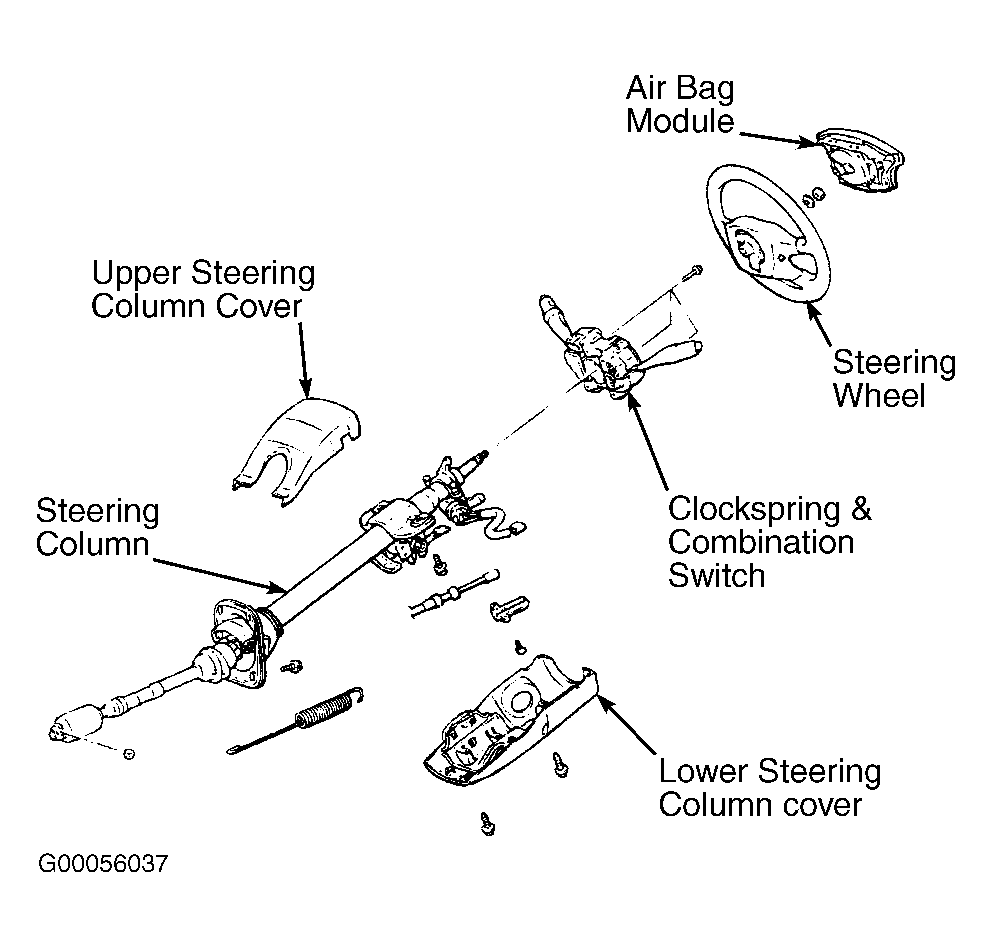

Fig 3: Exploded View Of Steering Column (Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

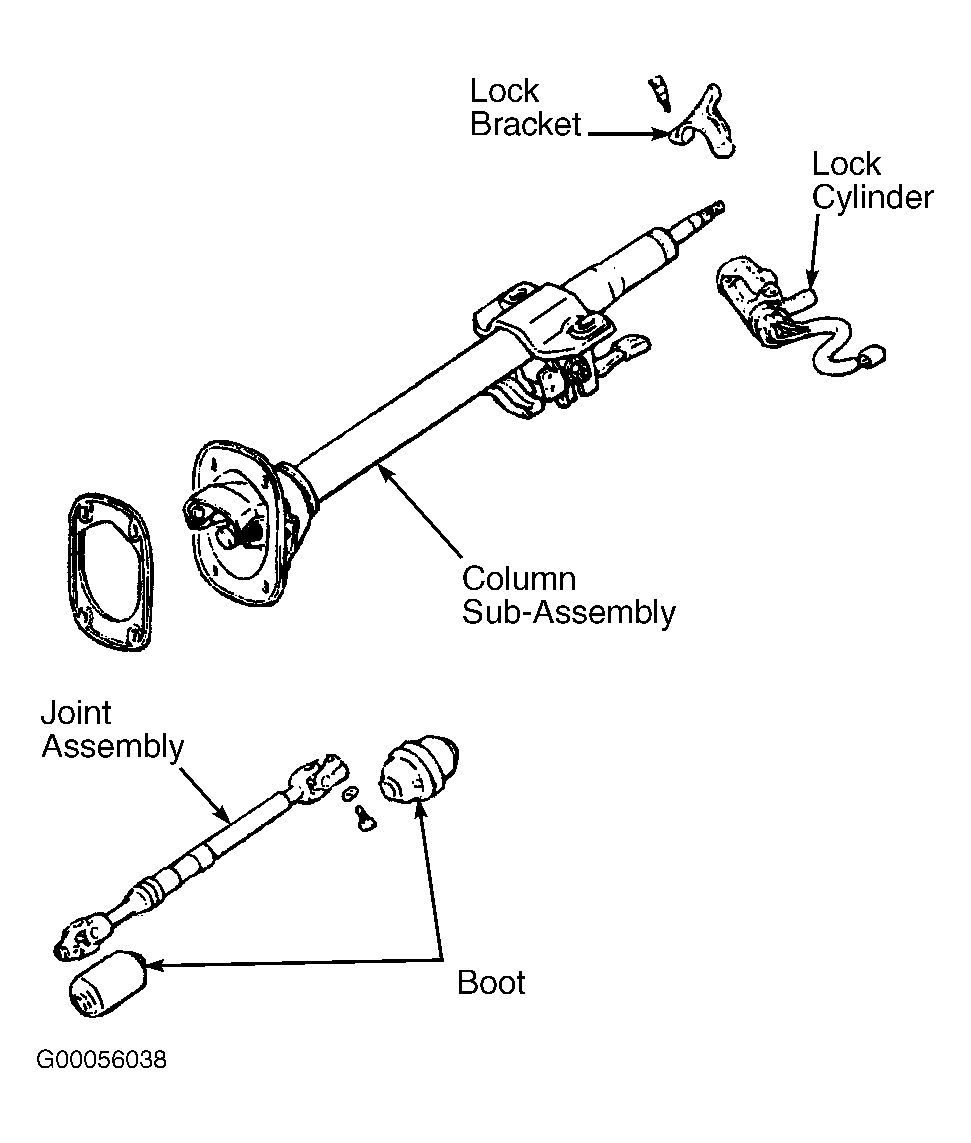

Fig 4: Exploded View Of Lower Steering Column (Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
