Fastener Tightening Specifications

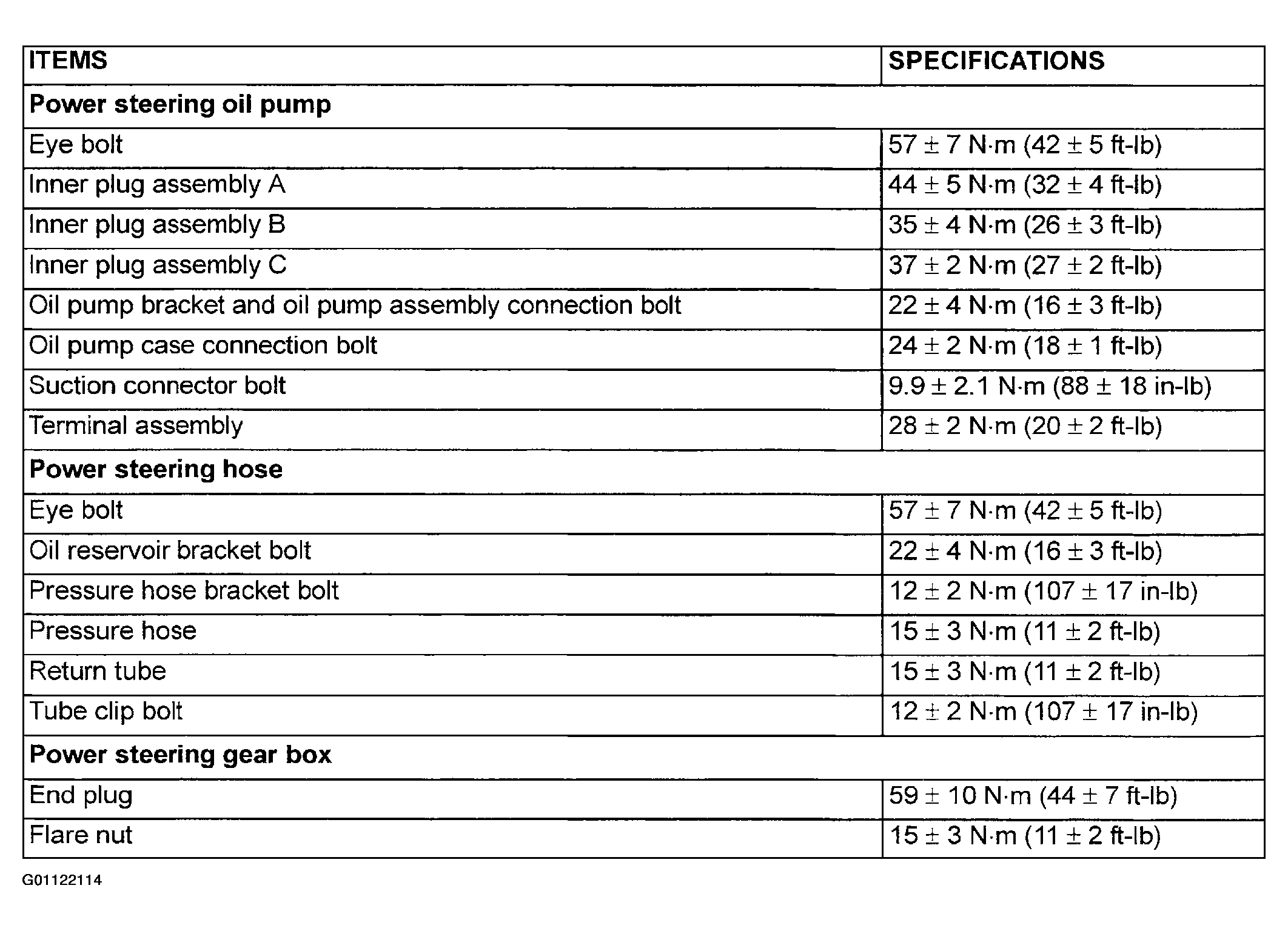

Fig 1: Power Steering Fastener Torque Specifications (1 Of 2)
G01122114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

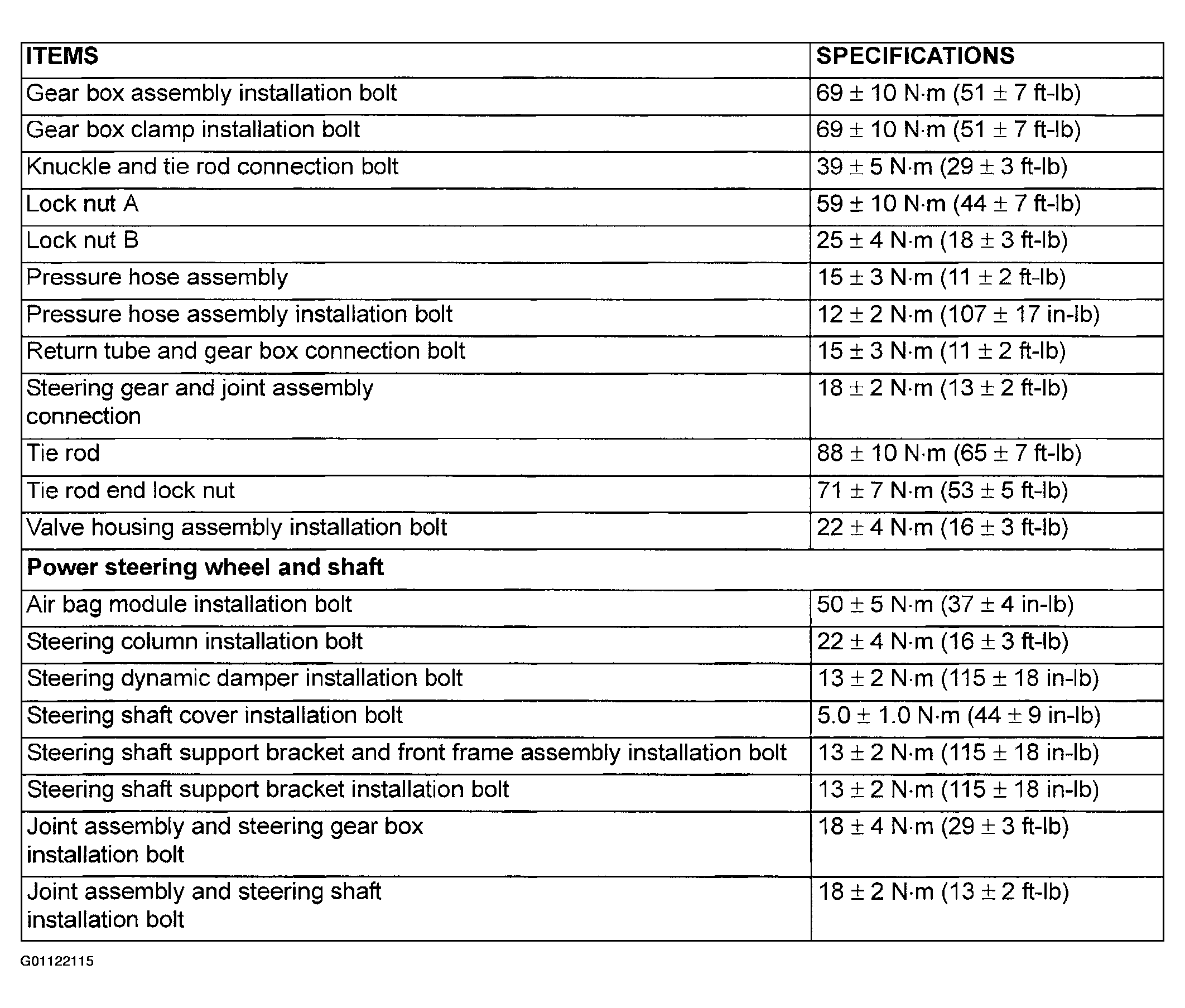

Fig 2: Power Steering Fastener Torque Specifications (2 Of 2)
G01122115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
