Pin Voltage Tests

NOTE: For ABS-ECU pin voltage tests, refer to Figure, Figure, Fig 1 and Fig 2 .

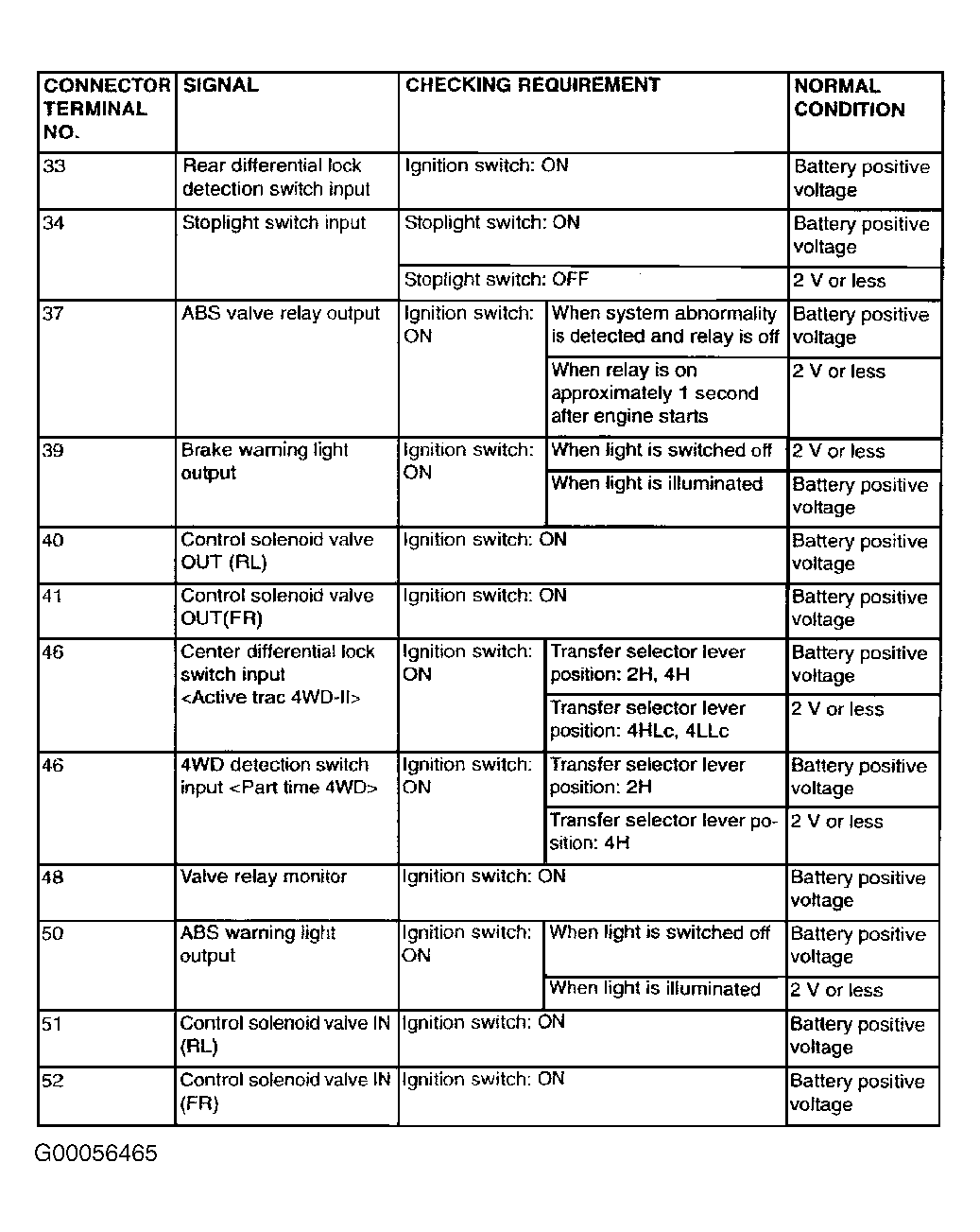

Fig 1: ABS-ECU Pin Voltage Test (1 of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

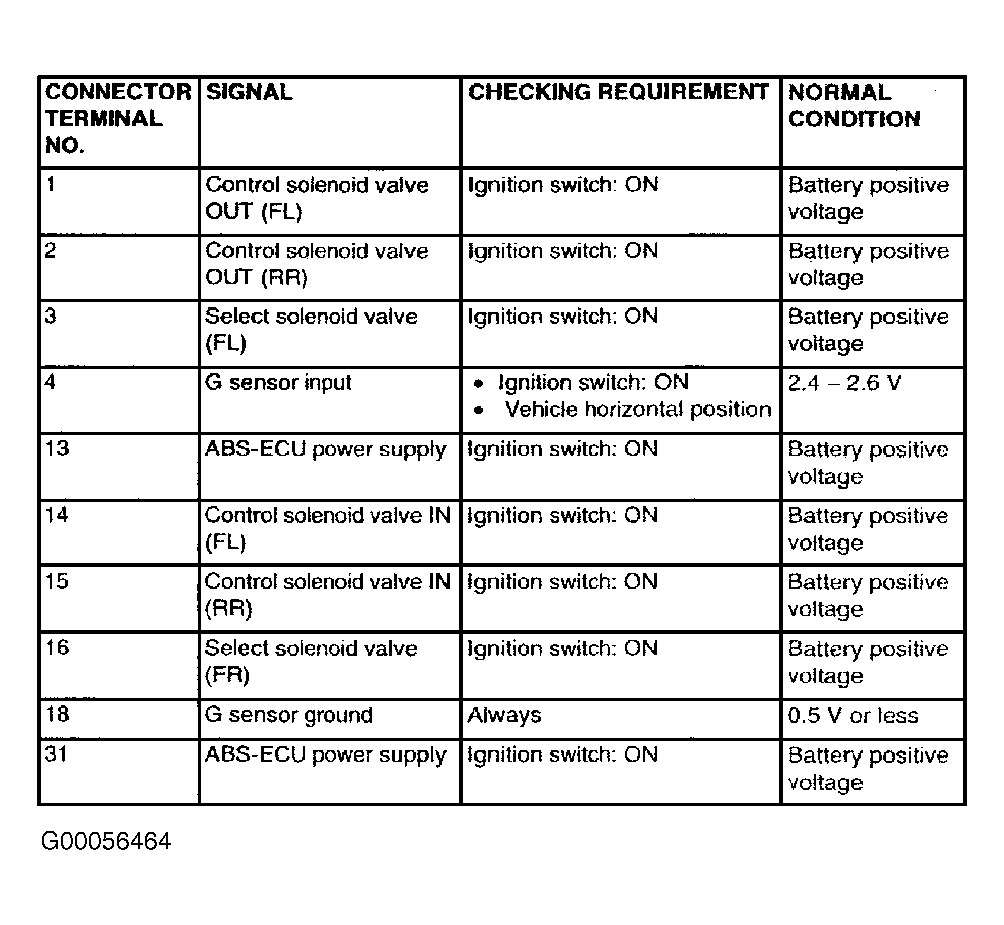

Fig 2: ABS-ECU Pin Voltage Test (2 of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
