Pcm Reprogramming For 2-3 Shift Flare (TSB-01-23-007REV)

Publication date: 2001-11-01
Reference number: TSB-01-23-007REV
Supersedes refnos: TSB-01-23-007

PCM REPROGRAMMING FOR 2-3 SHIFT FLARE

PCM REPROGRAMMING FOR 2-3 SHIFT FLARE

TECHNICAL SERVICE BULLETIN

Reference Number(s): TSB-01-23-007REV, Date of Issue:  November, 2001
MITSUBISHI: 2001 Montero; 1999-2001 Montero Sport
GROUP: 23 - Automatic Transmission
AFFECTED VEHICLES: 2001 Montero models produced before 8/3/00 equipped with automatic transmission; 1999-2001 Montero Sport models produced before 1/19/01 equipped with automatic transmission
Superceded Bulletin(s): TSB-01-23-007, Date of Issue:  March, 2001
NOTE: This bulletin supersedes TSB-01-23-007, issued March, 2001, to correct ROM pack database numbers, MUT-II screen representations and displays.

DESCRIPTION

PCM Reprogramming For 2-3 Shift Flare

BULLETIN CONTENT

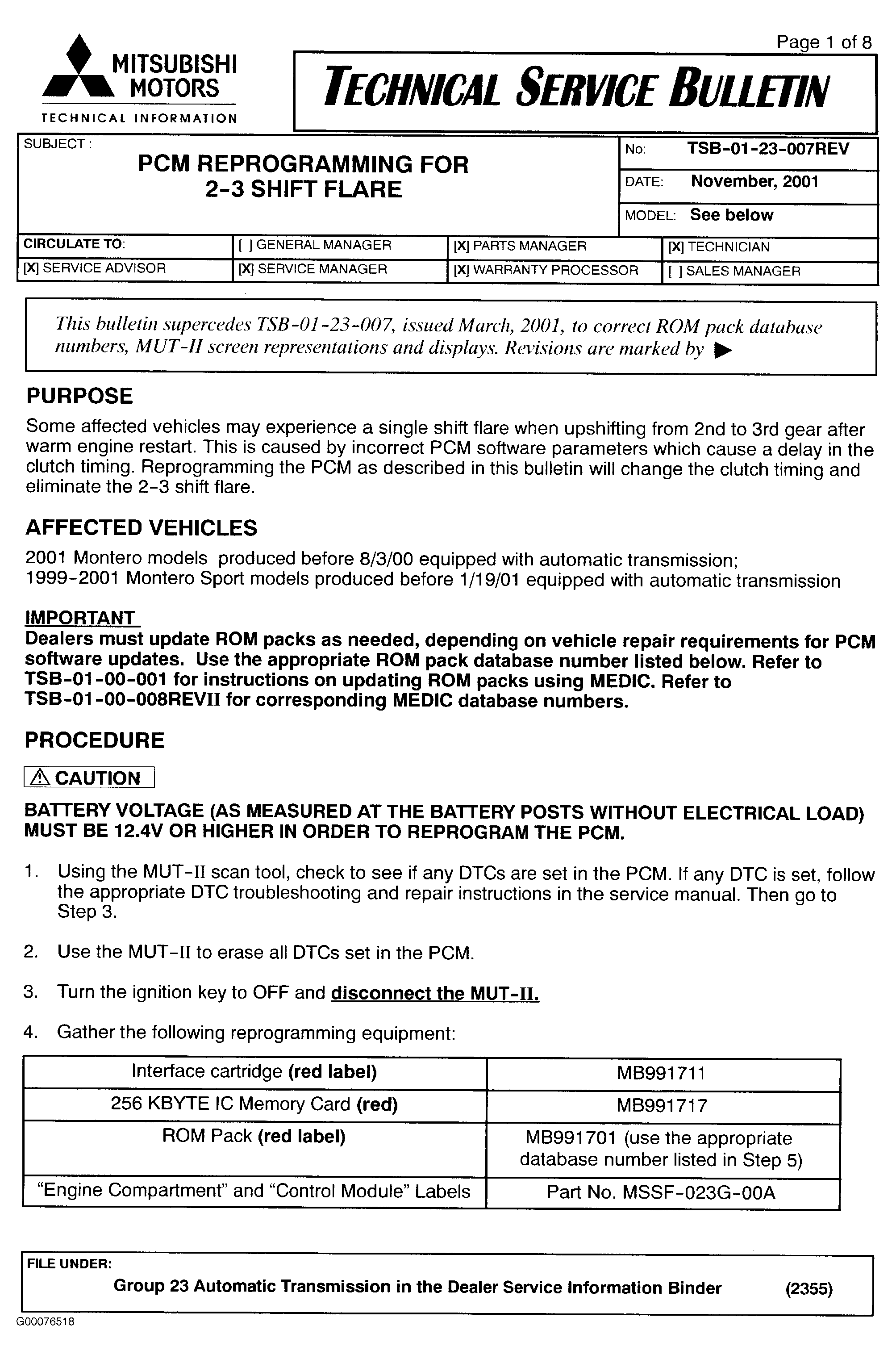

Fig 1: Page 1 of Bulletin
G00076518

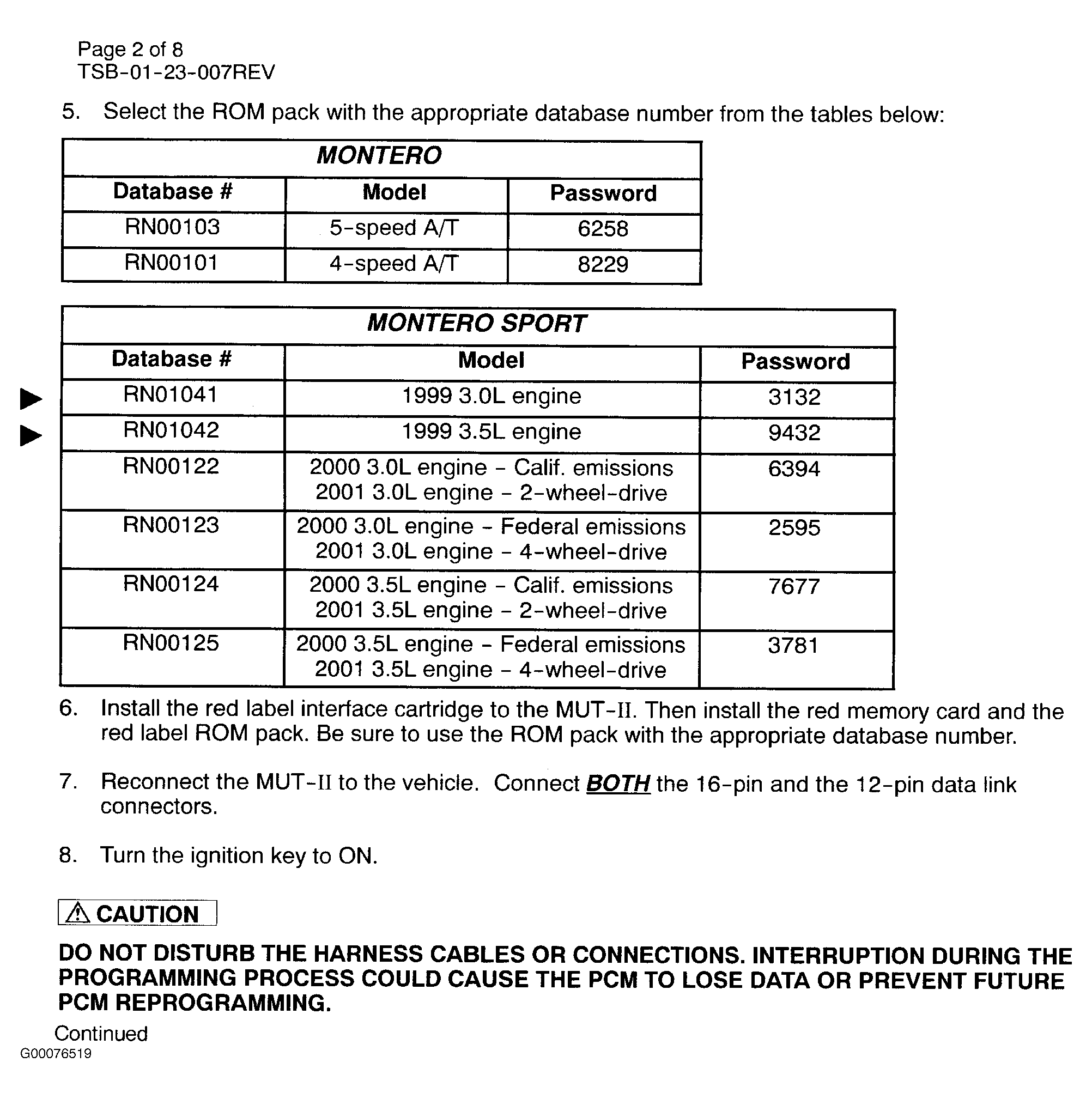

Fig 2: Page 2 of Bulletin
G00076519

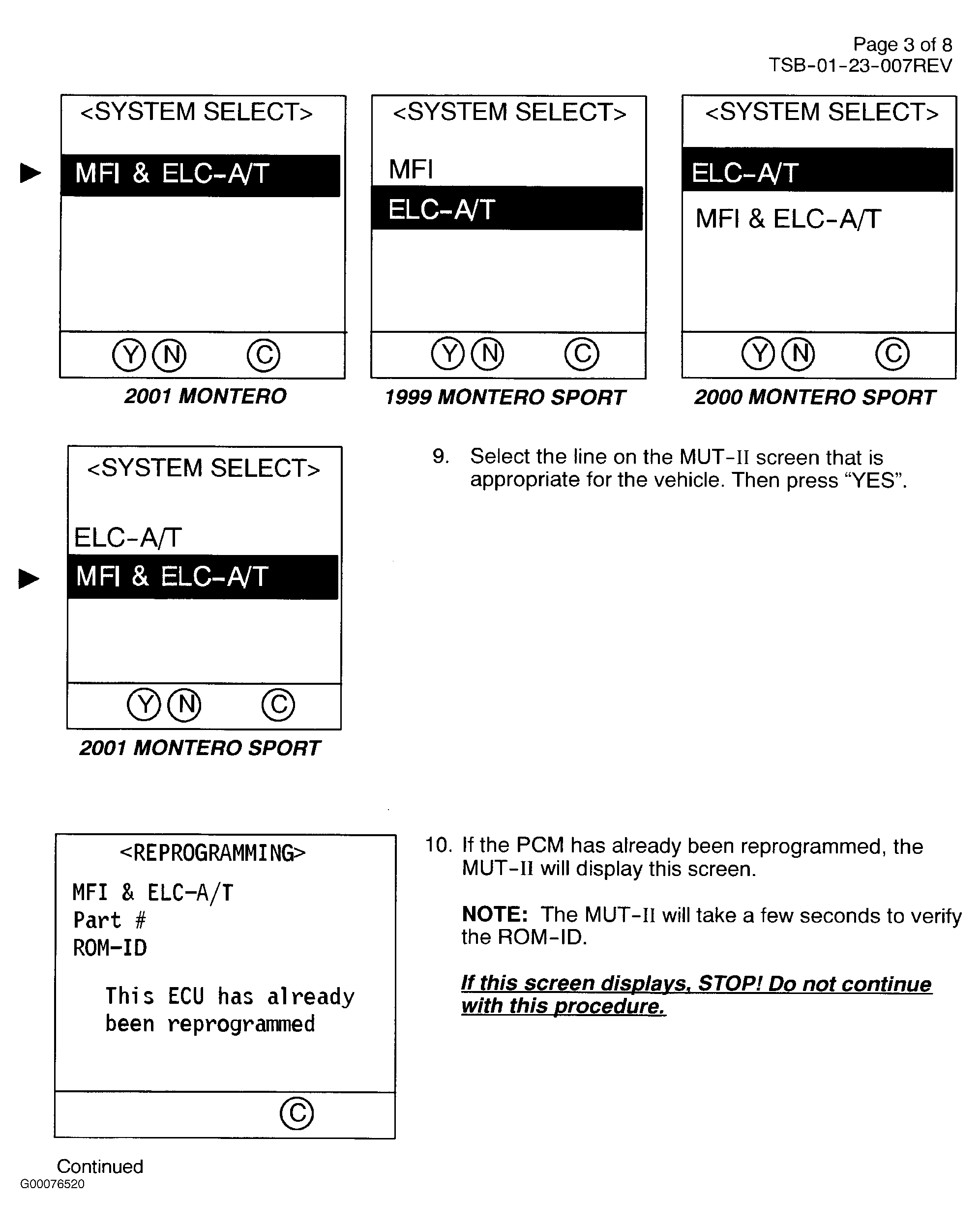

Fig 3: Page 3 of Bulletin
G00076520

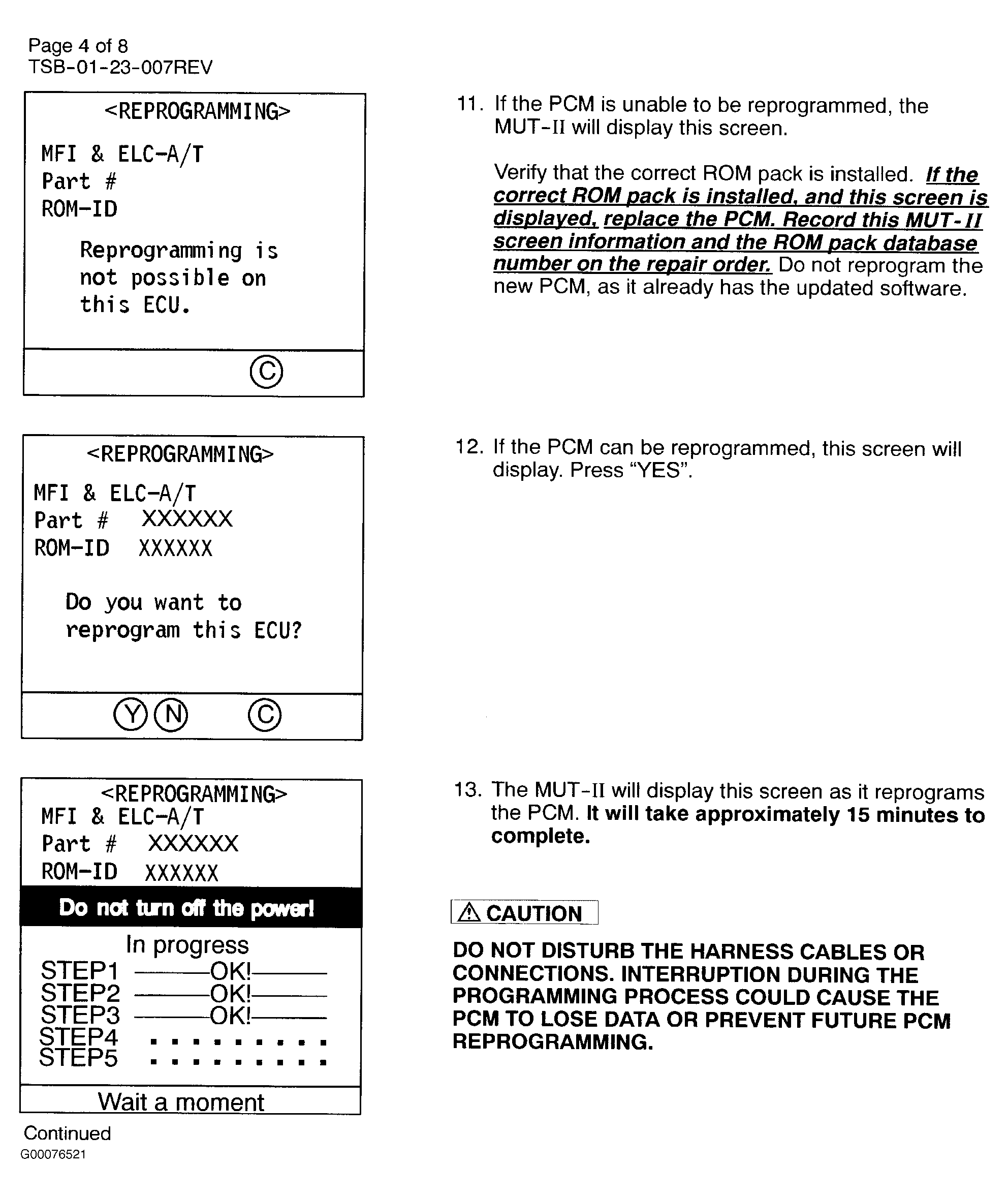

Fig 4: Page 4 of Bulletin
G00076521

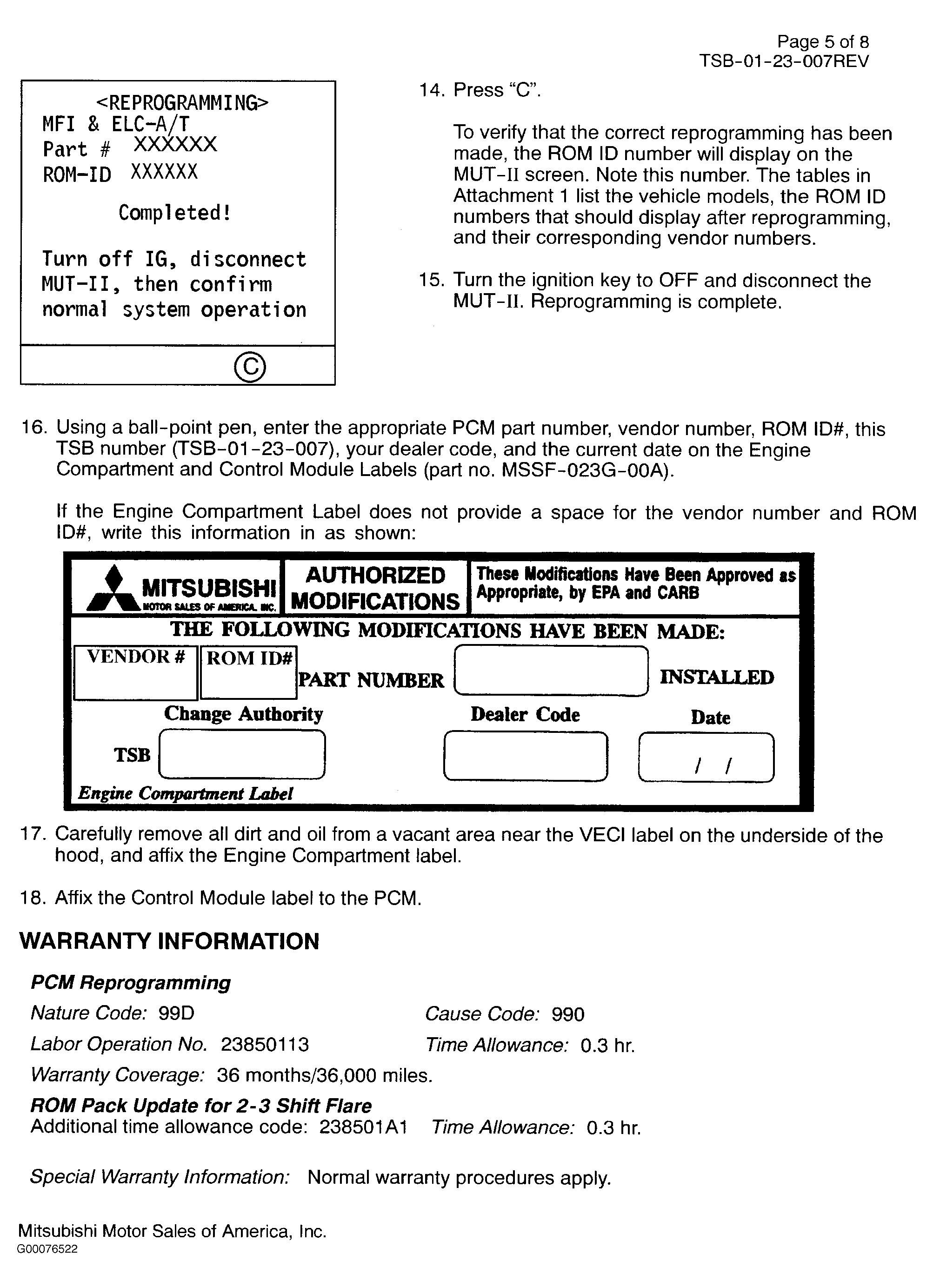

Fig 5: Page 5 of Bulletin
G00076522

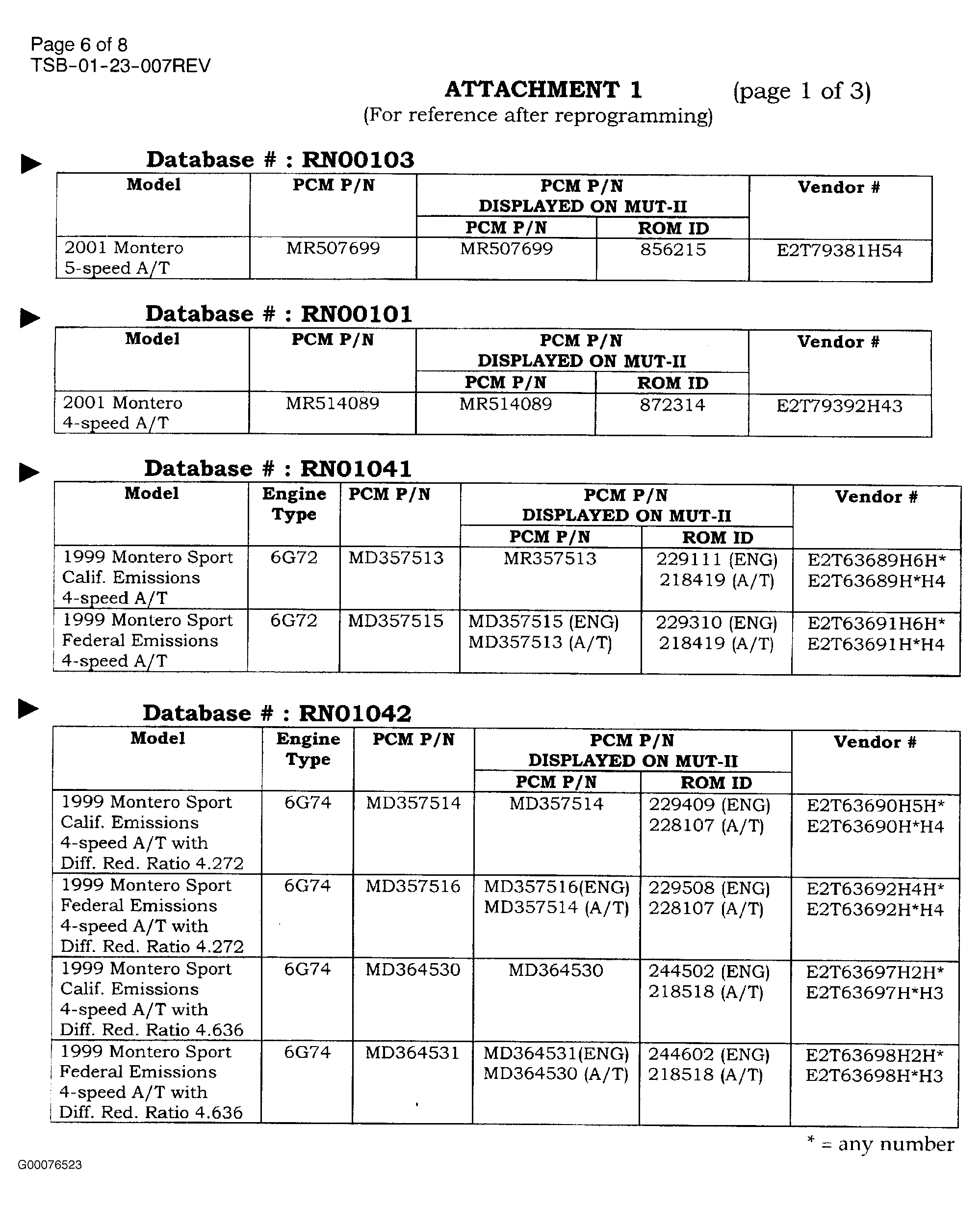

Fig 6: Page 6 of Bulletin
G00076523

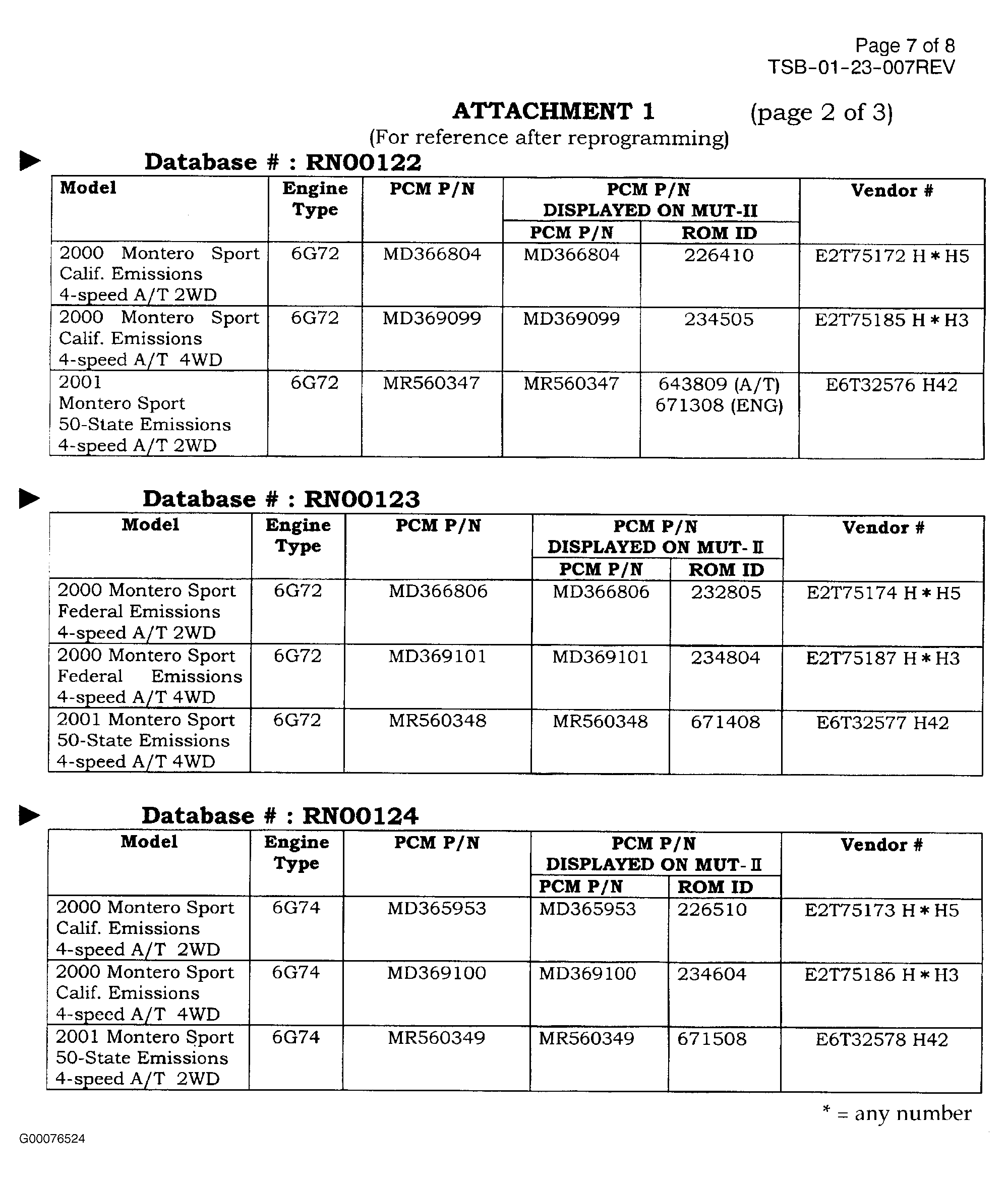

Fig 7: Page 7 of Bulletin
G00076524

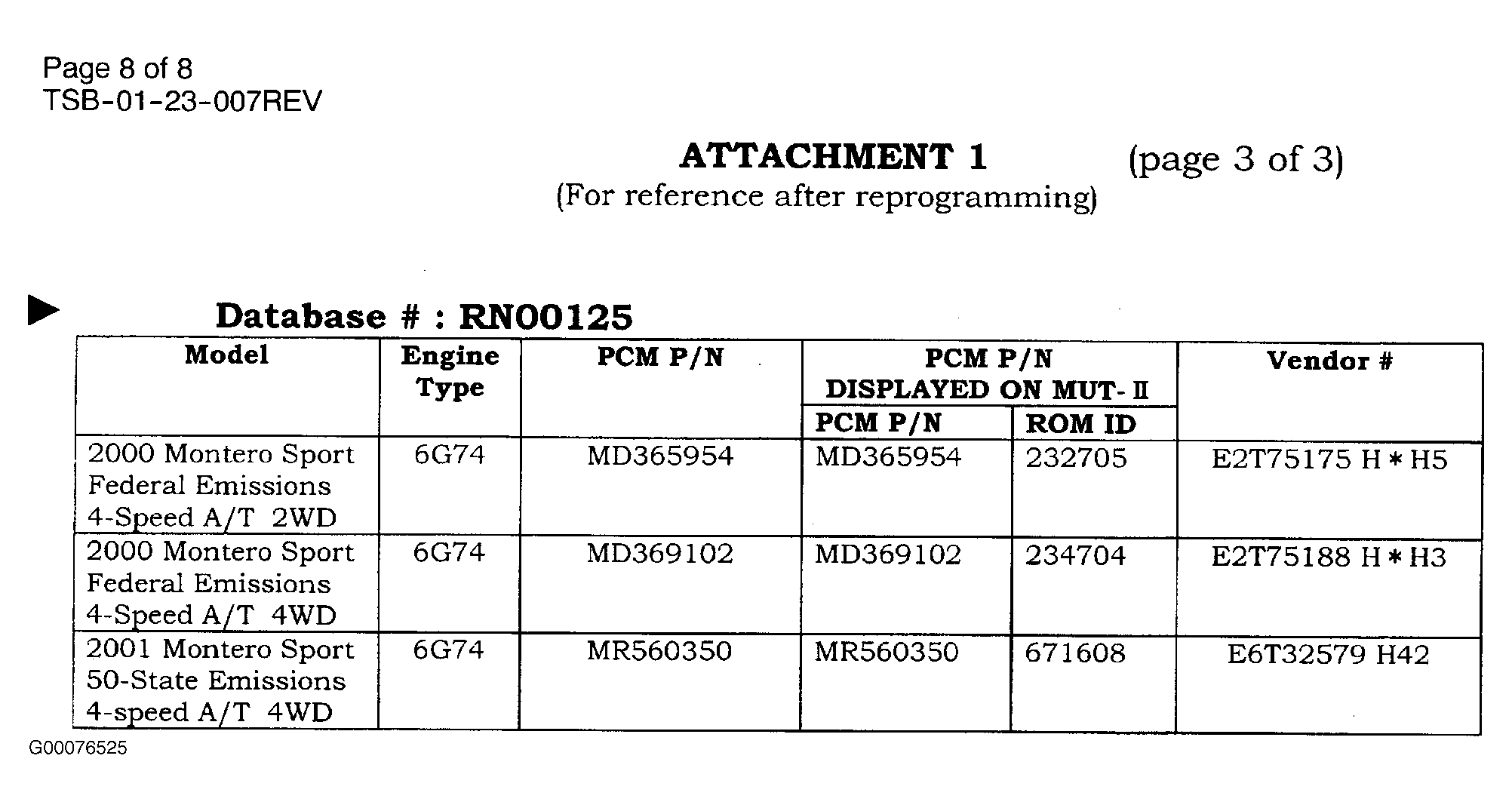

Fig 8: Page 8 of Bulletin
G00076525
