>B< Lock Pin Installation

Install the lock pin so that it will be oriented in the direction.

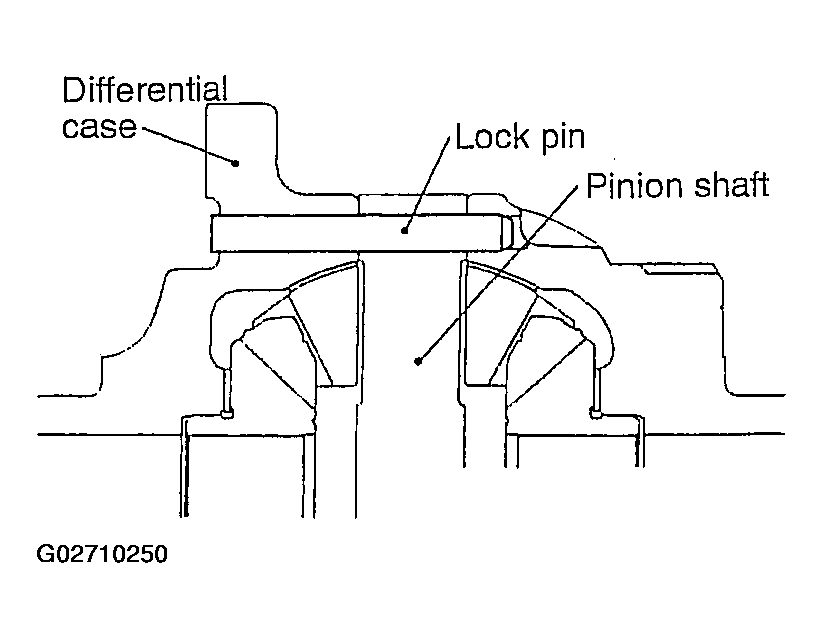

Fig 1: Installing Lock Pin

G02710250

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
