Motor Relay

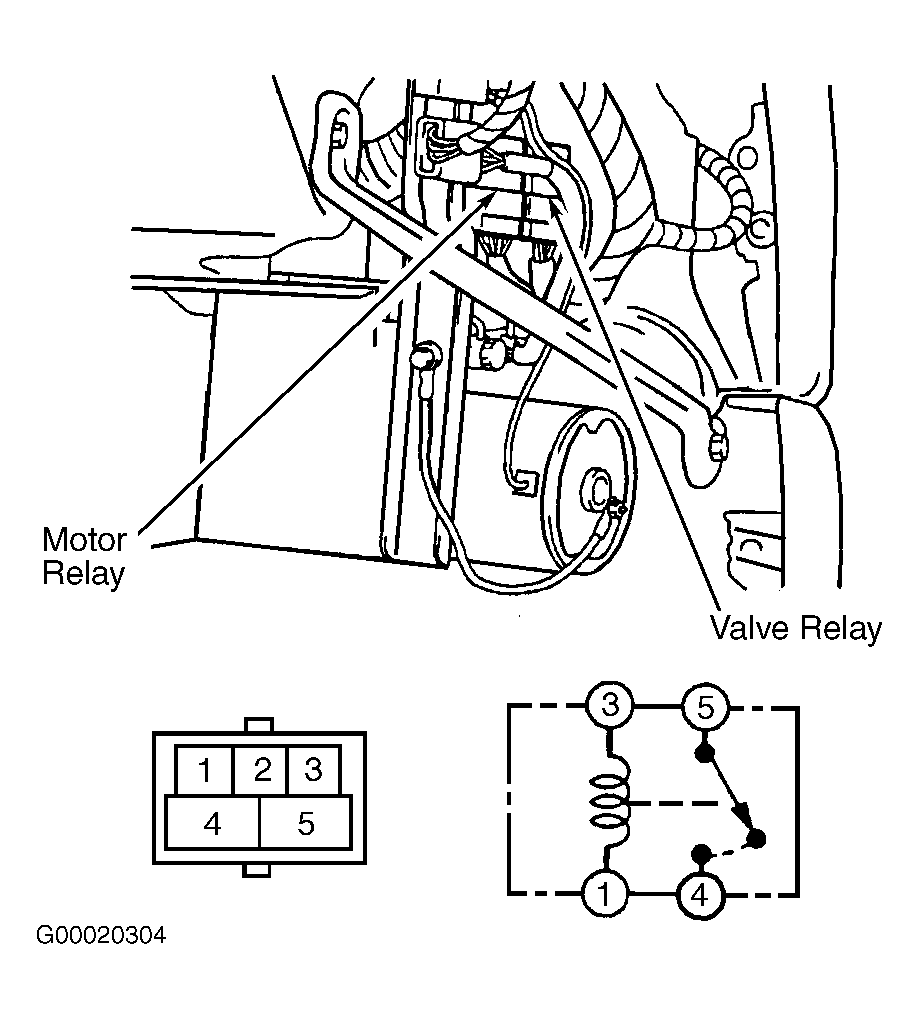

Remove ABS motor relay from relay box in engine compartment. Using a DVOM, check for continuity between relay terminals No. 1 and 3. See Figure . If continuity does not exist, replace relay. Apply battery positive to terminal No. 1 and battery ground to terminal No. 3. Continuity should exist between terminals No. 2 and No. 5. If continuity does not exist, replace motor relay.
