Home >> Mitsubishi >> 2001 >> Galant LS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> UNDERDRIVE Clutch And Input Shaft >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

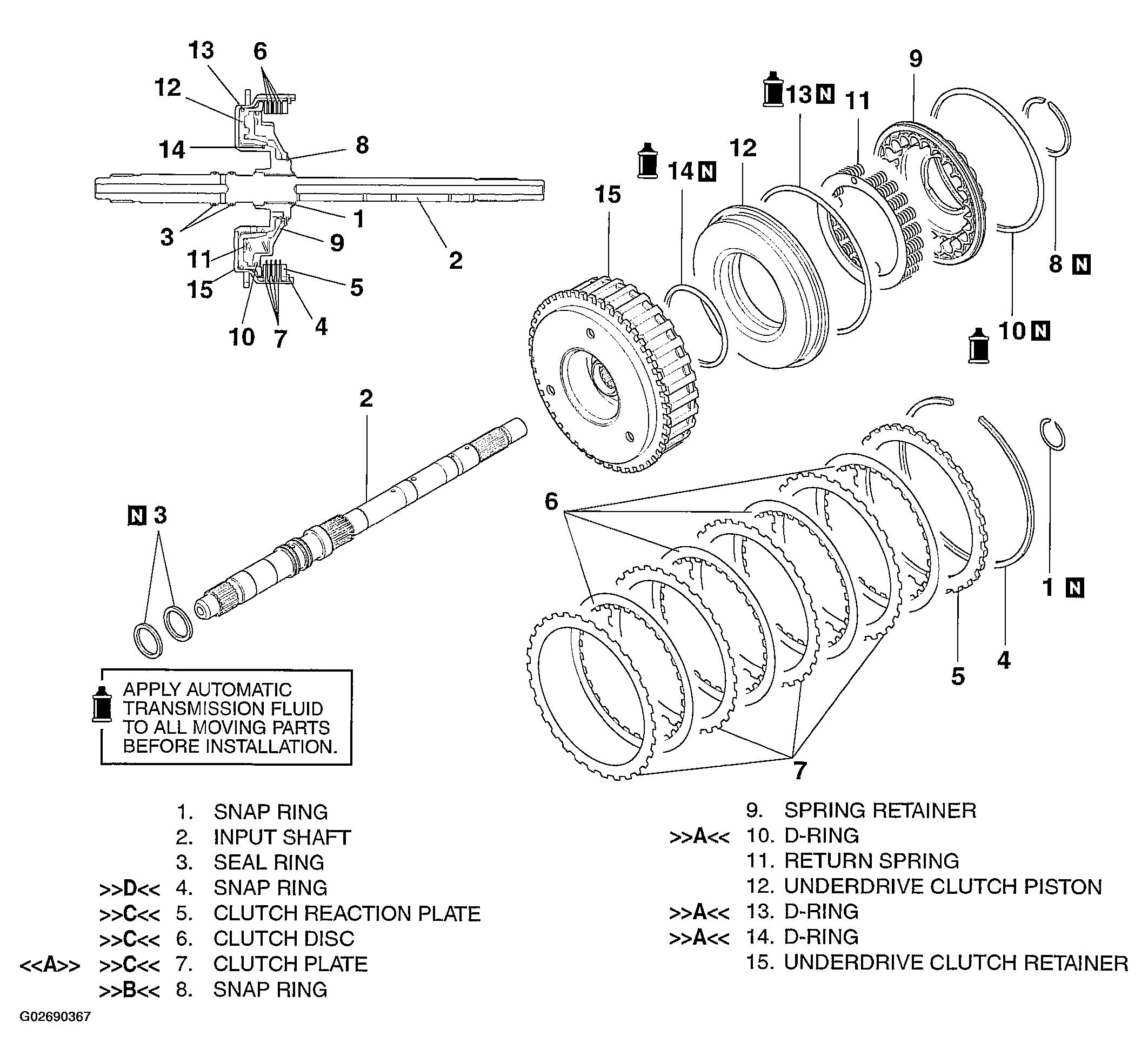

Fig 1: Exploded View Of Underdrive Clutch & Input Shaft Components

G02690367
