Home >> Mitsubishi >> 2001 >> Galant LS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Special Tools

Special Tools

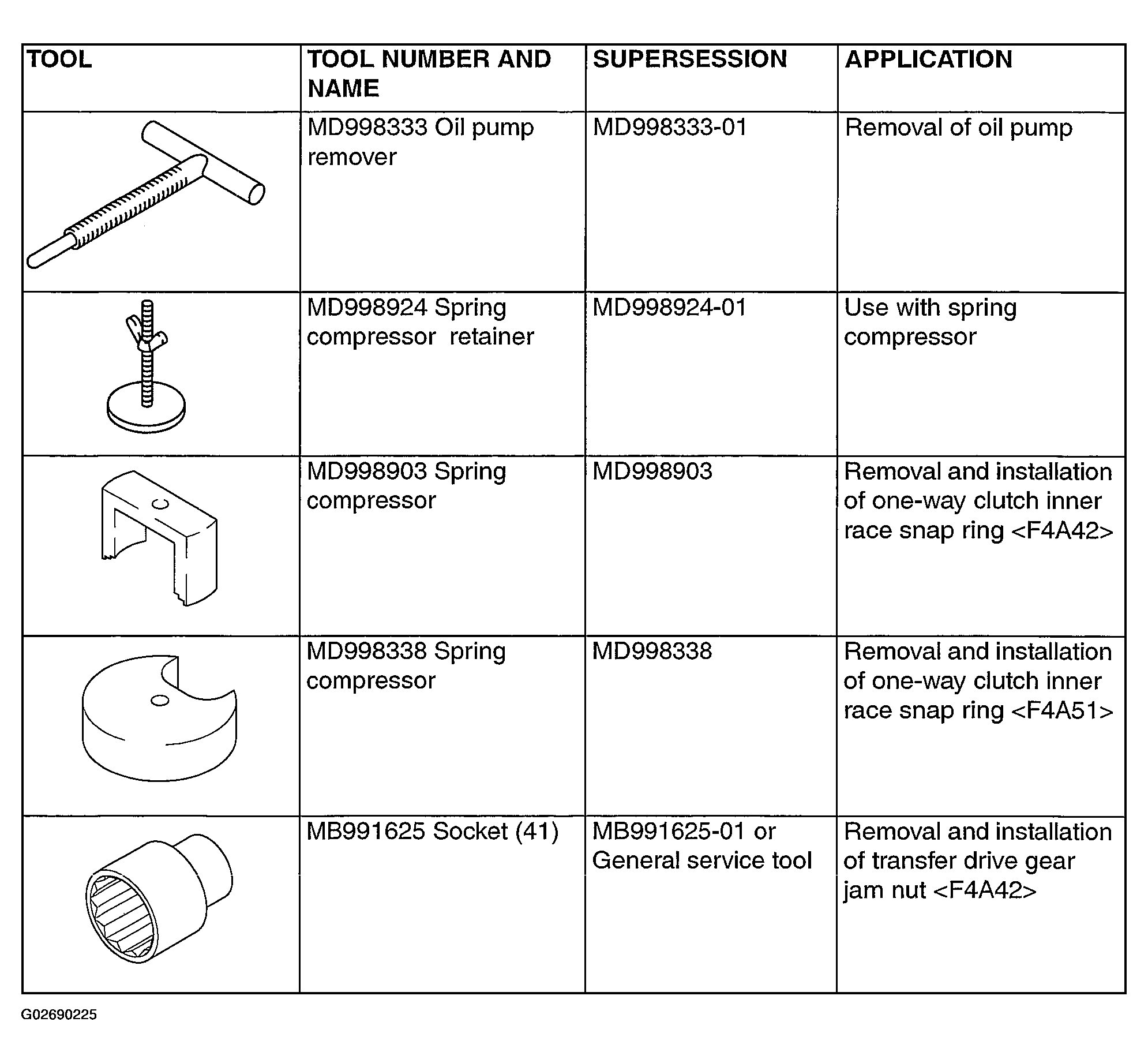

Fig 1: Special Tools (1 Of 5)

G02690225

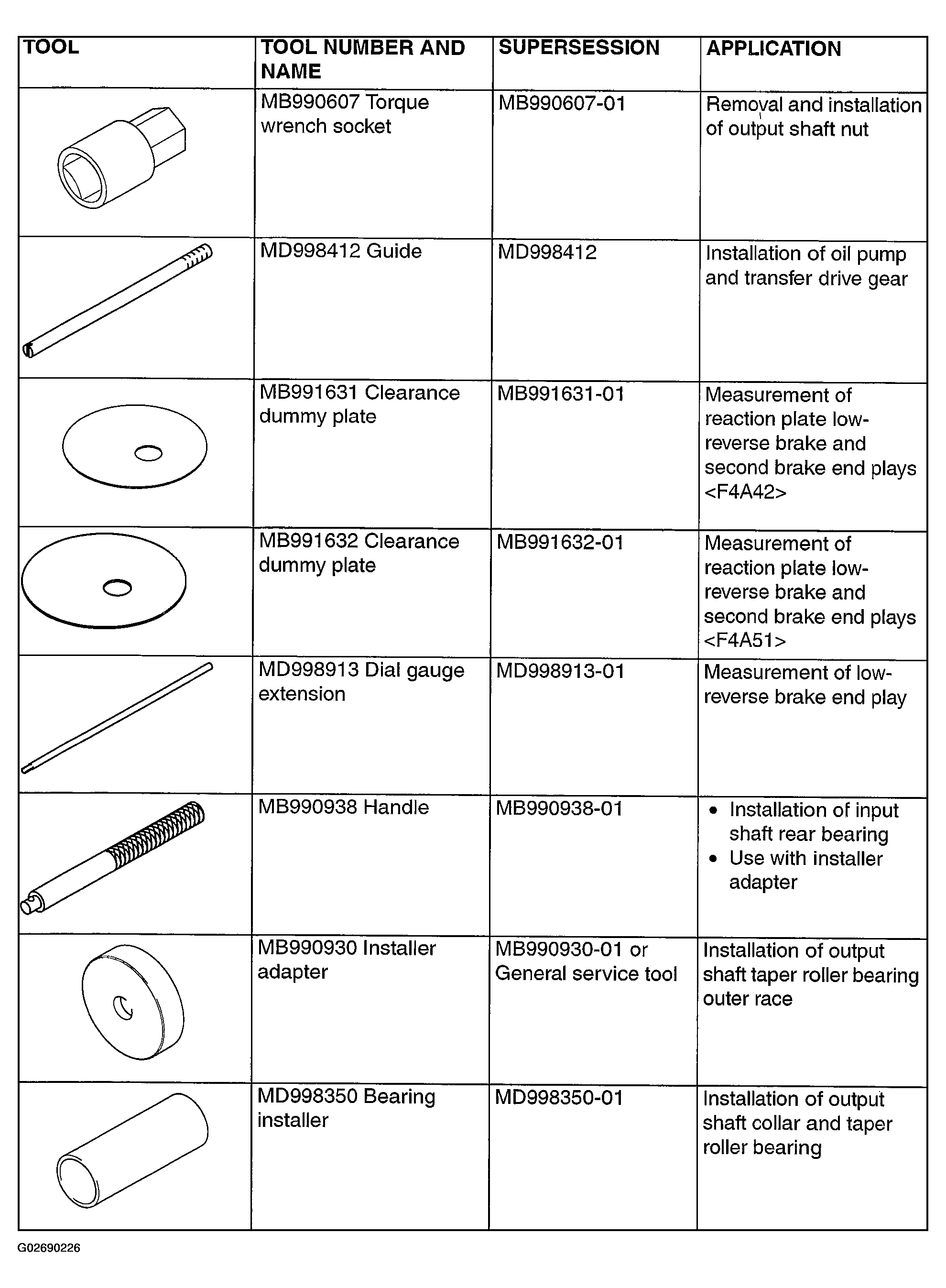

Fig 2: Special Tools (2 Of 5)

G02690226

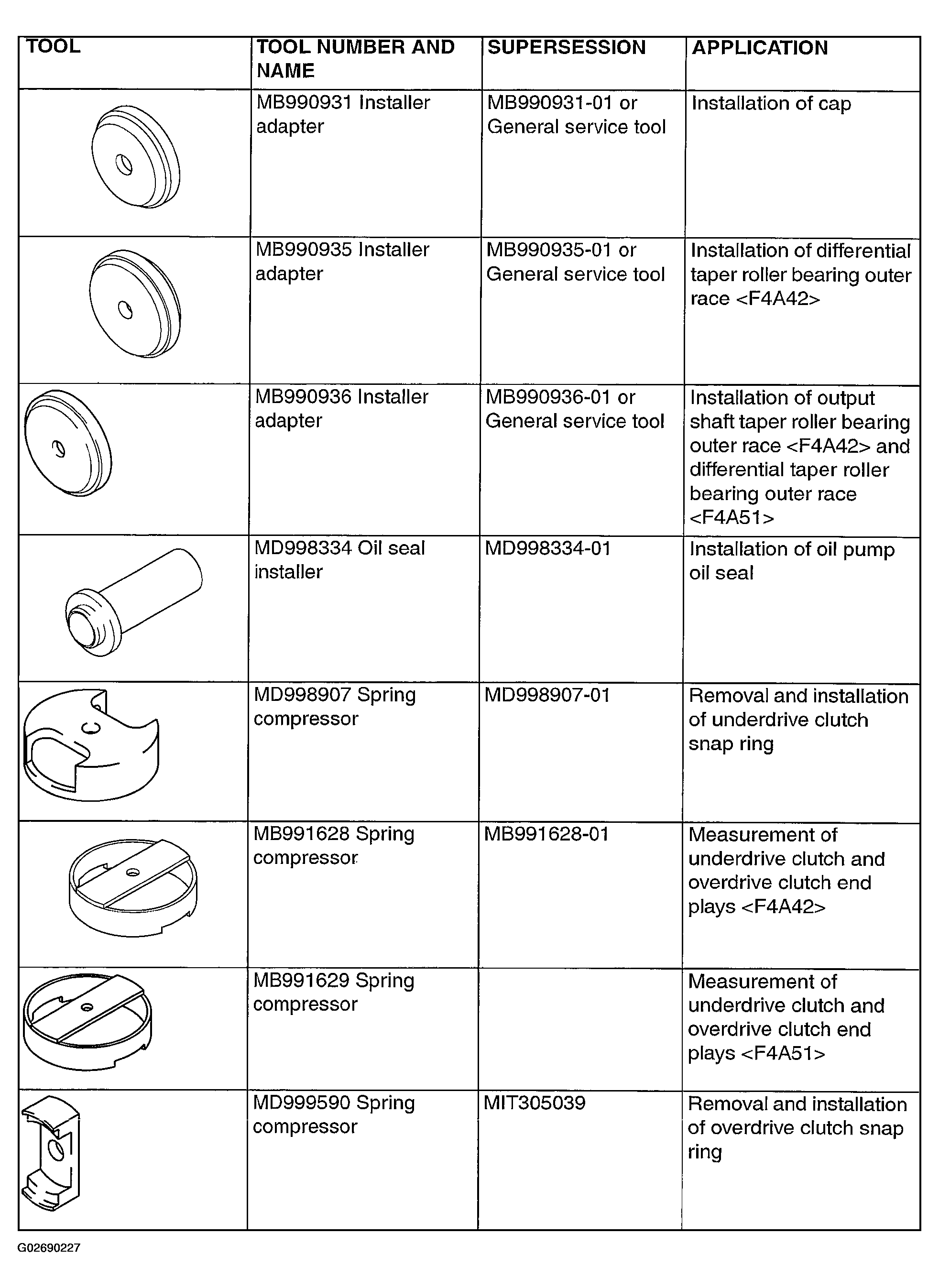

Fig 3: Special Tools (3 Of 5)

G02690227

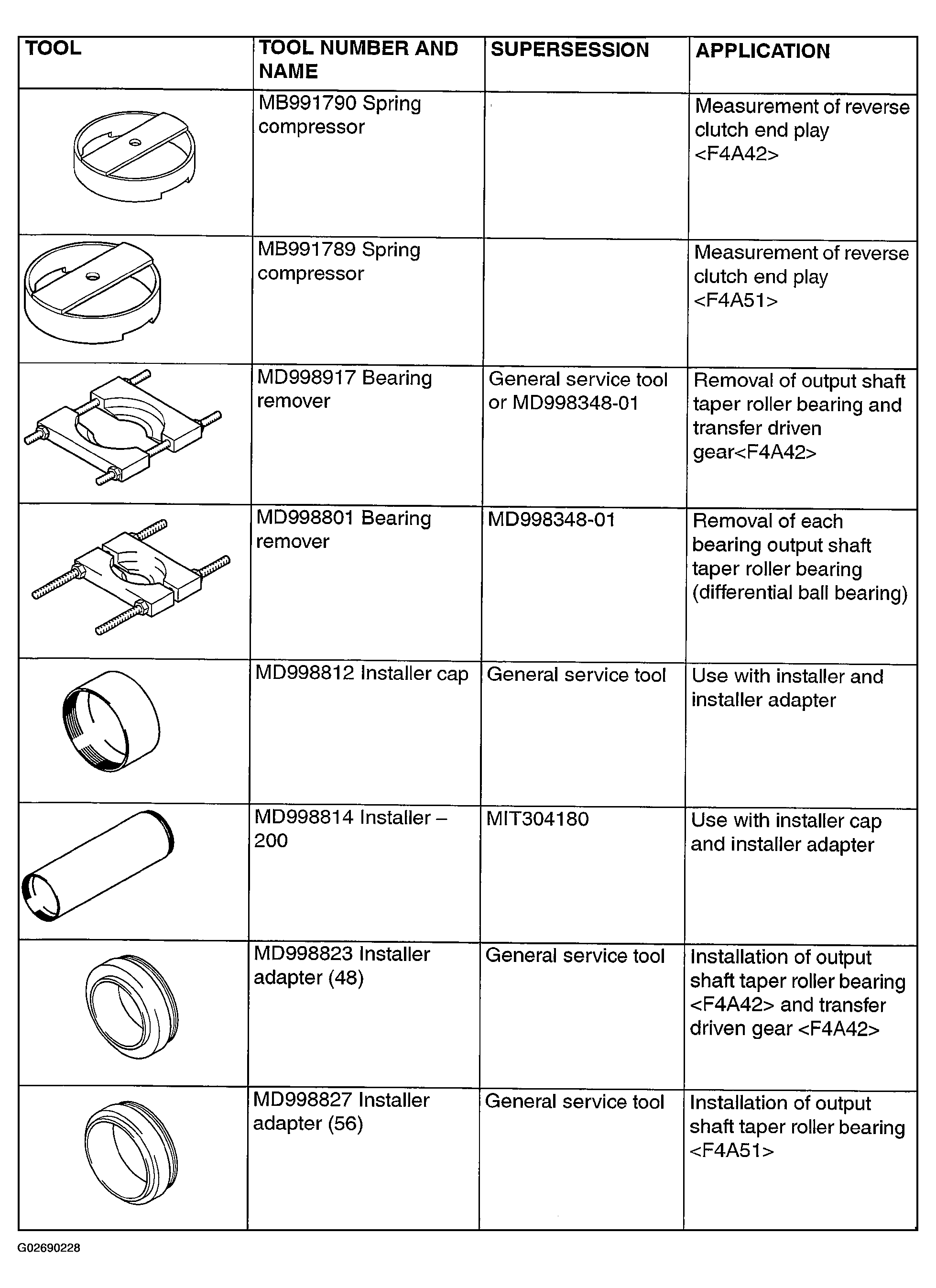

Fig 4: Special Tools (4 Of 5)

G02690228

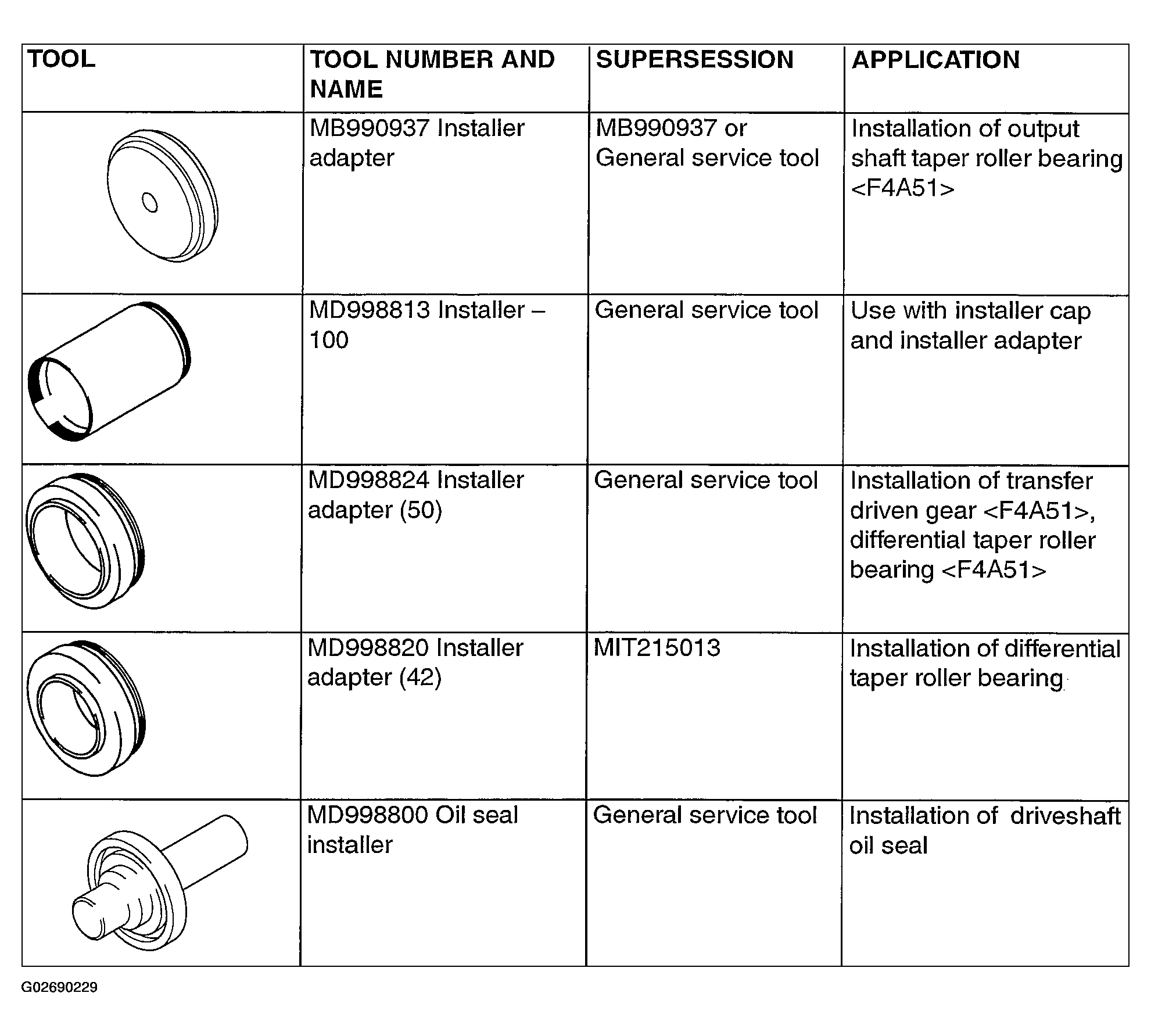

Fig 5: Special Tools (5 Of 5)

G02690229
