Using Scan Tool

To erase DTC(s) with scan tool, follow scan tool manufacturer's instructions. With MUT-II (MB991502), turn ignition switch to LOCK position. Connect MUT-II to data link connector. Use MUT-II to check for auto-cruise control system diagnosis trouble codes. Turn ignition switch to LOCK position. Disconnect scan tool. All DTC codes should be cleared.

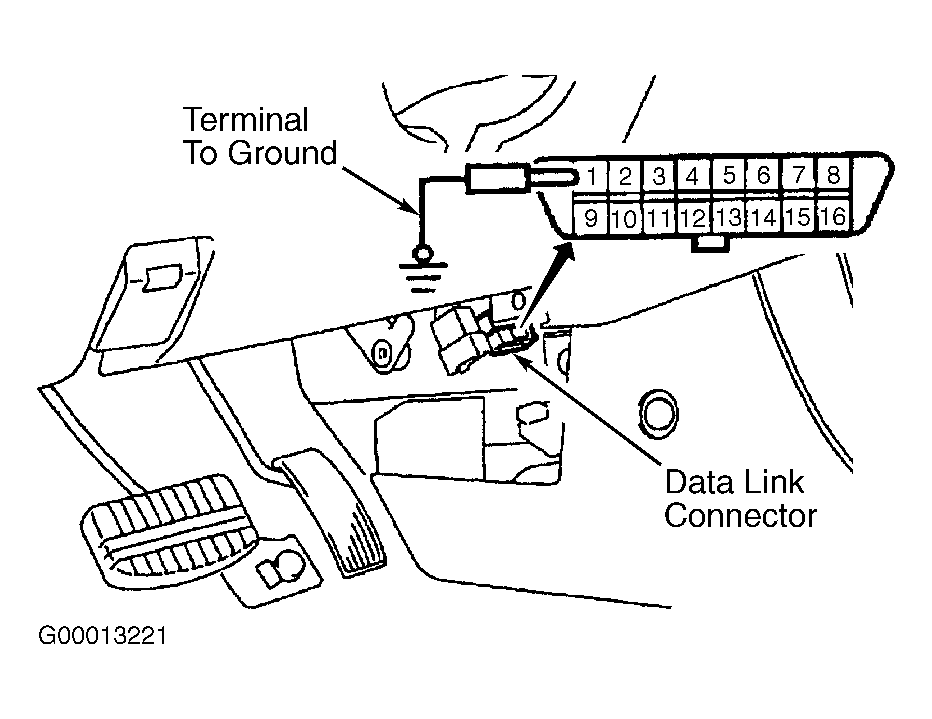

Fig 1: Identifying Data Link Connector Terminals
G00013221Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
