Home >> Mitsubishi >> 2001 >> Eclipse RS, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Speedometer Gear >> Disassembly And Assembly

Disassembly And Assembly

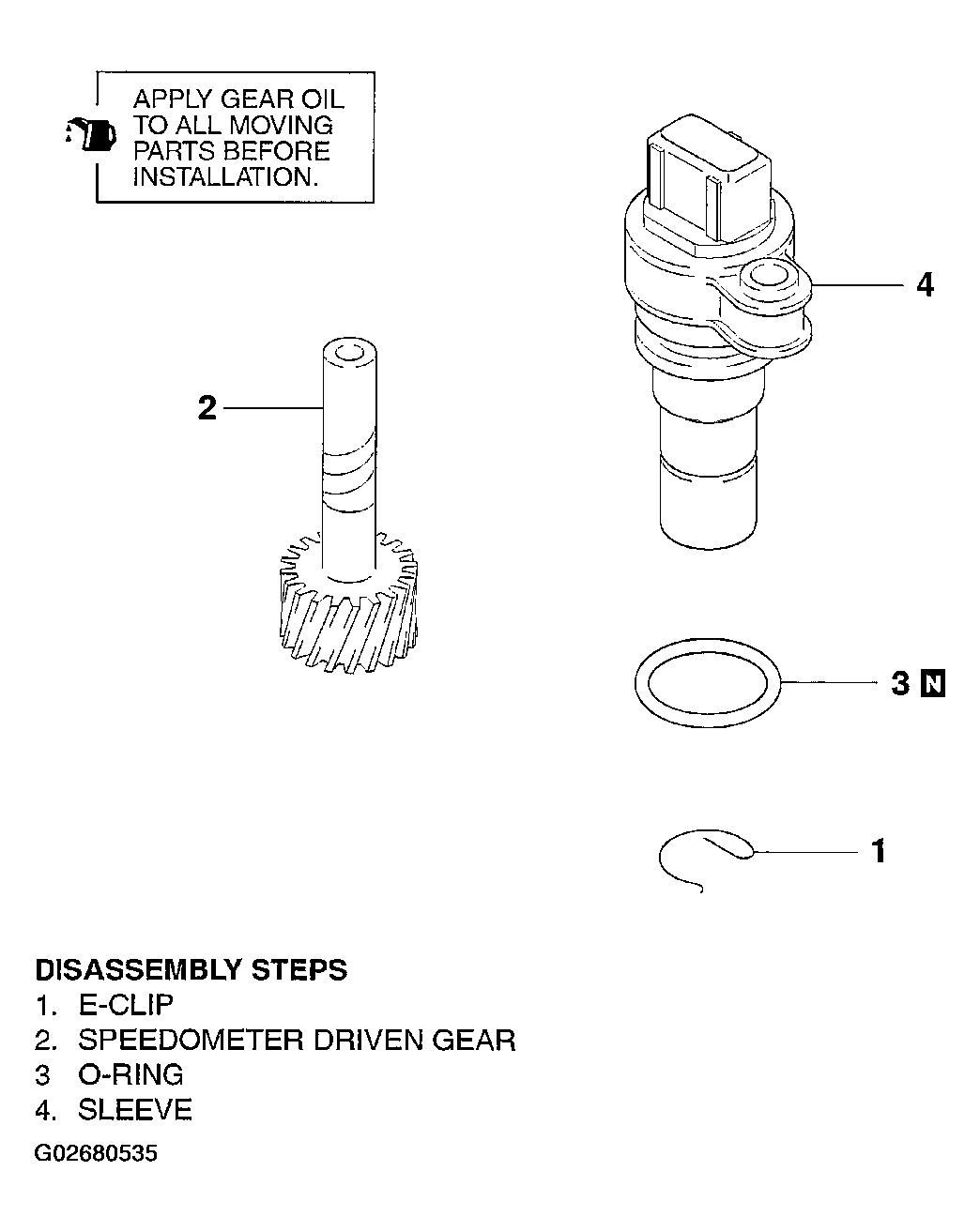

Fig 1: Speedometer Gear Disassembly And Assembly

G02680535
