Special Tools

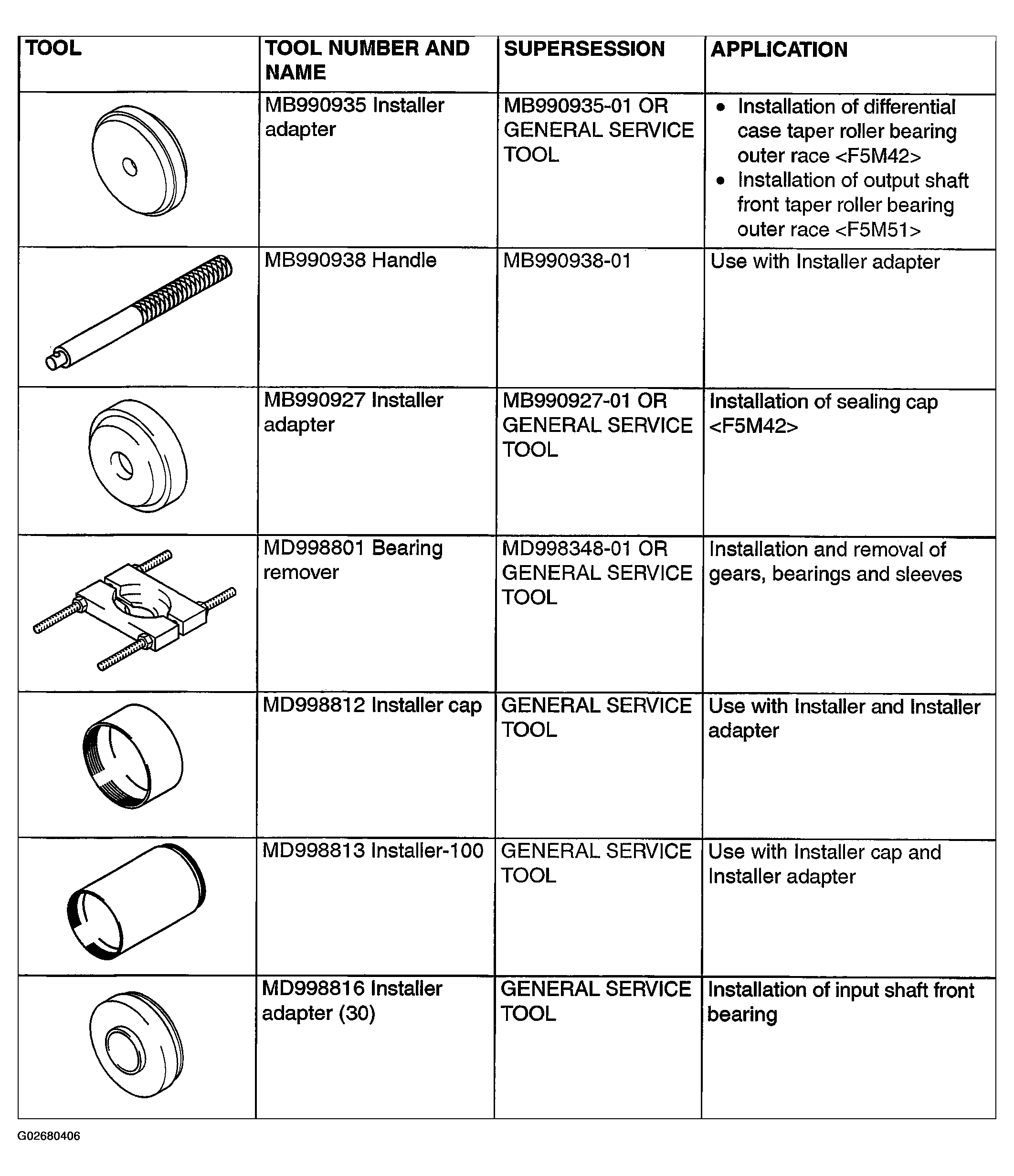

Fig 1: Special Tools (1 Of 4)

G02680406

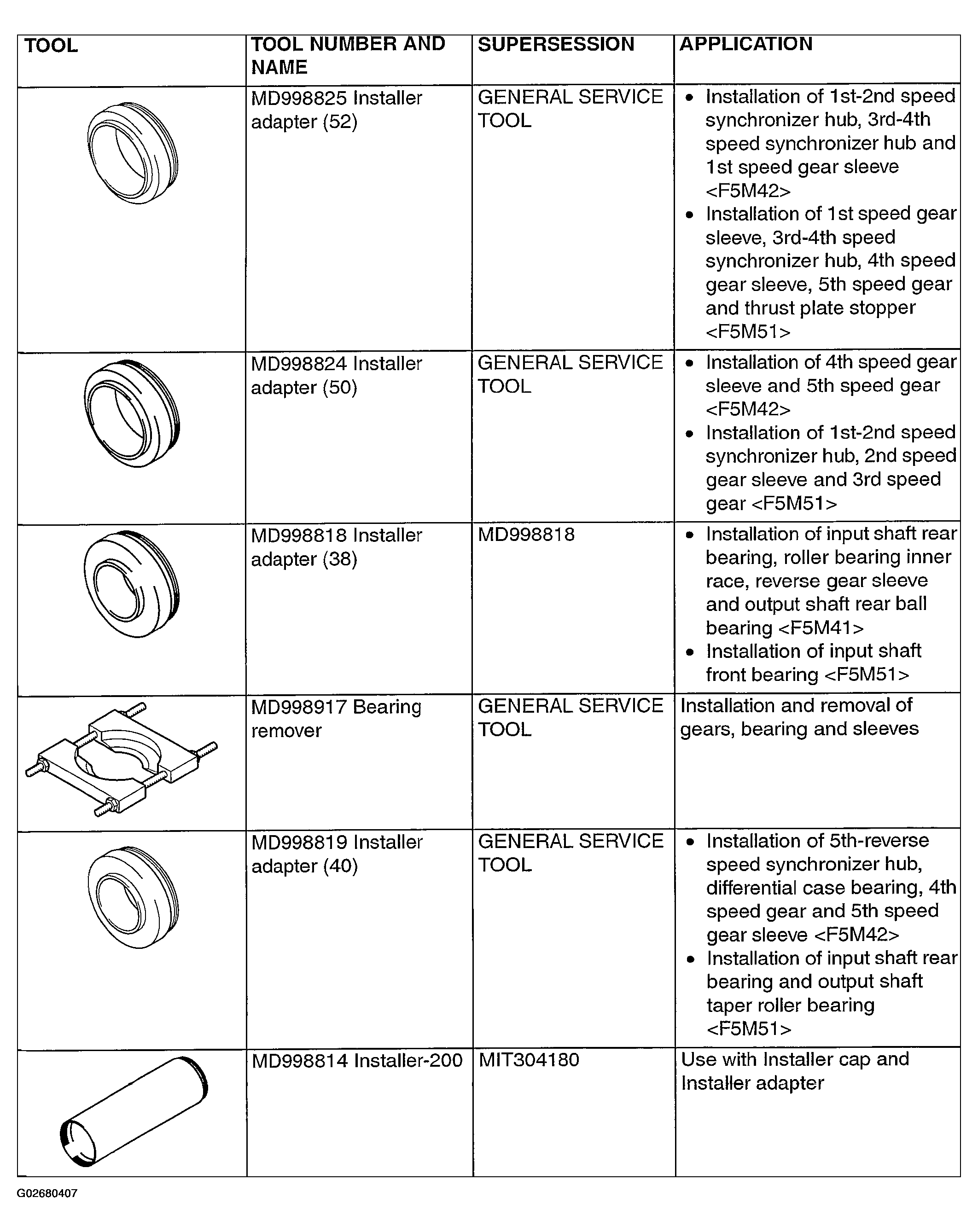

Fig 2: Special Tools (2 Of 4)

G02680407

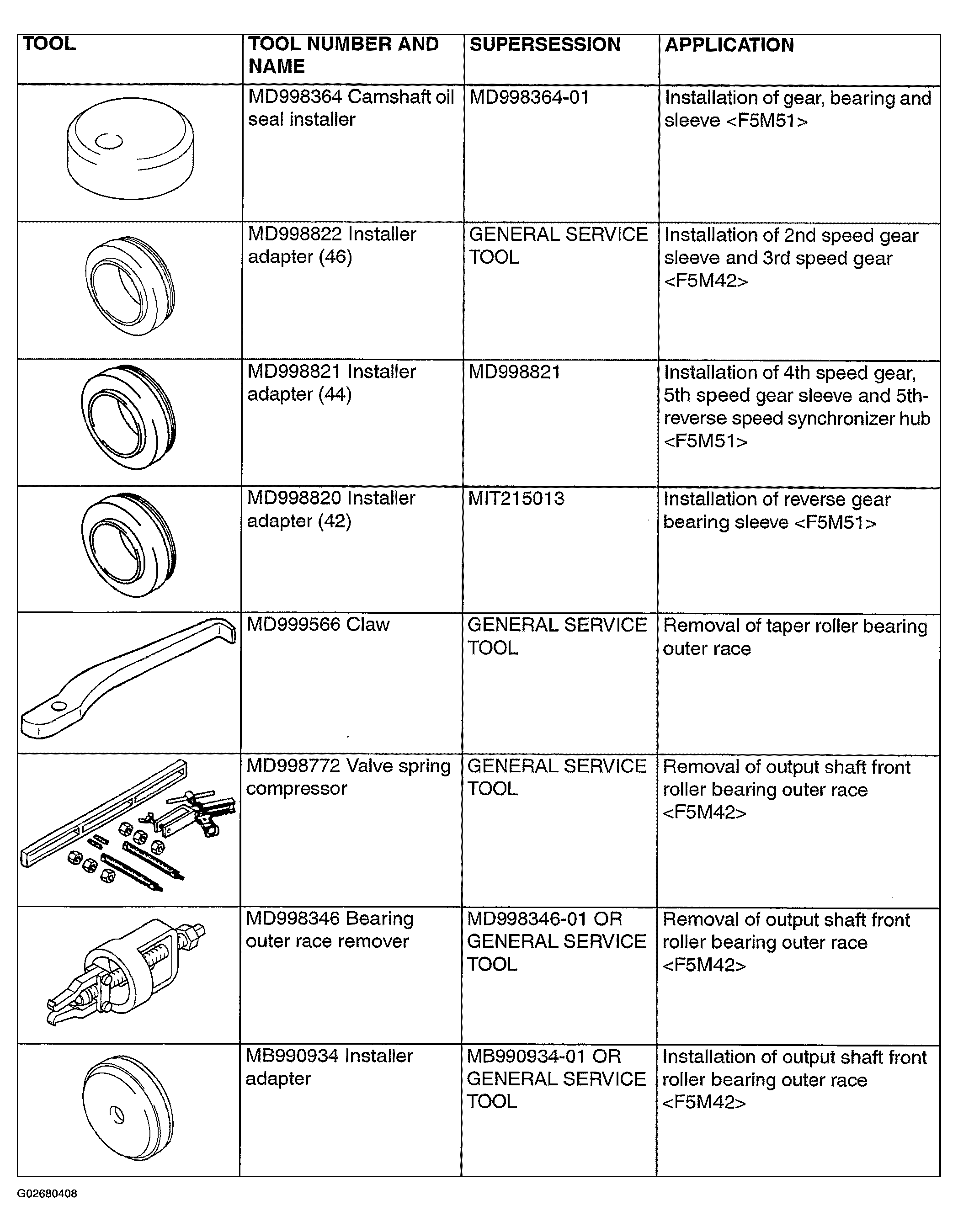

Fig 3: Special Tools (3 Of 4)

G02680408

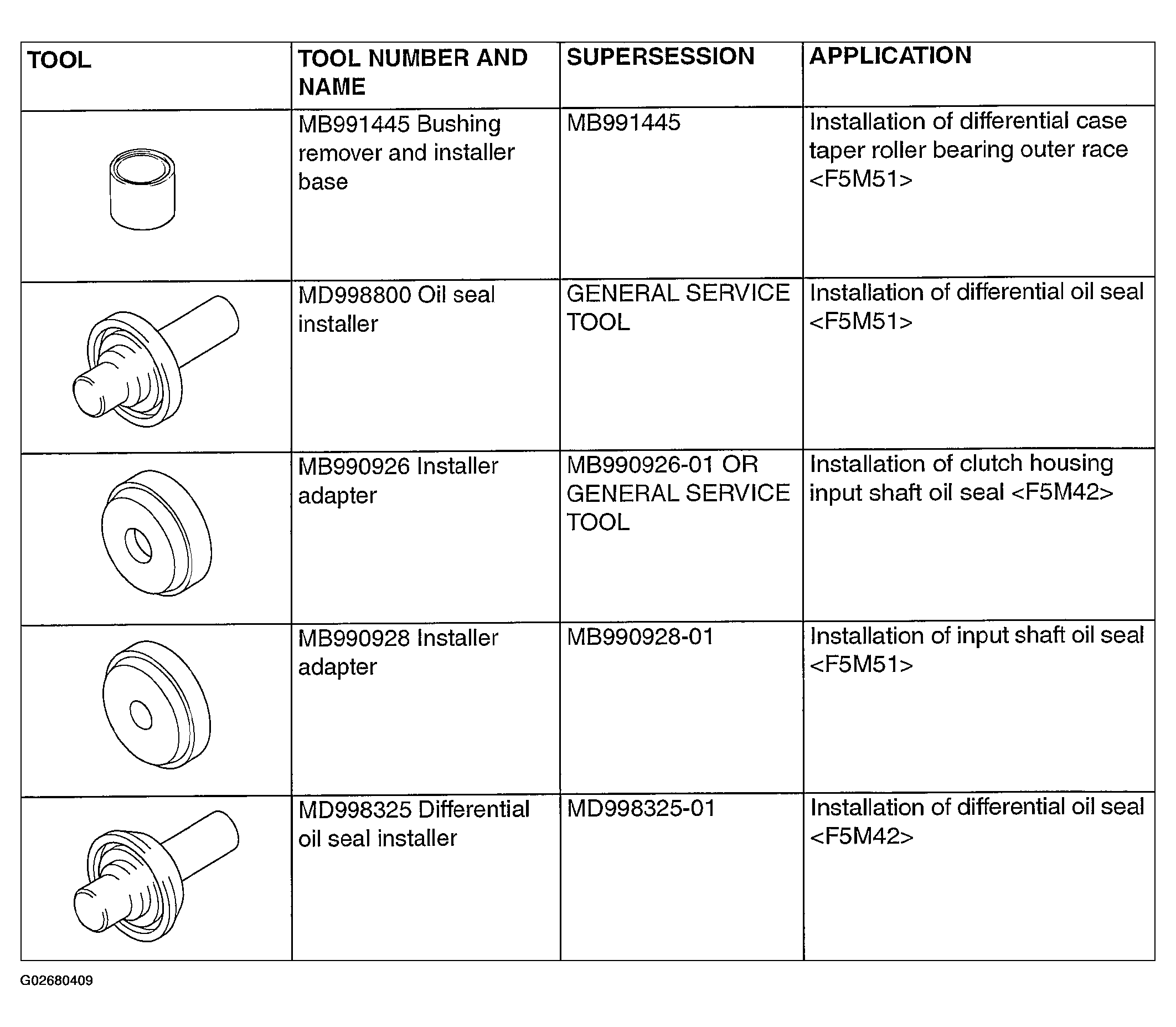

Fig 4: Special Tools (4 Of 4)

G02680409
