Rear (Diamante)

Check rear toe-in. See WHEEL ALIGNMENT SPECIFICATIONS (DIAMANTE)  table. If rear toe-in is not within specification, turn toe control arm mounting bolts left or right by equal amounts to adjust. See Fig 1. On left-hand side, turning bolt clockwise increases toe-out. On right-hand side, turning bolt clockwise increases toe-in. On Diamante models, adjustments made should be kept within 90 degrees of position indicated in illustration. See Fig 1.

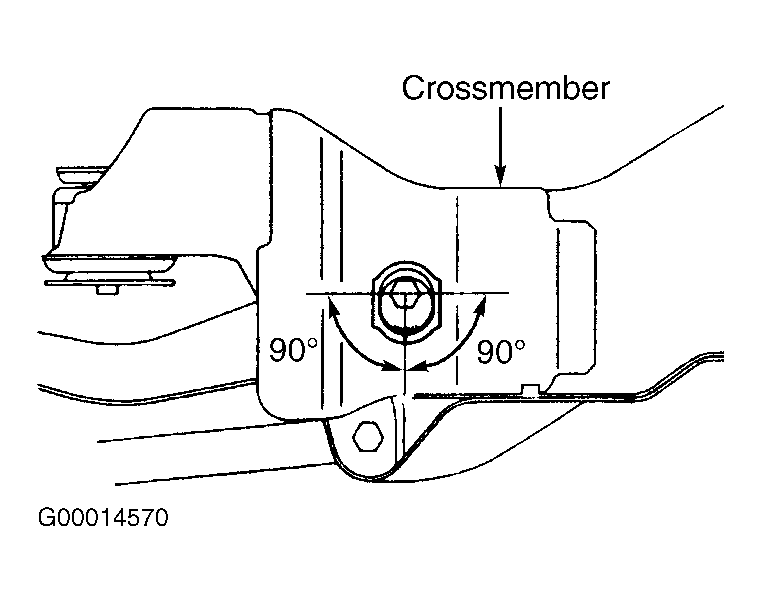

Fig 1: Adjusting Rear Toe-In (Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
