Home >> Mitsubishi >> 2001 >> Eclipse RS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Second Brake >> Disassembly And Assembly

Disassembly And Assembly

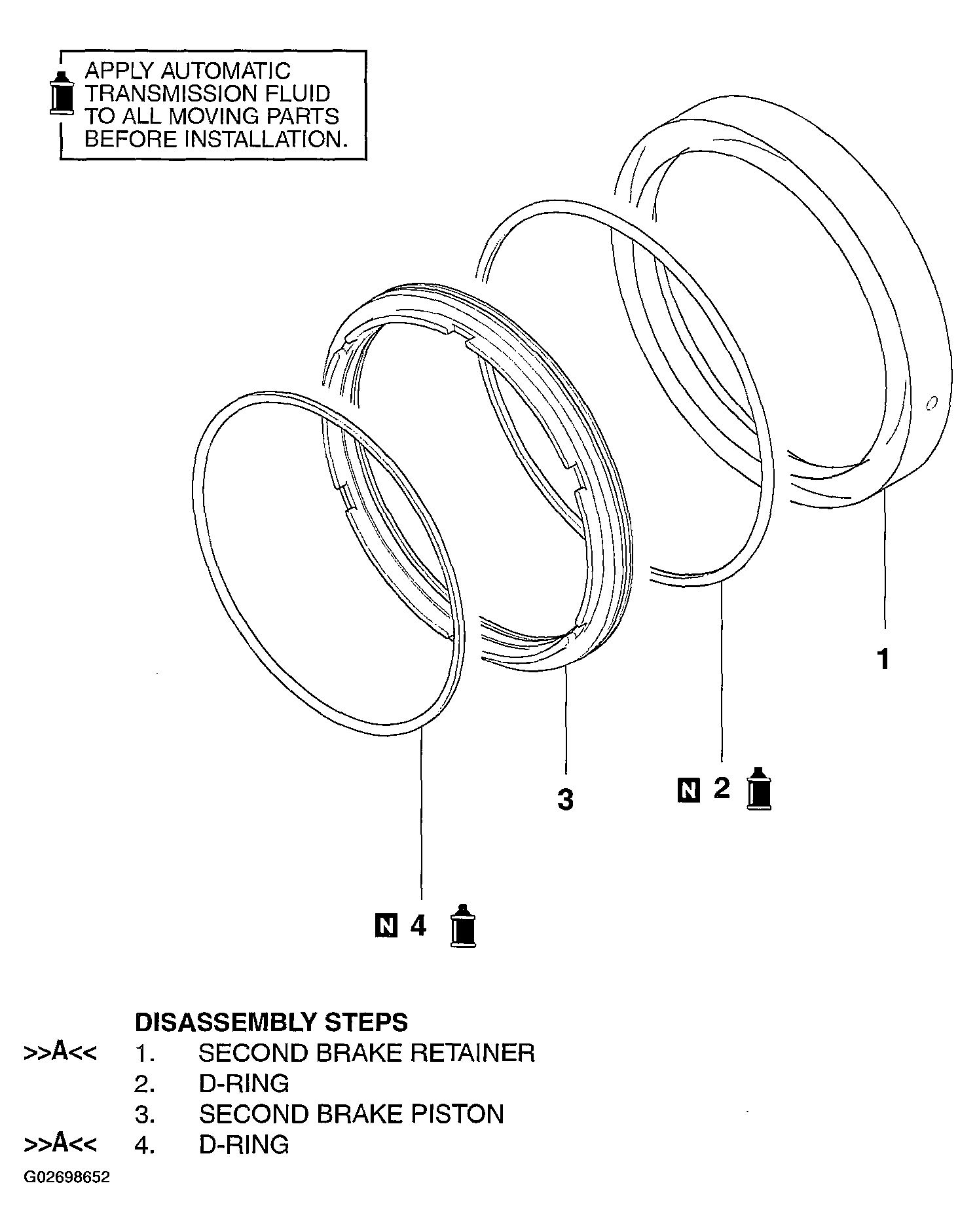

Fig 1: Second Brake Disassembly And Assembly

G02698652
