Clutch Specifications
>>
Fastener Tightening Specifications
Fastener Tightening Specifications

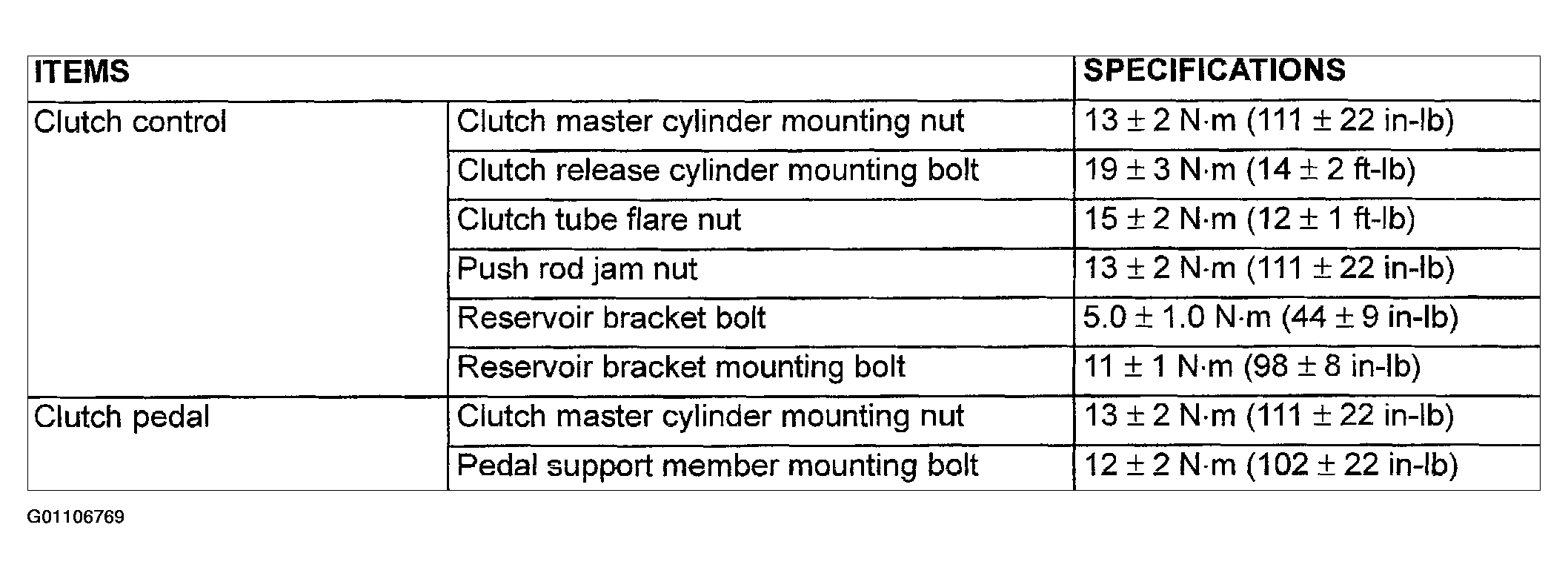

Fig 1: Clutch Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
