Removal And Installation: Notes

For clutch pedal removal procedures, follow numbered steps in illustration. See Fig 1. For clutch pedal installation procedures, follow numbers steps in illustration in reverse order.

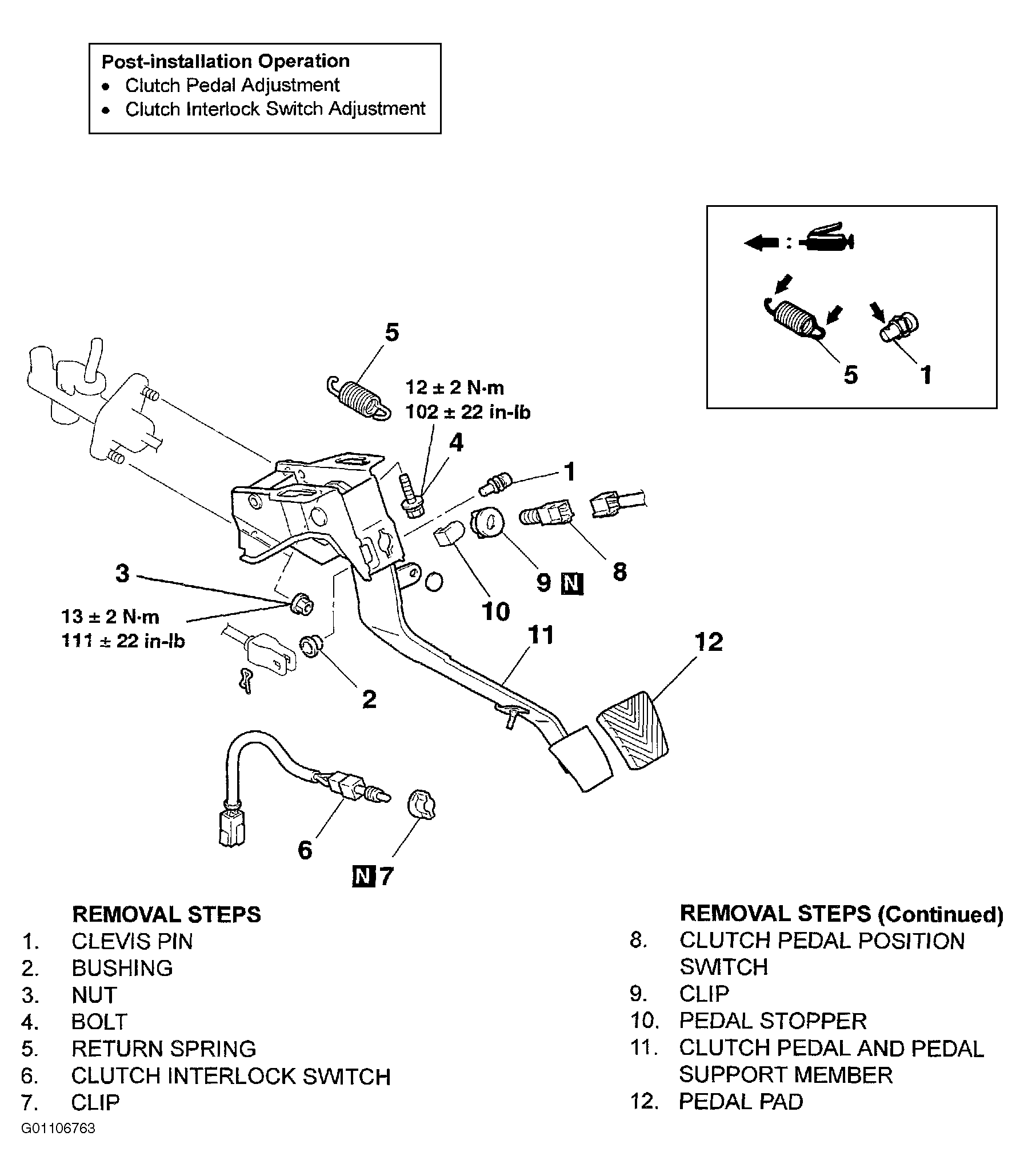

Fig 1: Removing & Installing Clutch Pedal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
