Rear (Mirage)

Check rear toe-in. See WHEEL ALIGNMENT SPECIFICATIONS (MIRAGE)  table. If rear toe-in is not within specification, turn toe adjusting bolt to adjust. See Fig 1. On left-hand side, turning bolt clockwise increases toe-in. On right-hand side, turning bolt clockwise increases toe-out. Each graduation equals about .10" (2.5 mm).

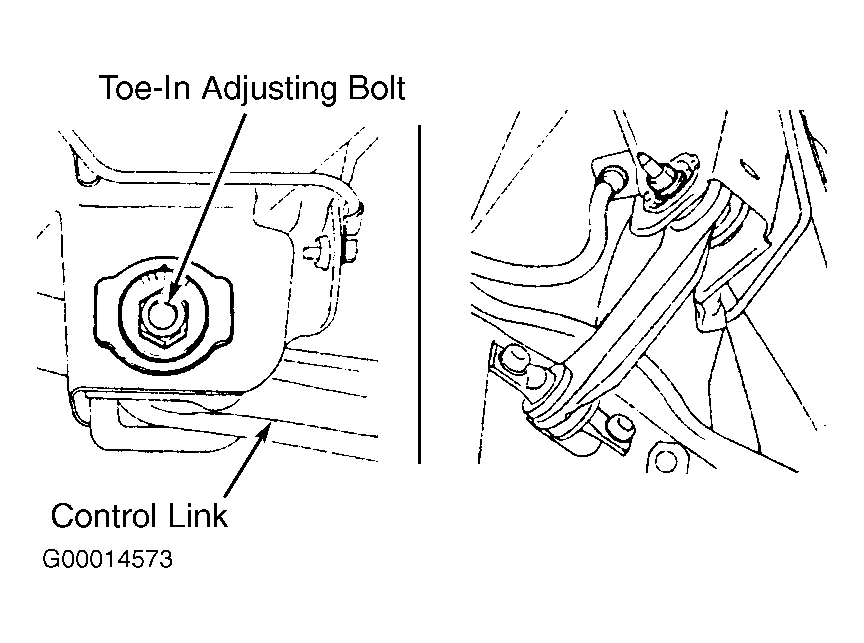

Fig 1: Adjusting Rear Toe (Mirage)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
