Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/C Relay Box (1.5L) | On right side of engine compartment, on inner fender panel. |
| A/C Relay Box (1.8L) | On right side of engine compartment, on inner fender panel. See Figure . |
| Engine Compartment Relay Box (1.5L) | On left side of engine compartment. |
| Engine Compartment Relay Box (1.8L) | On left side of engine compartment. See Figure . |
| Fusible Links No. 1-7 (1.5L) | On left side of engine compartment, in engine compartment relay box. |
| Fusible Links No. 1-7 (1.8L) | On left side of engine compartment, in engine compartment relay box. See Figure . |
| Fusible Link No. 8 (1.5L) | On battery positive terminal. |
| Fusible Link No. 8 (1.8L) | On battery positive terminal. See Figure . |

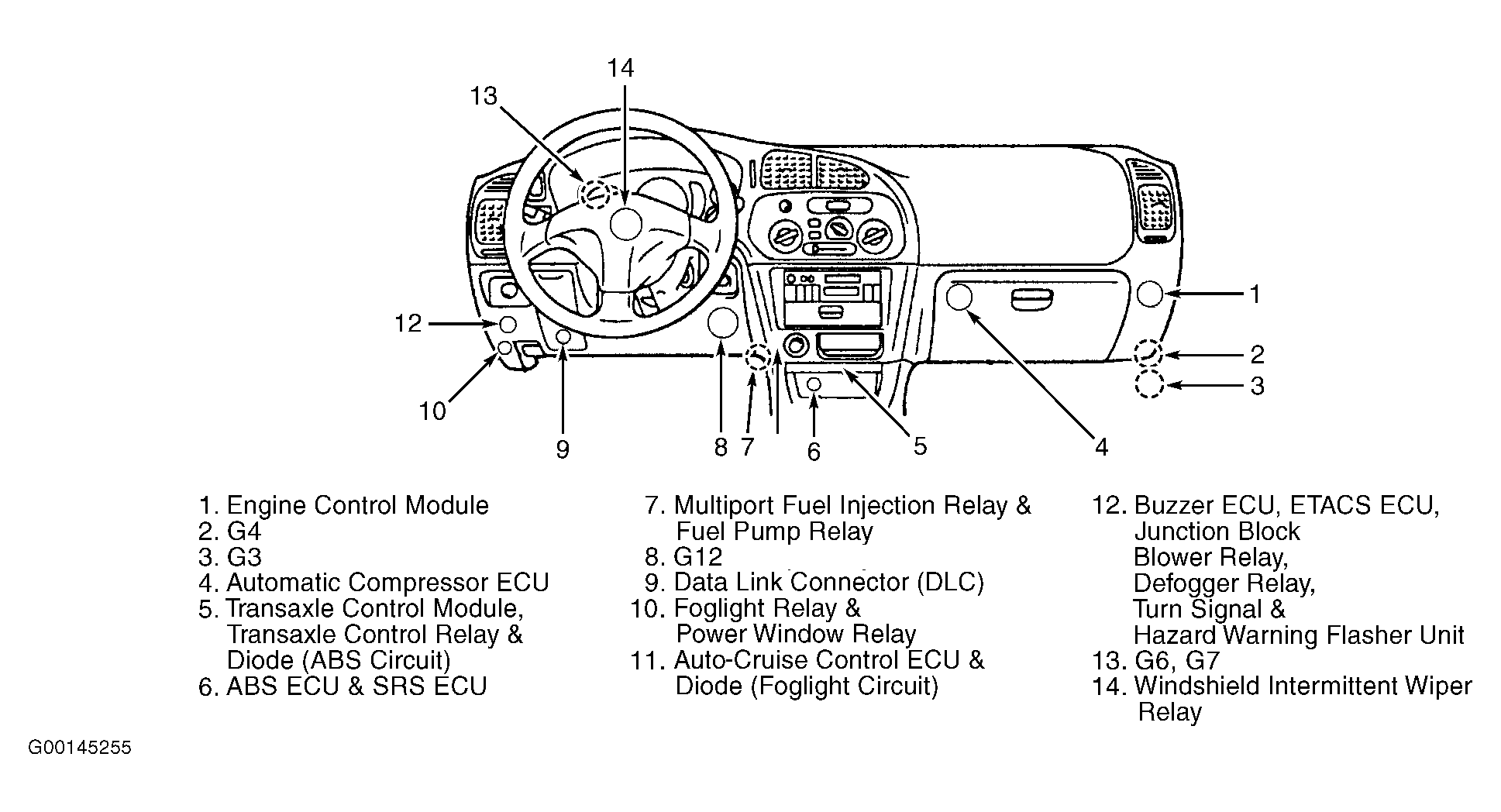

| Junction Block | Under left side of dash, above kick panel. See Figure . |
| Passenger Compartment Relay Box | Behind left side of dash. |
