Select Cable

Place transaxle-side shift lever in Neutral. This will also place transaxle-side select lever in Neutral. See Fig 1. Loosen selector cable adjuster nuts (inside of vehicle). See Fig 2. With select lever in Neutral, adjust select cable end until eye fits easily over select lever pin. Tighten adjuster nuts.

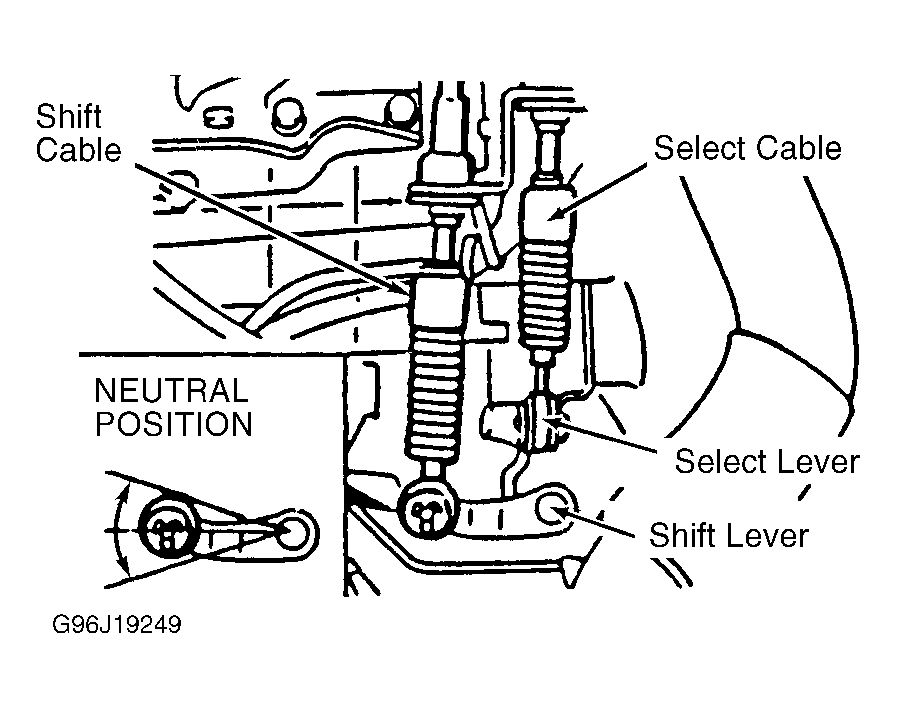

Fig 1: Identifying Transaxle Control Cables (Typical)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

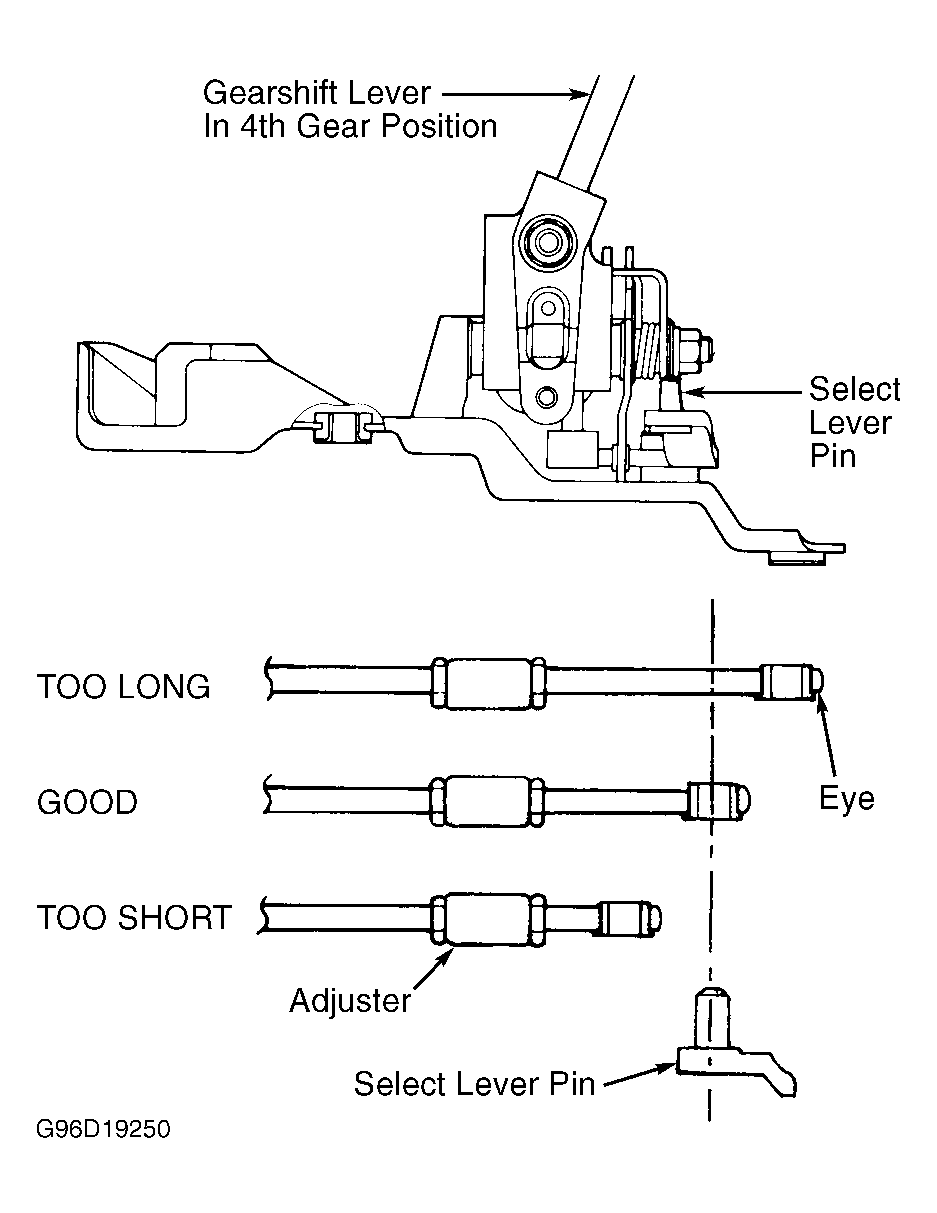

Fig 2: Adjusting Select Cable (Typical)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
