Disassembly And Assembly: Notes
CAUTION:
Do not disassemble the piston assembly.

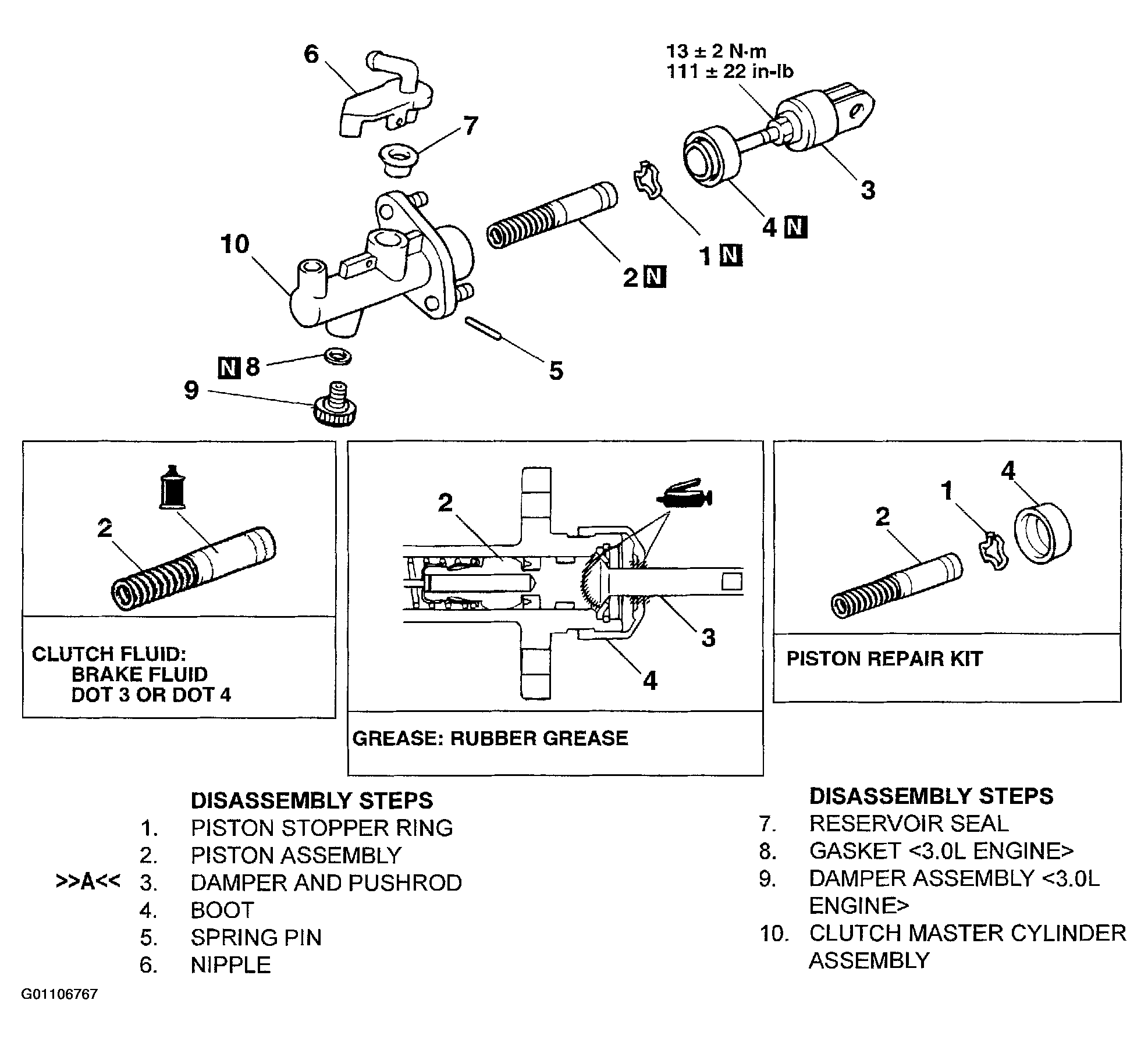

For clutch master cylinder disassembly procedures, follow numbered steps in illustration. See Fig 1. For clutch master cylinder assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling clutch master cylinder. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINT .
