Camber Adjustment: Montero

Check camber. See WHEEL ALIGNMENT SPECIFICATIONS (MONTERO) table. If camber is not within specification, adjust by increasing or decreasing thickness of adjusting shim between upper control arm shaft, and crossmember. See Fig 1. Adjusting shims are available in .039" (1.0 mm) and .079" (2.0 mm) thicknesses.

NOTE: Standard shim thickness is 0.16" (4.0 mm). DO NOT use more than 3 shims at one location.

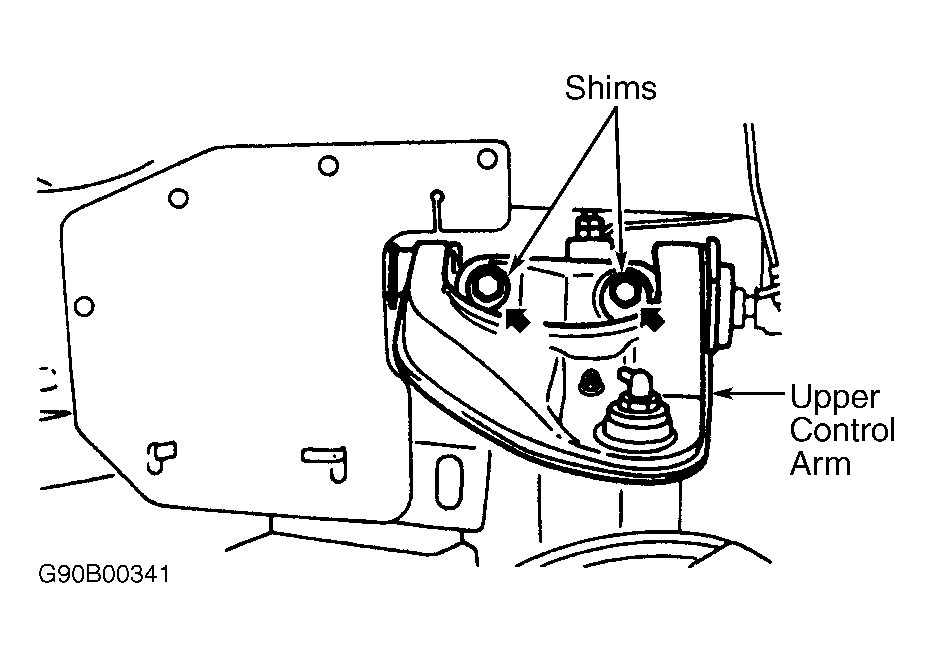

Fig 1: Adjusting Camber & Caster (Montero Sport Shown; Montero Similar)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
