Vacuum Actuator

WARNING: This page is about a different car, the 2002 Mitsubishi Eclipse. However, it is still accessible from the selected car via links, so may be relevant.

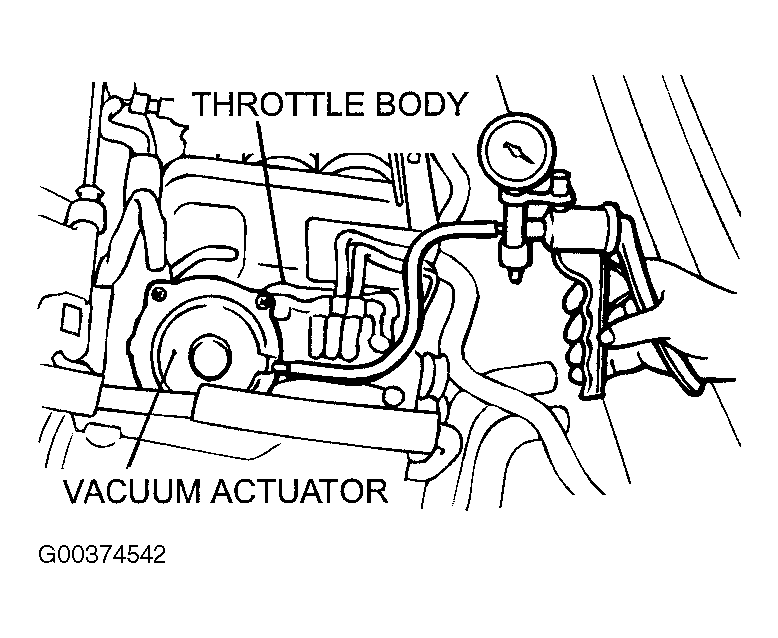

  1. Disconnect the vacuum hose from the vacuum actuator, and connect a hand vacuum pump to the actuator. See Figure.
  2. Check that the throttle lever operates when applying vacuum, and the vacuum is maintained.
