| A/C Tensioner Pulley Bracket Bolt |
17-20 (23-27) |
| Camshaft Sprocket Bolt |
66 (90) |
Connecting Rod Nut
|
15 (20) |
| Crankshaft Pulley Bolt |
18 (24) |
| Crankshaft Sprocket Bolt |
89 (120) |

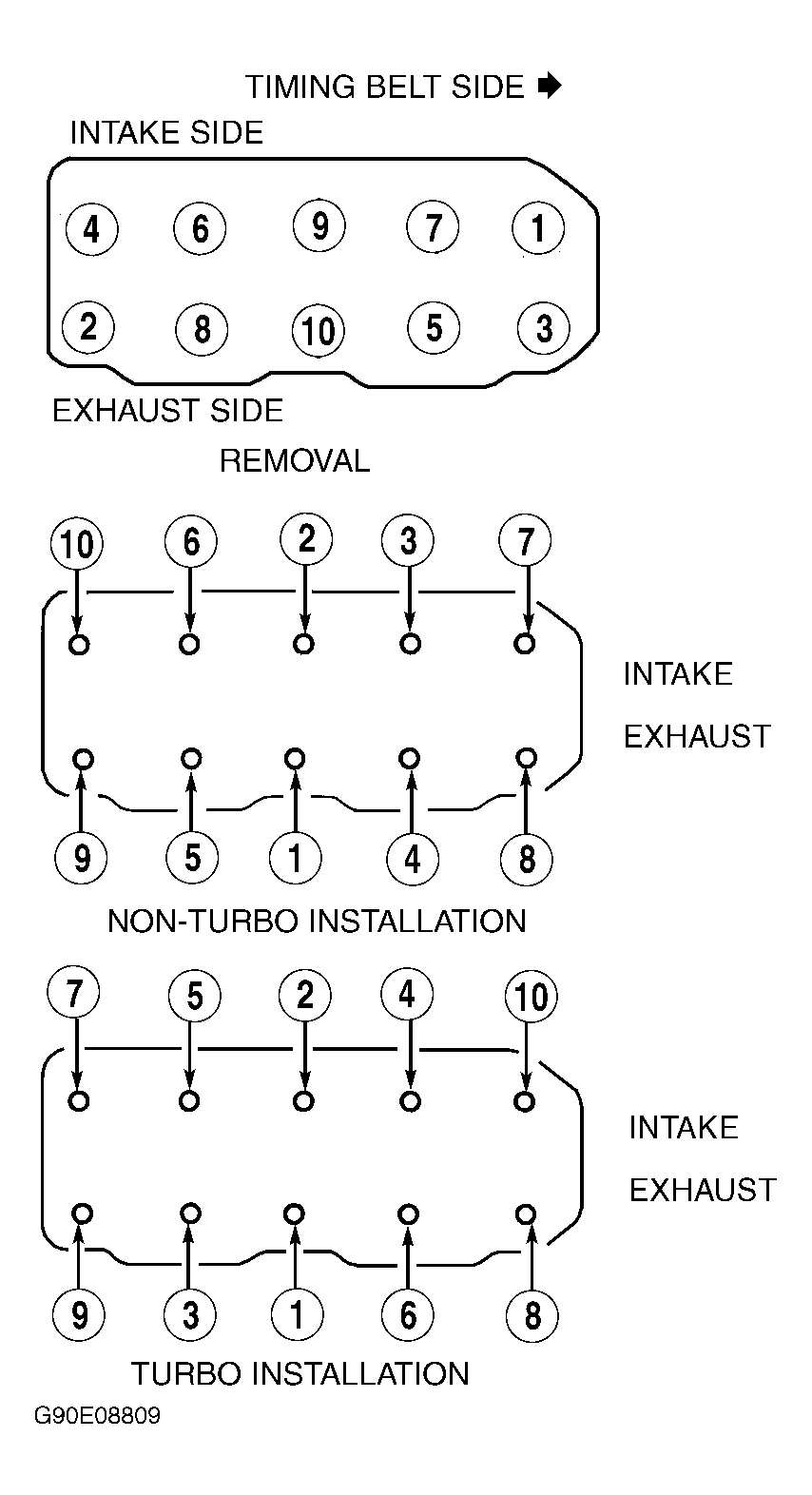

| Cylinder Head Bolt |
|
| Engine Support Bracket Bolt |
34 (46) |
| Exhaust Manifold Nut |
| M8 |
21 (28) |
| M10 |
| Except Montero Sport |
22 (30) |
| Montero Sport |
36 (49) |
| Flywheel/Drive Plate Bolt |
100 (135) |
| Front Cover Bolt |
18 (24) |
| Intake Manifold Bolt/Nut |
13 (18) |
| Intake Manifold Stay Bolt |
| Except Montero Sport |
23 (31) |
| Montero Sport |
|
| Main Bearing Cap Bolt |
|
| Oil Filter Bracket Bolt |
14 (19) |
| Oil Pump Cover Bolt |
13 (17) |
| Rear Tensioner Retaining Bolt |
14 (19) |

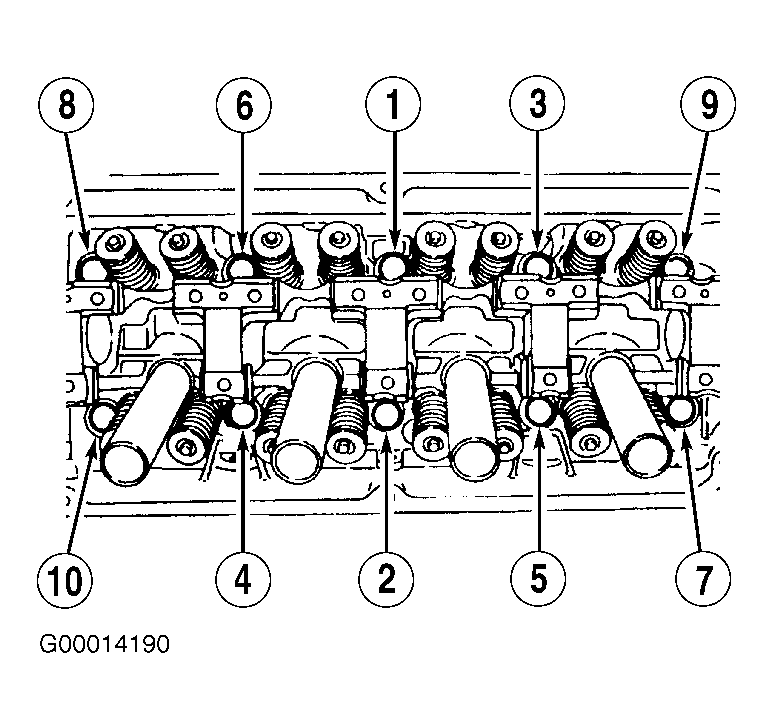

| Rocker Arm Assembly Bolts |
24 (32) |
| Silent Shaft Sprocket Bolt |
34 (46) |
| Timing Belt Tensioner Bolt |
35 (47) |
| Timing Cover Bolt (Eclipse Spyder) |
| M8 |
10 (14) |
| M10 |
22 (30) |
| INCH Lbs. (N.m) |
| Crankshaft Position Sensor Nut |
80 (9) |
| Fuel Rail Bolt |
97 (11) |
| Oil Pan Bolt |
106 (12) |
| Oil Pressure Switch |
89 (10) |
| Oil Pump Cover Screw |
89 (10) |
| Rocker Cover Bolt |
30 (3.4) |
| Throttle Body Bolt |
97 (11) |
| Timing Belt Cover Bolt |
| Eclipse & Galant |
| M6 |
89-106 (10-12) |
| M8 |
115- 133 (13-15) |
| Montero Sport |
| Flange Bolt |
97 (11) |
| Washer Bolt |
71 (8) |
| Water Pump Bolt |
115 (13) |
| Water Pump Pulley Bolt |
71 (8) |
