Starter Relay: Diamante

  1. Remove starter relay. See STARTER RELAY LOCATIONS  table. With no power supplied to any terminal, continuity should exist between relay terminals No. 1 and 2. See Fig 1 and WIRING DIAGRAMS  .
  2. Connect a jumper wire from positive battery terminal to relay terminal No. 2 and another jumper wire from negative battery terminal to relay terminal No. 1. Continuity should exist between relay terminals No. 3 and 4. Replace relay as necessary.

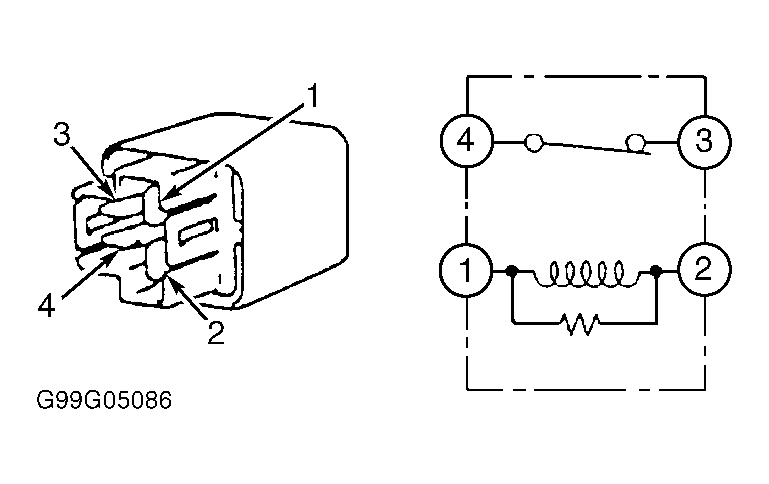

    Fig 1: Identifying Starter Relay Terminals (Diamante)
    G99G05086Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
