Ignition Switch

Disconnect ignition switch 6-pin connector. While turning ignition switch through all positions, check for continuity between indicated ignition switch connector terminals. See Fig 1 . If continuity does not exist as indicated, replace ignition switch.

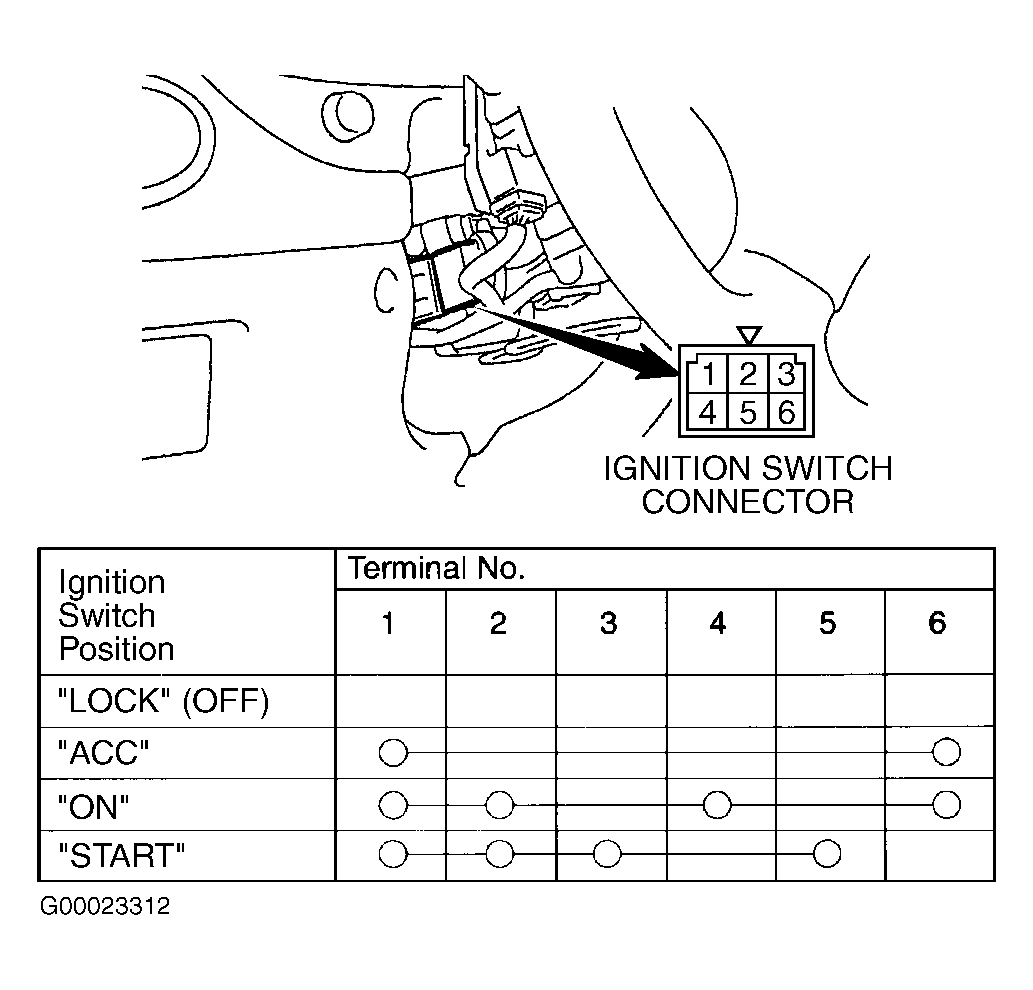

Fig 1: Testing Ignition Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
