Torque Specifications: 3000GT
TORQUE SPECIFICATIONS (3000GT)
| Application |
Ft. Lbs. (N.m) |
| Air Intake Plenum Brace Bolts |
13 (18) |
| Auto-Tensioner Bolt |
17 (23) |
| Camshaft Bearing Cap Bolt |
| Front & Rear |
15 (20) |
| No. 2, 3 & 4 |
|
| Camshaft Sprocket Bolt |
66 (90) |
| Connecting Rod Nut |
38 (52) |
| Crankshaft Pulley Bolt |
| DOHC |
130-137 (176-186) |
| SOHC |
108-116 (146-157) |
| Cylinder Head Bolt |
| DOHC Turbo |
91 (123) |
| Except DOHC Turbo |
80 (108) |
| Distributor Adapter Bolt |
|
| Drive Plate Bolt |
55 (75) |
| Engine Support Bracket Bolt |
| Except 10 x 40 mm |
30 (41) |
| 10 x 40 mm |
54 (73) |

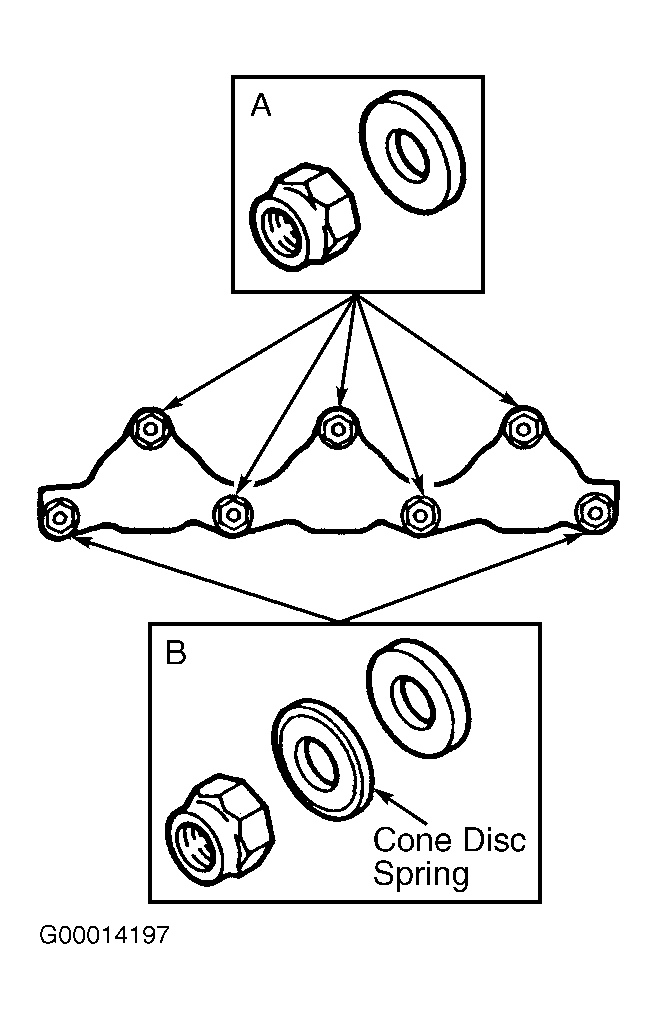

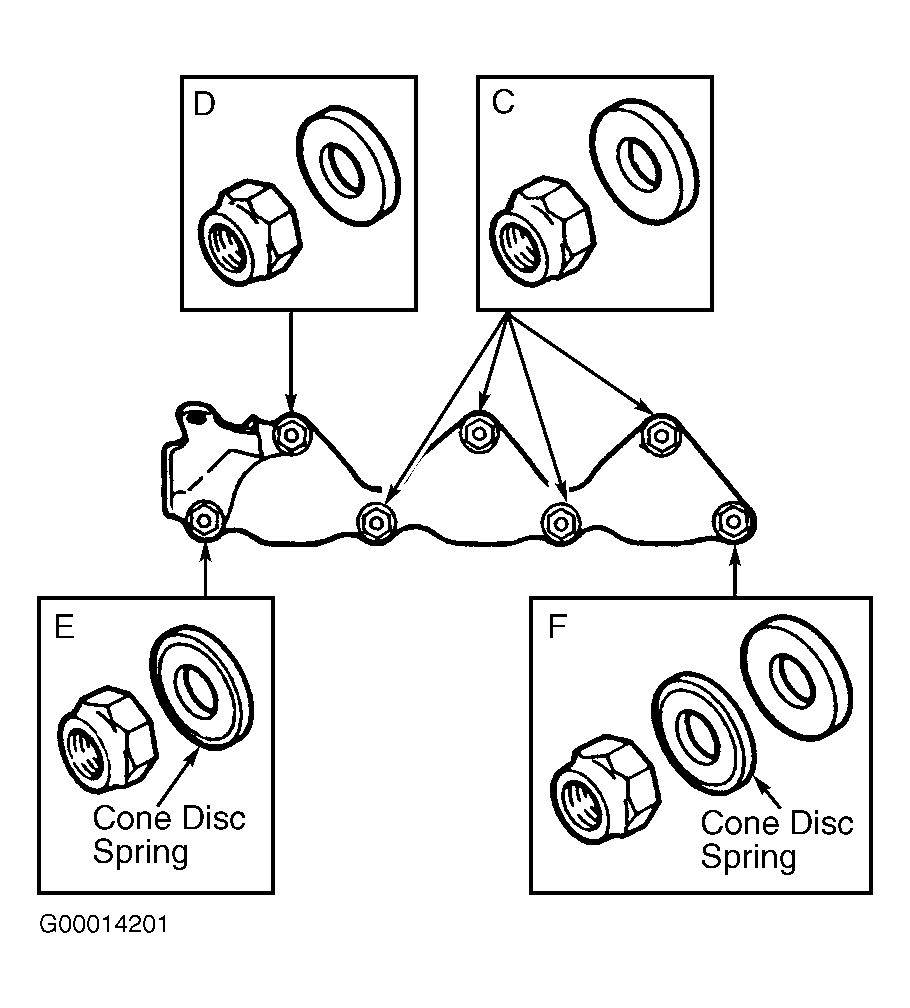

| Exhaust Manifold Nut |
| DOHC Non-Turbo |
33 (45) |
| DOHC Turbo |
| Front |
|
| Rear |
|
| SOHC |
13 (18) |
| Flywheel Bolt |
55 (75) |
| Intake Manifold Bolt |
| DOHC |
16 (22) |
| SOHC |
13 (18) |
| Main Bearing Cap Bolt |
| DOHC Non-Turbo |
67 (91) |
| DOHC Turbo |
54 (73) |
| SOHC |
57 (77) |
| Oil Filter Bracket Bolt |
| M8 Bolt |
|
| M10 Bolt |
17 (23) |
| Oil Pick-Up Tube Bolt |
14 (19) |
| Oil Pump Mounting Bolt |
11 (15) |
| Rear Engine Support Bracket-To-Engine Bolt |
13-18 (18-25) |
| Relief Valve Plug |
33 (45) |
| Rocker Shaft |
15 (20) |
| Roll Stopper Bracket Through-Bolts |
36-43 (49-58) |
| Turbocharger-To-Exhaust Fitting |
40-47 (54-64) |
| Timing Belt Tensioner Arm Bolt |
31 (42) |
| Timing Belt Tensioner Pulley Bolt |
36 (49) |
| Water Pump Bolt |
17 (23) |
| INCH Lbs. (N.m) |
| Delivery Pipe Bolt |
108 (12) |
| Oil Pan Bolt |
48-60 (5-7) |
| Oil Pump Cover Bolt |
97 (11) |
| Rear Seal Case Bolt |
117 (13) |
| Rocker Cover Bolt |
| DOHC |
26 (3) |
| SOHC |
72-84 (8-9) |
| Throttle Body Bolt |
84-108 (9-12) |
| Timing Belt Cover Bolt |
84-108 (9-12) |
| Transmission Mounting Plate Bolt |
84-108 (9-12) |
