Removal And Installation: Notes

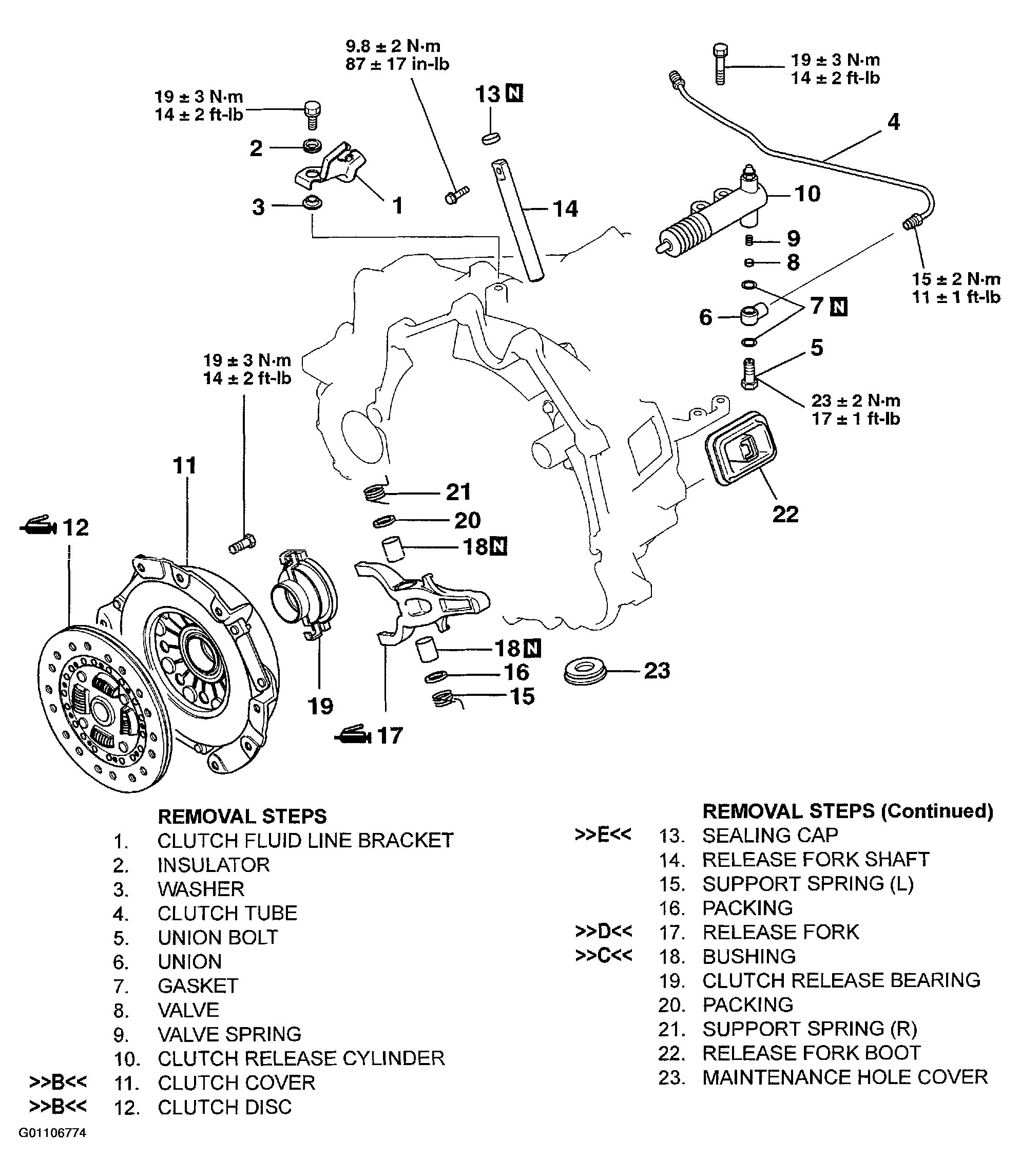

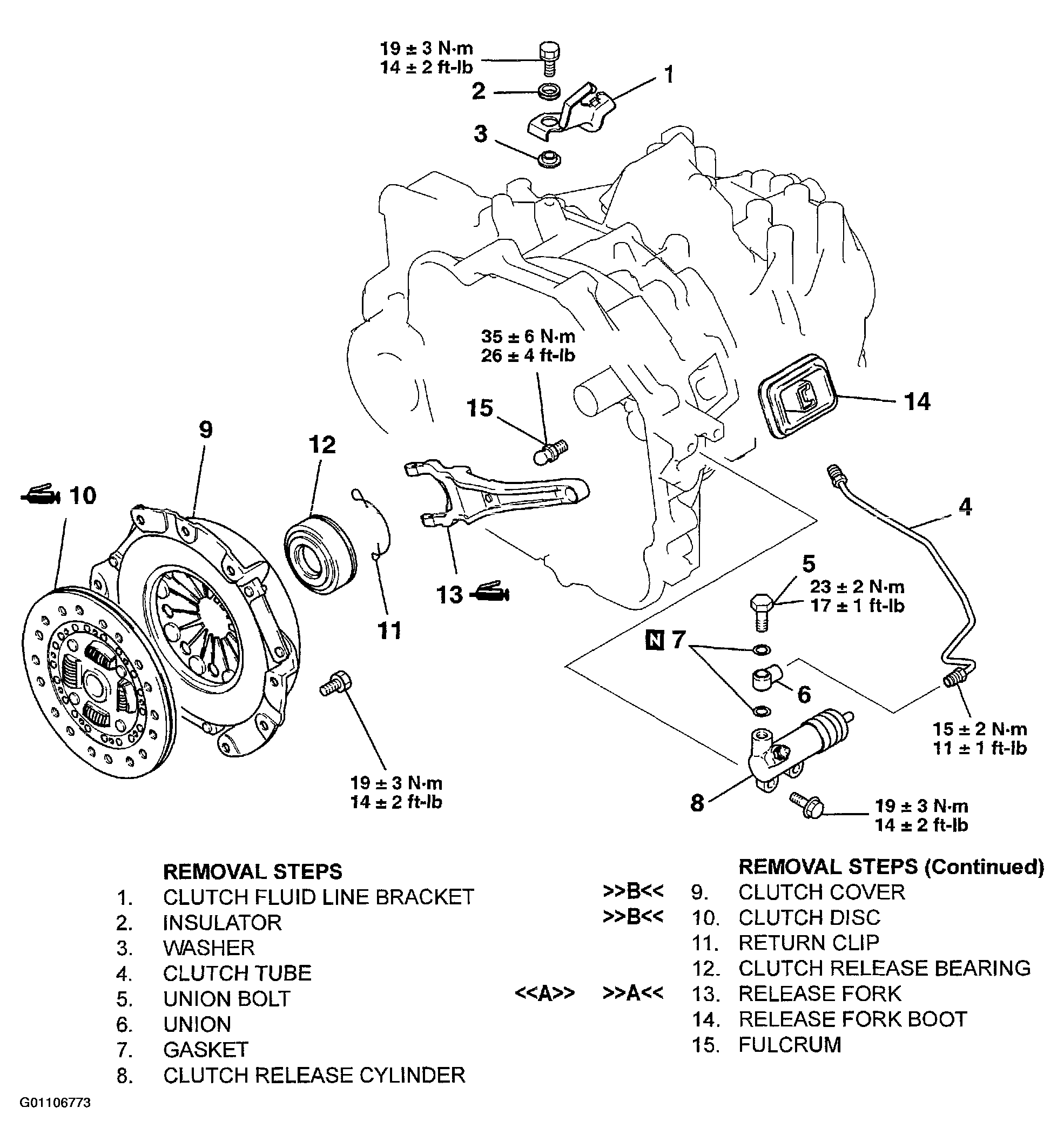

For clutch removal procedures, follow numbered steps in illustration. For 2.4L engine, see Fig 1. For 3.0L engine, see Fig 2. For clutch installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing clutch. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the disassembly procedure. See REMOVAL SERVICE POINT . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See INSTALLATION SERVICE POINTS .
