Steering Column Light Switch

Remove upper and lower steering column covers. Disconnect light switch 9-pin connector "A", and 6-pin connector "B". Check continuity between appropriate light switch connector terminals. See Fig 1 . Replace steering column light switch if necessary.

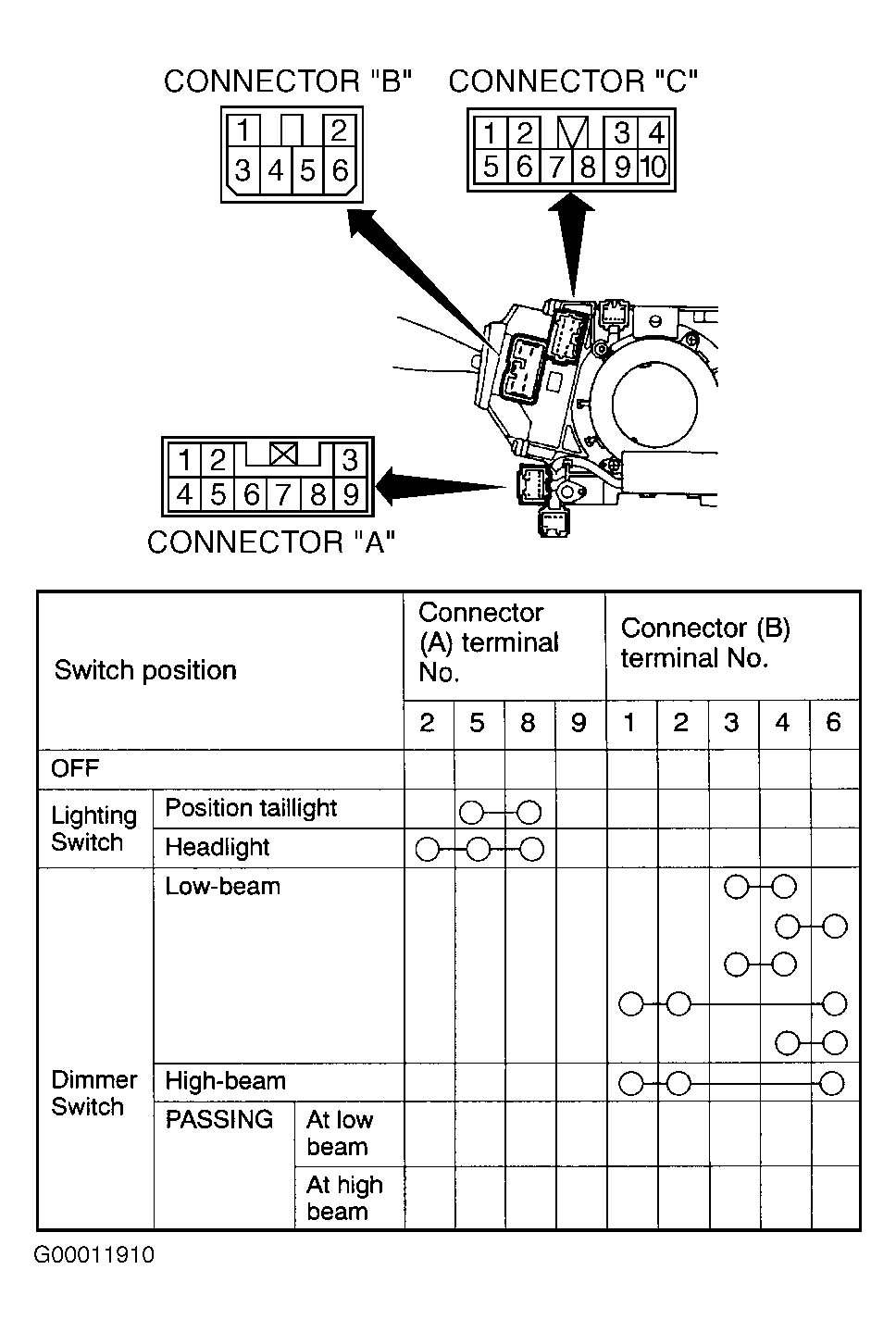

Fig 1: Testing Light Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
