Road Test: Notes
NOTE:

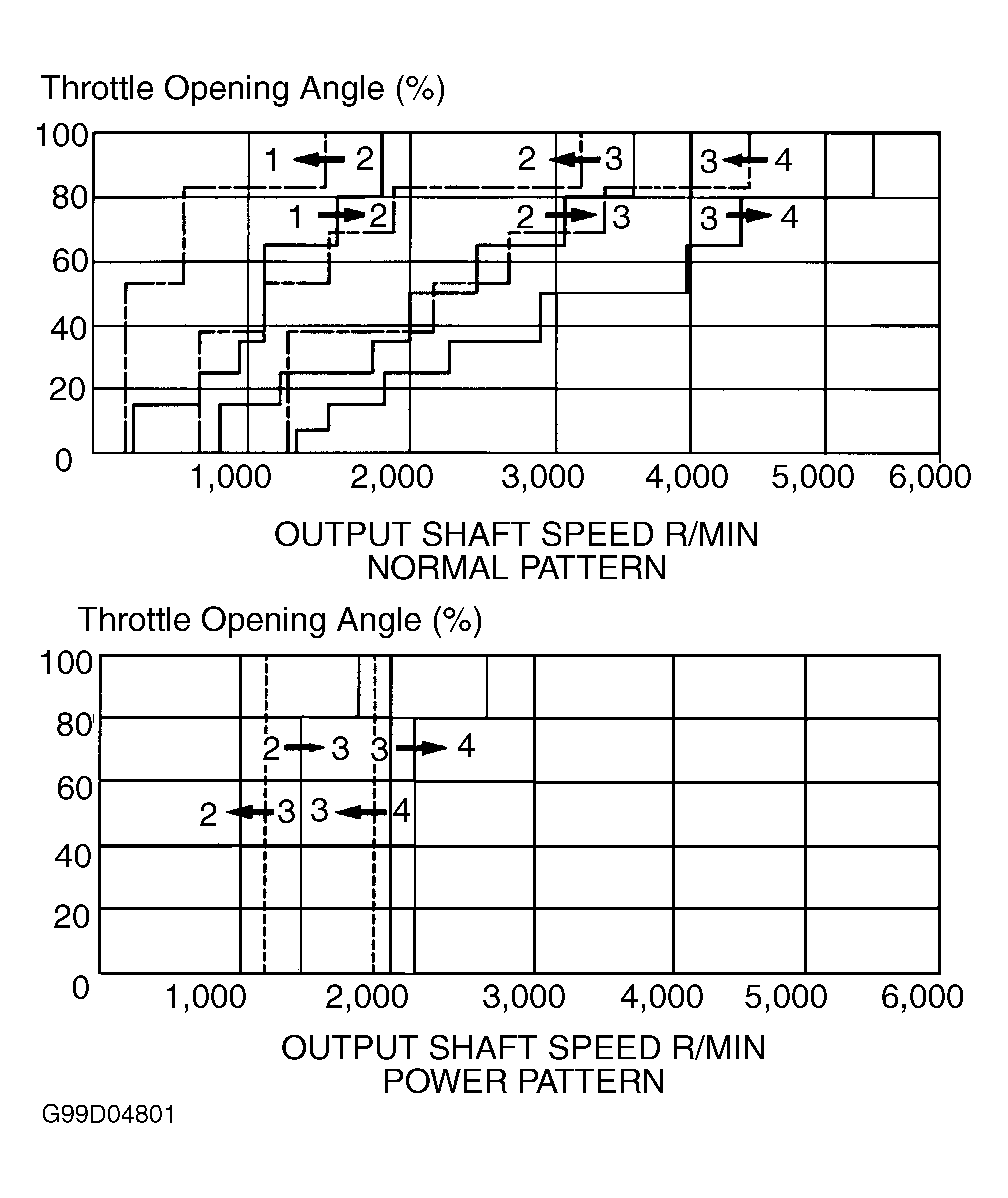

Perform road test to ensure transmission shift points are at specified engine speeds. See Figure
. Broken lines in shift point chart indicates downshifts, and solid lines indicate upshifts. If slippage occurs, determine which components are applied in each gear. See CLUTCH, BRAKE & BAND APPLICATION
table. Perform hydraulic pressure test to check transmission internal components. See HYDRAULIC PRESSURE TESTS
.
