Symptom Tests
NOTE:
To diagnose symptom, see
Fig 1
, then go to appropriate test under
CIRCUIT TESTS
.

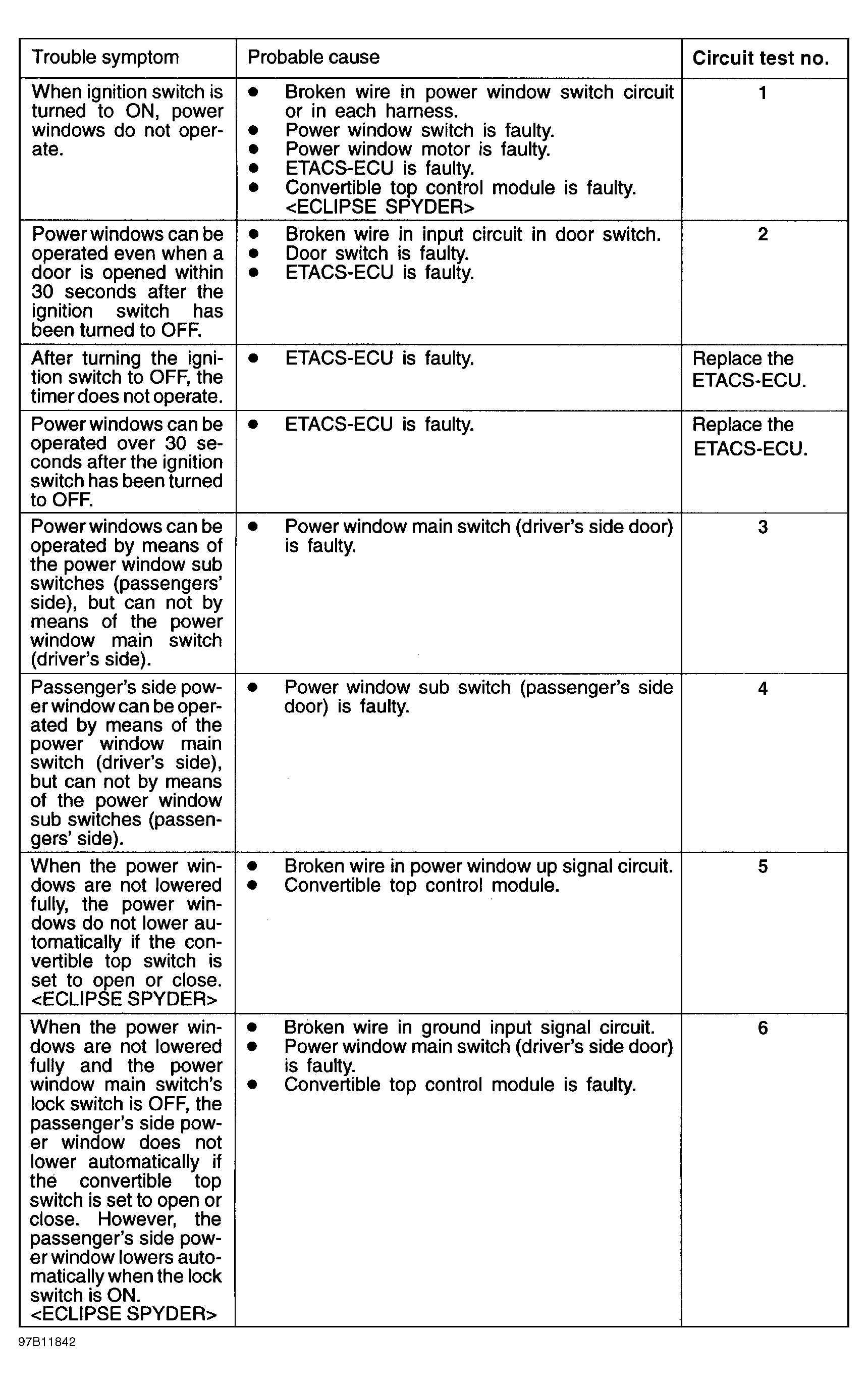

Fig 1: Symptom Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
